Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

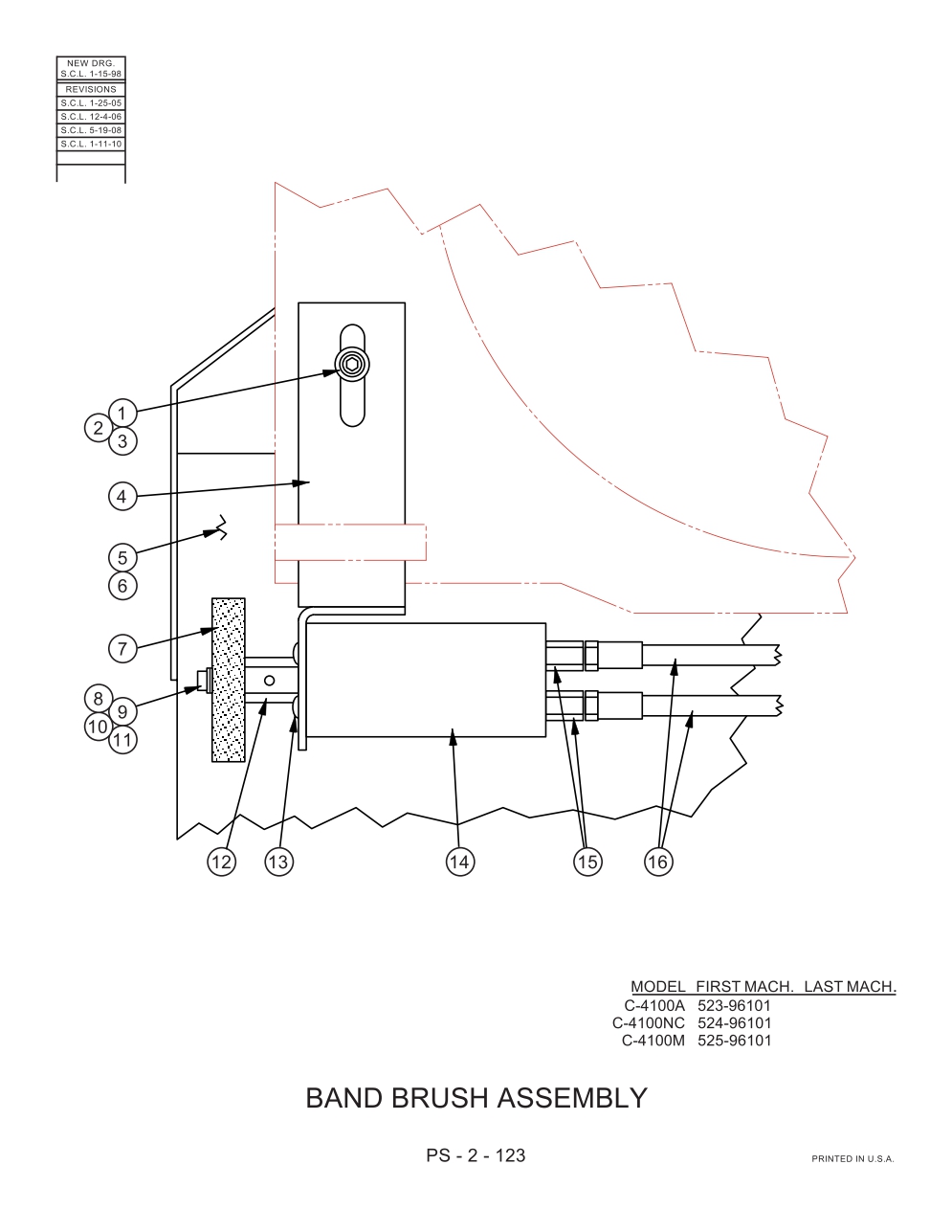

Page Code: PS-2-123

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 203133 Description: Band Brush Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 198260 Description: Screw, Soc. Hd. Cap 5/16-18NC x 1 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 2 Part Number: 199323 Description: Washer, Lock 5/16 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199262 Description: Washer, Flat 5/16 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 319081 Description: Motor Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 516306 Description: Chip Deflector Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 198366 Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 202182 Description: Wire Brush Units Per Assembly: 1 Availability: In Stock Price: $50.00
Index No Ref.: 8 Part Number: 198097 Description: Screw, Hex. Hd. Cap 1/4-28NF x 1 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 9 Part Number: 199321 Description: Washer, Lock 1/4 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 199300 Description: Washer, Flat 1/4 Wrought Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 11 Part Number: 170476 Description: Knurled Washer Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 12 Part Number: 202193 Description: Adaptor Units Per Assembly: 1 Availability: In Stock Price: $62.98
Index No Ref.: 13 Part Number: 199771 Description: Screw, Button Hd. Soc. 1/4-28NF x 1/2 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 138363 Description: Hydraulic Motor Units Per Assembly: 1 Availability: In Stock Price: $1,486.55
Index No Ref.: 15 Part Number: 212681 Description: Adaptor Units Per Assembly: 2 Availability: In Stock Price: $1.82
Index No Ref.: 16 Part Number: 321457 Description: Hydraulic Hose (#1) (Reference - Not Part of Assembly) Units Per Assembly: 2 Availability: Call For Info Price:
