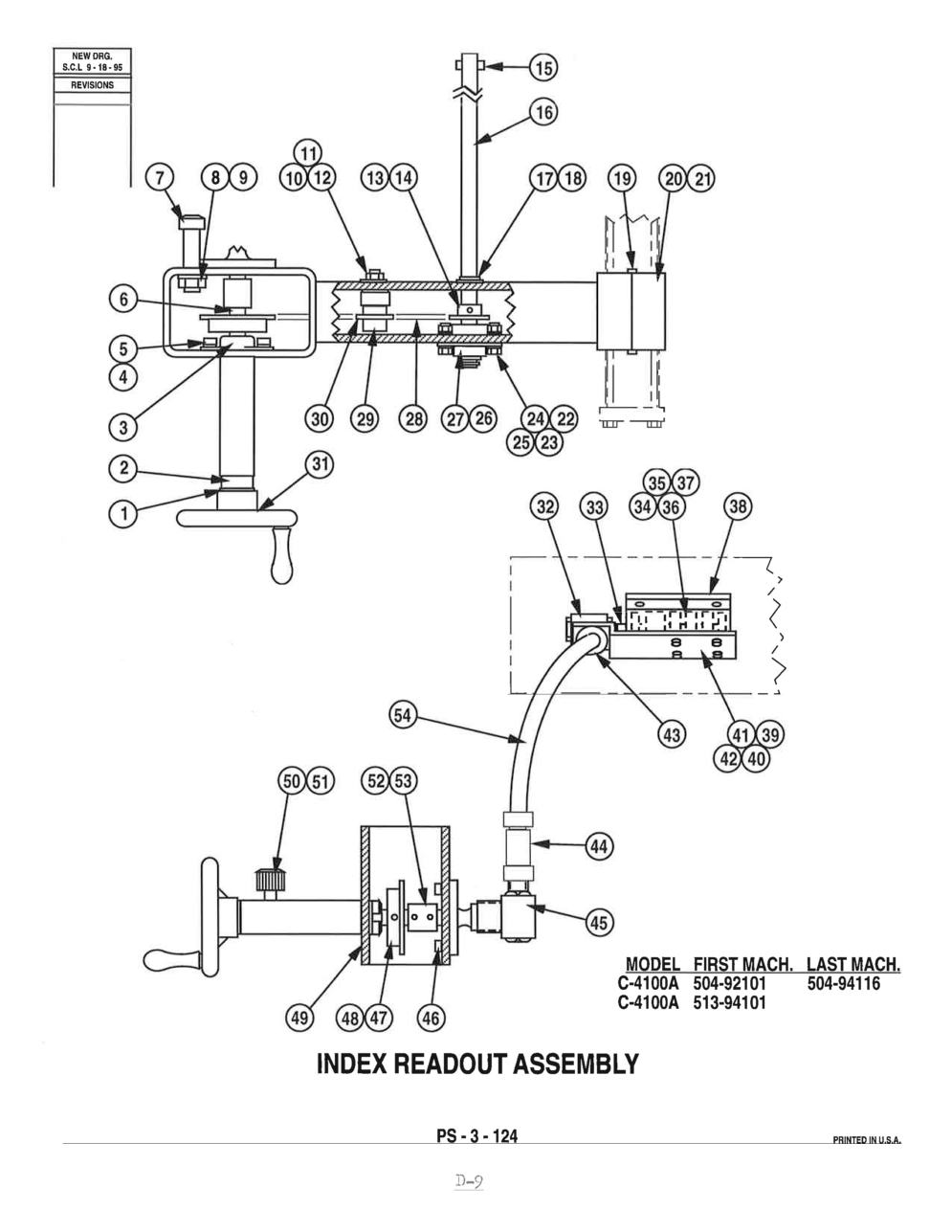

Exploded View Parts Ordering: C-4100A_504
C-4100A 504 Online Parts Manual
Serial No: 504-92101 End Date 504-94116
Page Code: PS-3-124
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 092-031350 | Description: Index Readout Assembly (Inch) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 092-031368 | Description: Index Readout Assembly (Metric) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 090-040700 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-424085 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $7.92 |
| Index No Ref.: 4 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6* | Part Number: 092-081488 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-087551 | Description: Screw, Soc. Hd. Shoulder 1/2 x 1-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-993253 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-051169 | Description: Hardened Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 12 | Part Number: 134-054104 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-428656 | Description: Sprocket (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-533190 | Description: Sprocket (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-042292 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 091-338756 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-192615 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-083923 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-334318 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-105172 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 093-192599 | Description: Clamp Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-983007 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 2-3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-980102 | Description: Screw, Hex. Hd. Cap 114-20NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 24 | Part Number: 091-992602 | Description: Washer, Flat 1/4 SA.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-991760 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-424085 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $7.92 |
| Index No Ref.: 27 | Part Number: 091-334318 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 092-001056 | Description: Roller Chain | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-763748 | Description: Screw, Soc. Hd. Shoulder 3/16-16NC (1/2x1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-428656 | Description: Sprocket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31* | Part Number: 091-367664 | Description: Handwheel (Foldaway Crank) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 092-007640 | Description: 1:1 Adaptor (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-035310 | Description: 1:1.714285714 Adaptor (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 092-012335 | Description: Flexible Coupling | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-733188 | Description: Counter | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-987396 | Description: Screw, Flat Hd. Mach. #6-32NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-733154 | Description: Window (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-735423 | Description: Window (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 090-042003 | Description: Roll Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 38 | Part Number: 094-162021 | Description: Counter Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 093-185676 | Description: Cable Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-983593 | Description: Screw, Soc. Hd. Cap #6-32NC x 5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-992735 | Description: Washer, Flat #6 S.A.E. Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-993170 | Description: Washer, Lock #6 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 090-132481 | Description: Back-Up Washer (If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 092-035328 | Description: Straight Drive (1:1.77777778)(Metric Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 092-007657 | Description: 1:5 Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 47 | Part Number: 091-428664 | Description: Sprocket (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-533190 | Description: Sprocket (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48* | Part Number: 090-042508 | Description: Roll Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 095-160578 | Description: Housing Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-764050 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 091-984286 | Description: Screw, Soc. Set 1/4-20NC x 1 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 092-007673 | Description: Coupling | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-984211 | Description: Screw, Soc. Set 1/4-20NC x 3/16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 092-031376 | Description: Cable (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-035336 | Description: Cable (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-552240 | Description: Spring Clip Connect Link | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-552257 | Description: Off-Set Link (2 Pitch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-980433 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 090-042425 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: For Machines with Cast Zinc Handwheel: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 092-026186 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-789073 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 090-042508 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Order #090-854480 for Handwheel Kit. | Units Per Assembly: | Availability: Call For Info | Price: |
