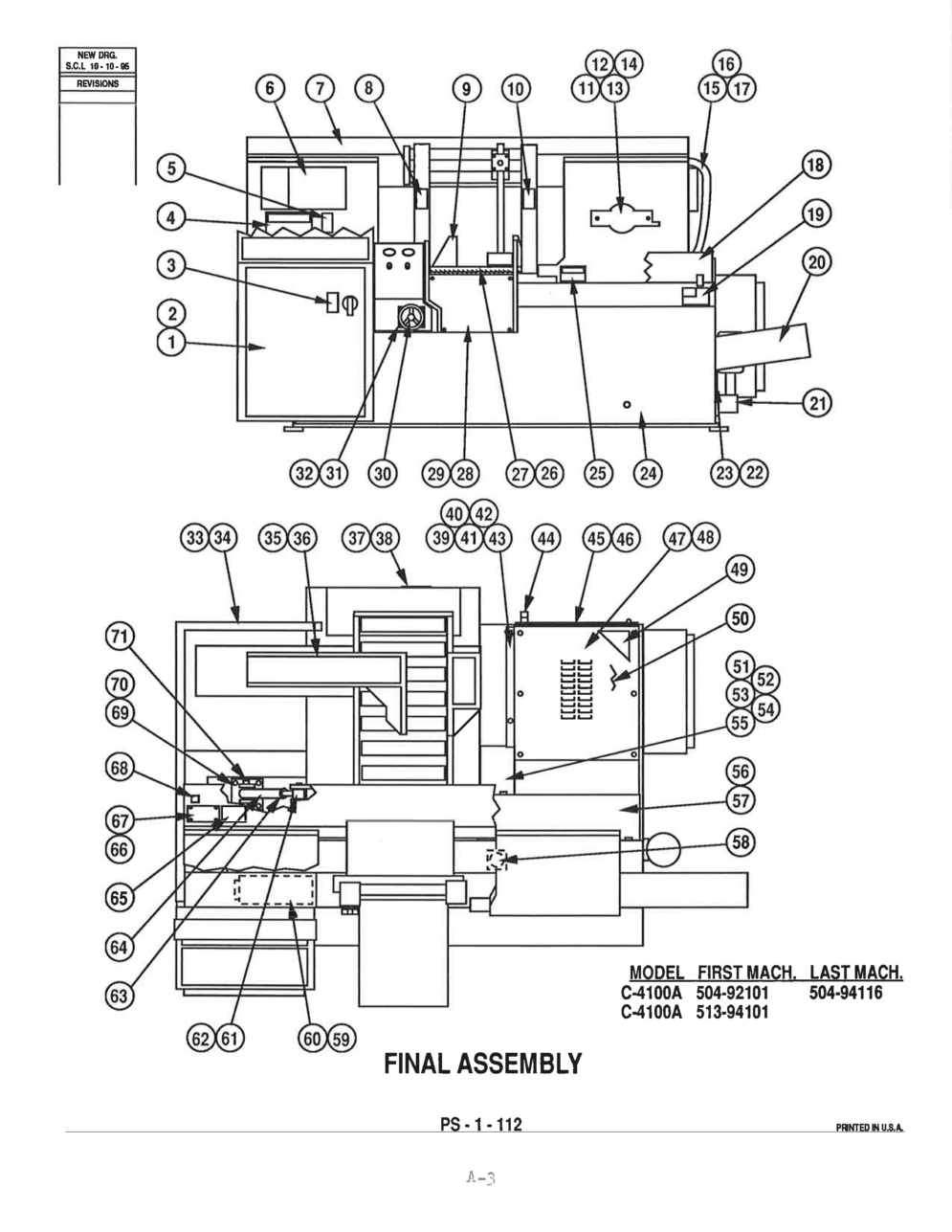

Exploded View Parts Ordering: C-4100A_504
C-4100A 504 Online Parts Manual
Serial No: 504-92101 End Date 504-94116
Page Code: PS-1-112
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 290167 | Description: Final Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 095-163044 | Description: Electrical Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 092-030865 | Description: Main Saw Electrics Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 092-014646 | Description: Label (Danger - High Voltage) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 094-044781 | Description: Escutcheon (Warning) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 5 | Part Number: 092-014679 | Description: Label (Warning - Eye Protection) | Units Per Assembly: 1 | Availability: In Stock | Price: $13.42 |
| Index No Ref.: 6 | Part Number: 094-171592 | Description: Job Selector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 092-051259 | Description: Head Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 092-014661 | Description: Label (Warning - Vise) | Units Per Assembly: 1 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 9 | Part Number: 092-027598 | Description: Fixed Vise Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 092-014653 | Description: Label (Warning - Saw Blade) | Units Per Assembly: 1 | Availability: In Stock | Price: $13.42 |
| Index No Ref.: 11 | Part Number: 094-140845 | Description: DoALL Name Plate | Units Per Assembly: 1 | Availability: In Stock | Price: $52.27 |
| Index No Ref.: 12 | Part Number: 091-997353 | Description: Screw. Flat Hd. Self-Tap *10-24NC x 1/2 (Phikte) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-993204 | Description: Washer, Lock *10 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 091-991117 | Description: Nut, Hex. *10-24NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-974162 | Description: Corrugated Loom | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-974089 | Description: Cable Tie (15") | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-974097 | Description: Cable Tie (7-1/2") | Units Per Assembly: 20 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 095-154258 | Description: Splash Guard Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 092-014695 | Description: Decal (Flag) | Units Per Assembly: 1 | Availability: In Stock | Price: $3.81 |
| Index No Ref.: 20 | Part Number: 095-151288 | Description: Chip Conveyor Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 095-166047 | Description: Coolant Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 093-171643 | Description: Cover (Coolant Pump) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-983213 | Description: Screw, Button hd. Soc. *10-24NC x 3/8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 24 | Part Number: 095-159786 | Description: Base Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 092-001791 | Description: Label (Warning - Chips) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 26 | Part Number: 092-016252 | Description: Saw Band | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 093-045250 | Description: Saw Band Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 094-166741 | Description: Discharge Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-983478 | Description: Screw, Button lid. Soc. #10-24NC x 1/2. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 092-031350 | Description: Index Readout Assembly (Inch )(See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031368 | Description: Index Readout Assembly (Metric) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 093-195766 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-983213 | Description: Screw. Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 33 | Part Number: 094-171097 | Description: Guard Rail Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-982785 | Description: Screw, Soc. hid. Cap 3/8-16NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 092-021468 | Description: Indexing Vise Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 092-014687 | Description: Label (Warning - Vise) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 093-193555 | Description: Cleanout Cove | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-994830 | Description: Screw. Self-Tapping 1/4-20NC x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 095-156998 | Description: Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-981845 | Description: Screw. Hex. Hd. Cap 3/8-16NC x 1 (Grade 5) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 43 | Part Number: 091-991265 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-727628 | Description: Door Latch | Units Per Assembly: 1 | Availability: In Stock | Price: $94.90 |
| Index No Ref.: 45 | Part Number: 095-156923 | Description: Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-994756 | Description: Screw, Hex. Hd. Self-Tap #10-24NC x 1/2 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 095-161162 | Description: Top Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-994756 | Description: Screw, Hex. lid. Self-Tap #10-24NC x 1/2 | Units Per Assembly: s | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 093-184828 | Description: Decal (Made in U.S.A.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 092-027515 | Description: Hydraulic Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 095-164852 | Description: Hose Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-983478 | Description: Screw, Button Hd. Soc. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-992586 | Description: Washer, Flat #10 S.A.E. Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 54 | Part Number: 091-993196 | Description: Washer, Lock CO Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 091-991117 | Description: Nut, Hex. #10-24NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 095-164828 | Description: Splash Pan | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-983478 | Description: Screw, Button Hd. Soc. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 092-030444 | Description: Compensator Spring Assembly (Center of Gravity) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 092-031996 | Description: Chip Drawer Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-178746 | Description: Drawer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031988 | Description: Strainer/Screen | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 092-030477 | Description: Escutcheon (Clean Weekly) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 091-793927 | Description: Spherical Rod End | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 092-030873 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 092-051614 | Description: Nut, Hex. Jam 1.25-12NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 093-188167 | Description: Head Lift Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 091-752014 | Description: Label (Band Recommendation) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 093-155380 | Description: Escutcheon (Machine Spec's.) (Inch/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-158517 | Description: Escutcheon (Machine Spec's.) (Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-993964 | Description: Screw, Rd. Hd. Drive #2 x 3/16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 092-066984 | Description: CE Label (Europa Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 092-009661 | Description: Swivel Eye Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 091-982934 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 091-752584 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 092-014554 | Description: Shipping Bracket Weldment (Head) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-027606 | Description: Shipping Bracket Weldment (Index Vise) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-068723 | Description: Instruction Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-010305 | Description: Transmission Fluid (12 Gallons) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-448183 | Description: DoALL Cutting Fluid | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 072-031198 | Description: Instruction Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 072-031206 | Description: Pans Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 072-030687 | Description: Field Alignment and Adjustment Summary | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031210 | Description: Box of Extra Parts | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-424904 | Description: Combination Shovel-Rake | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-124205 | Description: Foot Casting | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-984690 | Description: Screw, Soc. Set 1/2-13NC x 1-1/2 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-991323 | Description: Nut, Hex. Jam 1/2-13NC | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 092-027531 | Description: Toe Clamp Installation Kk (Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-161164 | Description: Hook | Units Per Assembly: 1 | Availability: Call For Info | Price: |
