Exploded View Parts Ordering: C-305NC_581
C-305NC 581 Online Parts Manual
Serial No: 581-06101 End Date 581-12131
Page Code: PS-8-333
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

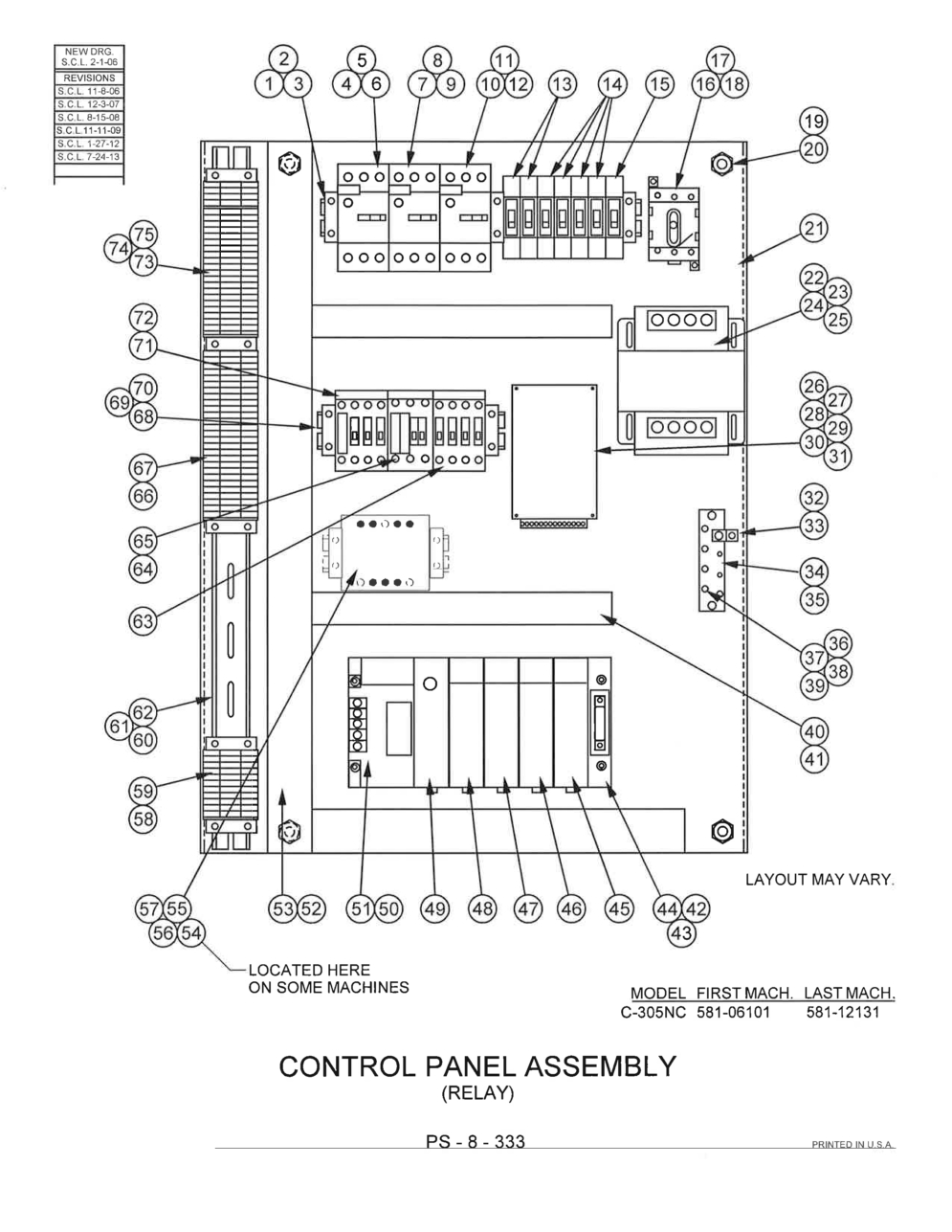

| Index No Ref.: Ref. | Part Number: | Description: Control Panel Assembly (Relay) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 2 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5-0.8 x 8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 220648 | Description: Motor Starter Protector (208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 220646 | Description: Motor Starter Protector (400V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 220654 | Description: Auxiliary Contact (1-NO) | Units Per Assembly: 1 | Availability: In Stock | Price: $20.99 |
| Index No Ref.: 6 | Part Number: 220655 | Description: Auxiliary Contact (1-NC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 220651 | Description: Motor Starter Protector (208V, 220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 220650 | Description: Motor Starter (230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 220648 | Description: Motor Starter Protector (400V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 220654 | Description: Auxiliary Contact (1-NO) | Units Per Assembly: 1 | Availability: In Stock | Price: $20.99 |
| Index No Ref.: 9 | Part Number: 220655 | Description: Auxiliary Contact (1-NC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 220643 | Description: Motor Starter Protector (208V) | Units Per Assembly: 1 | Availability: In Stock | Price: $256.10 |
| Index No Ref.: | Part Number: 220645 | Description: Motor Starter Protector (220V) | Units Per Assembly: 1 | Availability: In Stock | Price: $264.50 |
| Index No Ref.: | Part Number: 220642 | Description: Motor Starter Protector (230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 220644 | Description: Motor Starter Protector (400V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 220641 | Description: Motor Starter Protector (460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 220654 | Description: Auxiliary Contact (1-NO) | Units Per Assembly: 1 | Availability: In Stock | Price: $20.99 |
| Index No Ref.: 12 | Part Number: 220655 | Description: Auxiliary Contact (1-NC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 420358 | Description: Circuit Breaker (4, 5 CB) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 420356 | Description: Circuit Breaker (6, 7, 8, 9 CB) | Units Per Assembly: 4 | Availability: In Stock | Price: $67.17 |
| Index No Ref.: 15 | Part Number: 420358 | Description: Circuit Breaker (10 CB) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16** | Part Number: 1007435 | Description: Disconnect Switch | Units Per Assembly: 1 | Availability: In Stock | Price: $140.81 |
| Index No Ref.: 17** | Part Number: 1007440 | Description: Disconnect Switch Shaft | Units Per Assembly: 1 | Availability: In Stock | Price: $49.02 |
| Index No Ref.: 18** | Part Number: 1007439 | Description: Disconnect Switch Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $160.00 |
| Index No Ref.: 19 | Part Number: 199126 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199325 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 519659 | Description: Control Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 320113 | Description: Transformer (208V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 323469 | Description: Transformer (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320114 | Description: Transformer (230V, 460V, 575V) | Units Per Assembly: 1 | Availability: In Stock | Price: $393.93 |
| Index No Ref.: | Part Number: 217753 | Description: Transformer (400V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 198962 | Description: Screw, Pan Hd. Slotted M6-1.0 x 16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 26 | Part Number: 224845 | Description: Proportional Valve Control Board | Units Per Assembly: 1 | Availability: In Stock | Price: $2,764.99 |
| Index No Ref.: 27 | Part Number: 202922 | Description: Jumper Bar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 198831 | Description: Screw, Rd. Hd. Mach. #4-40NC x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 199255 | Description: Washer, Flat #4 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 199315 | Description: Washer, Lock #4 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 203358 | Description: Stand-Off | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 141639 | Description: Wire Terminal Lug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 198960 | Description: Screw, Pan Hd. Slotted M6-1.0 x 10 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 320740 | Description: Grounding Bus | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 198962 | Description: Screw, Pan Hd. Slotted M6-1.0 x 16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 215202 | Description: Screw, Pan Hd. Slotted M5-0.8 x 6 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 38 | Part Number: 199311 | Description: Washer, Lock M6 Shakeproof | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 199355 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 197208 | Description: 1" Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 197210 | Description: Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 202846 | Description: PLC Base | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 199054 | Description: Screw, Pan Hd. Slotted M4-0.7 x 8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 201322 | Description: PLC Relay Output Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 206594 | Description: PLC Input Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 201323 | Description: PLC Analog Output Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 201324 | Description: PLC High Speed Counter Input Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 215589 | Description: Programmed PLC Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 201320 | Description: PLC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 212460 | Description: Battery (For Power Supply) | Units Per Assembly: 1 | Availability: In Stock | Price: $222.19 |
| Index No Ref.: 52 | Part Number: 197429 | Description: 1-1/2" Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 197430 | Description: 1-1/2" Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 54* | Part Number: 322568 | Description: Power Supply (24 VDC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55* | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 56* | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5-0.8 x 8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 57* | Part Number: 200618 | Description: End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 200615 | Description: Terminal Block (Gray) | Units Per Assembly: 11 | Availability: In Stock | Price: $2.66 |
| Index No Ref.: 59 | Part Number: 200617 | Description: End Section | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 61 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5-0.8 x 8 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 207206 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 207209 | Description: Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $209.06 |
| Index No Ref.: 65 | Part Number: 207219 | Description: Auxilliary Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $18.76 |
| Index No Ref.: 66 | Part Number: 209033 | Description: Terminal Block (Blue) | Units Per Assembly: 27 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 209034 | Description: End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 69 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5-0.8 x 8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 207206 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 207219 | Description: Auxilliary Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $18.76 |
| Index No Ref.: 73 | Part Number: 200615 | Description: Terminal Block (Gray) | Units Per Assembly: 25 | Availability: In Stock | Price: $2.66 |
| Index No Ref.: 74 | Part Number: 200617 | Description: End Section | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 75 | Part Number: 218766 | Description: Terminal Marker Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 1003427 | Description: U.L. Label | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197420 | Description: Wire, #10 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197421 | Description: Wire, #10 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197341 | Description: Wire, #12 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197339 | Description: Wire, #14 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197343 | Description: Wire, #16 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197325 | Description: Wire, #16 White (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197197 | Description: Wire, #16 Red (19 Strand) | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.10 |
| Index No Ref.: | Part Number: 197205 | Description: Wire, #18 Blue (16 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 218829 | Description: Heat-Shrink Tubing 1/4" | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197345 | Description: Shielded Cable (#20-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $7.60 |
| Index No Ref.: | Part Number: 197367 | Description: Shielded Cable (#24-6 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 214182 | Description: Hour Meter (Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 219479 | Description: Wire Connector | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 205642 | Description: Motor Terminal Block (50 HZ Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 203722 | Description: Ground I.D. Shrink Tube (50 Hz Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 176888 | Description: Cable Tie Mount | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: These Are Located Here On Some Machines See Control Console Assembly For Current Location. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: To Replace: Before Serial #581-09130, Order Disconnect Switch Service Kit - #1007554 Otherwise, Use Part Numbers Listed | Units Per Assembly: | Availability: Call For Info | Price: |
