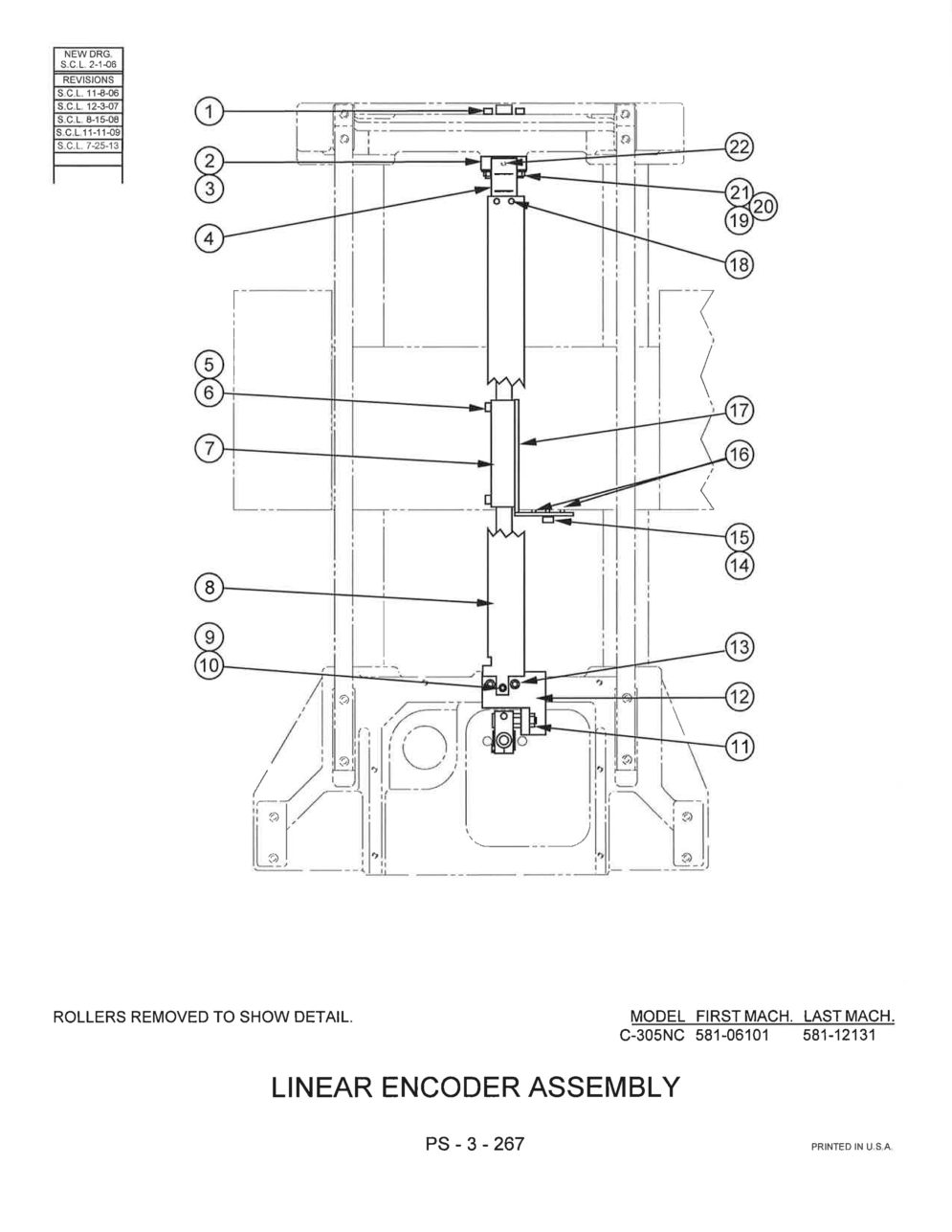

Exploded View Parts Ordering: C-305NC_581
C-305NC 581 Online Parts Manual
Serial No: 581-06101 End Date 581-12131
Page Code: PS-3-267
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 517984 | Description: Linear Encoder Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 199997 | Description: Screw, Soc. Hd. Cap M6-1.0 x 80 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 321259 | Description: Mounting Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 199041 | Description: Screw, Soc. Hd. Cap M5-0.8 x 20 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 209012 | Description: Mounting Tab | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5-0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 202383 | Description: Loctite Adhesive (#242-31 Threadlock) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 521023 | Description: Linear Encoder | Units Per Assembly: 1 | Availability: In Stock | Price: $1,788.00 |
| Index No Ref.: 8 | Part Number: 418488 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199444 | Description: Screw, Soc. Hd. Cap M4-0.7 x 10 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 199248 | Description: Washer, Flat M4 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 199123 | Description: Nut, Hex. Jam 5/16-18NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 12 | Part Number: 321164 | Description: Mounting Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 199898 | Description: Screw, Soc. Hd. Cap M5-0.8 x 16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199049 | Description: Screw, Soc. Hd. Cap M6-1.0 x 18 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16 | Part Number: 199913 | Description: Screw, Soc. Set M5-0.8 x 10 (Flat Point) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 321256 | Description: Driver Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199728 | Description: Screw, Button Hd. Soc. M4-0.7 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: 199232 | Description: Nut, Hex. Jam M6-1.0 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 22 | Part Number: 199444 | Description: Screw, Soc. Hd. Cap M4-0.7 x 10 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
