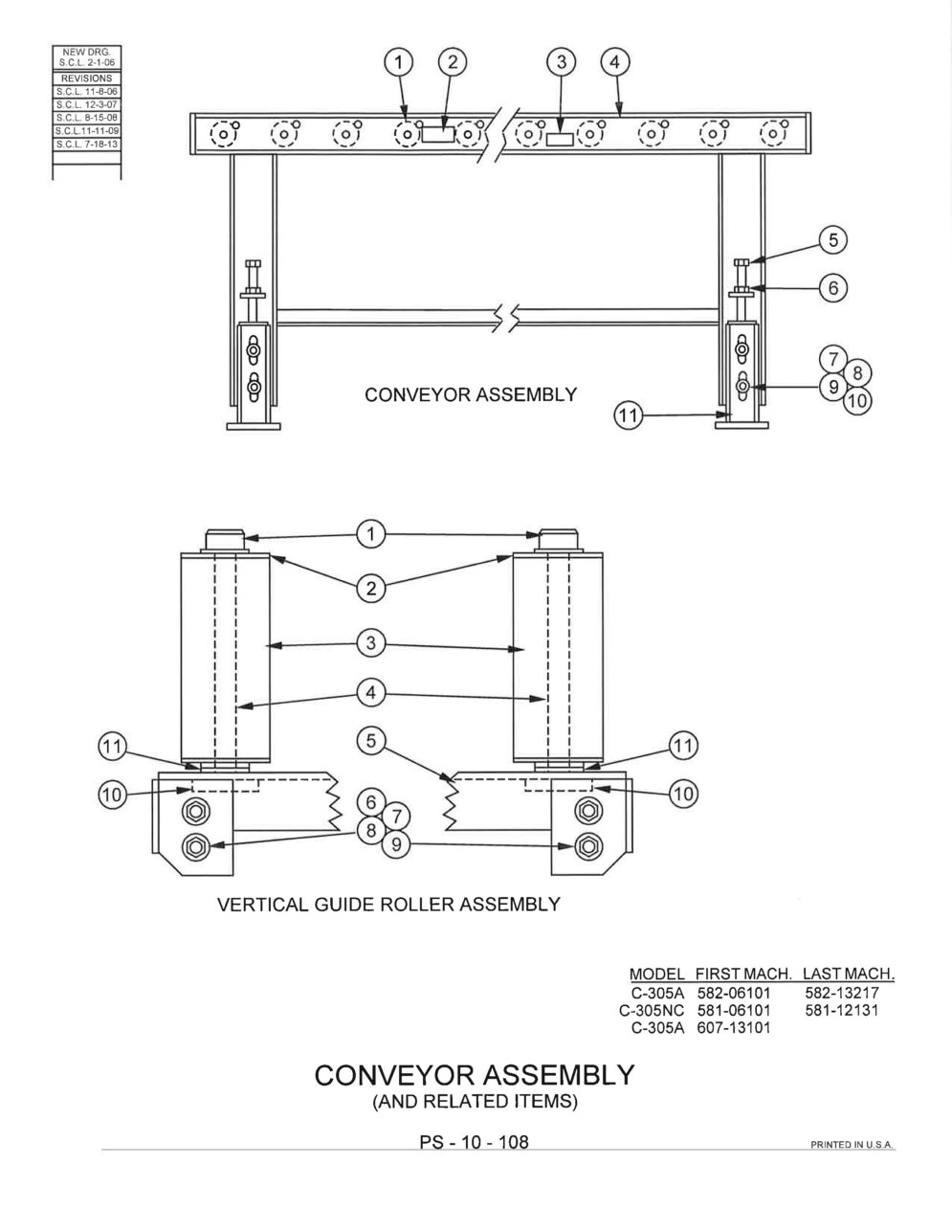

Exploded View Parts Ordering: C-305NC_581
C-305NC 581 Online Parts Manual
Serial No: 581-06101 End Date 581-12131
Page Code: PS-10-108
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 202774 | Description: 5' Conveyor Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 202785 | Description: Roller | Units Per Assembly: 5 | Availability: In Stock | Price: $71.66 |
| Index No Ref.: 2 | Part Number: 203025 | Description: Label (DoALL Logo) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 203035 | Description: Label (Conveyor Capacity) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 516104 | Description: Frame Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 199876 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 6 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199131 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 198068 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1-3/4 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199304 | Description: Washer, Flat 1/2 Wrought | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199327 | Description: Washer, Lock 1/2 Std | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 199131 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 417100 | Description: Foot Weldment | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 202780 | Description: 10' Conveyor Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 202785 | Description: Roller | Units Per Assembly: 10 | Availability: In Stock | Price: $71.66 |
| Index No Ref.: 2 | Part Number: 203025 | Description: Label (DoALL Logo) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 203035 | Description: Label (Conveyor Capacity) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 516103 | Description: Frame Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 199876 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 6 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199131 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 198068 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1-3/4 | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199304 | Description: Washer, Flat 1/2 Wrought | Units Per Assembly: 24 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199327 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 12 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 199131 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 417100 | Description: Foot Weldment | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 516255 | Description: Vertical Guide Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 199235 | Description: Screw, Hex. Hd. Cap 5/8-11NC x 8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 850900 | Description: Roller End Bearing | Units Per Assembly: 4 | Availability: In Stock | Price: $23.62 |
| Index No Ref.: 3 | Part Number: 206750 | Description: Roller | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 206861 | Description: Tube Sleeve | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 516028 | Description: Base Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199975 | Description: Screw, Hex. Hd. Cap M10-1.5 x 35 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 199346 | Description: Washer, Lock M10 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 198976 | Description: Washer, Flat M10 | Units Per Assembly: 16 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 199939 | Description: Nut, Hex. M10-1.5 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 202872 | Description: Nut | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 199267 | Description: Washer, Flat 5/8 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
