Exploded View Parts Ordering: C-305NC_540

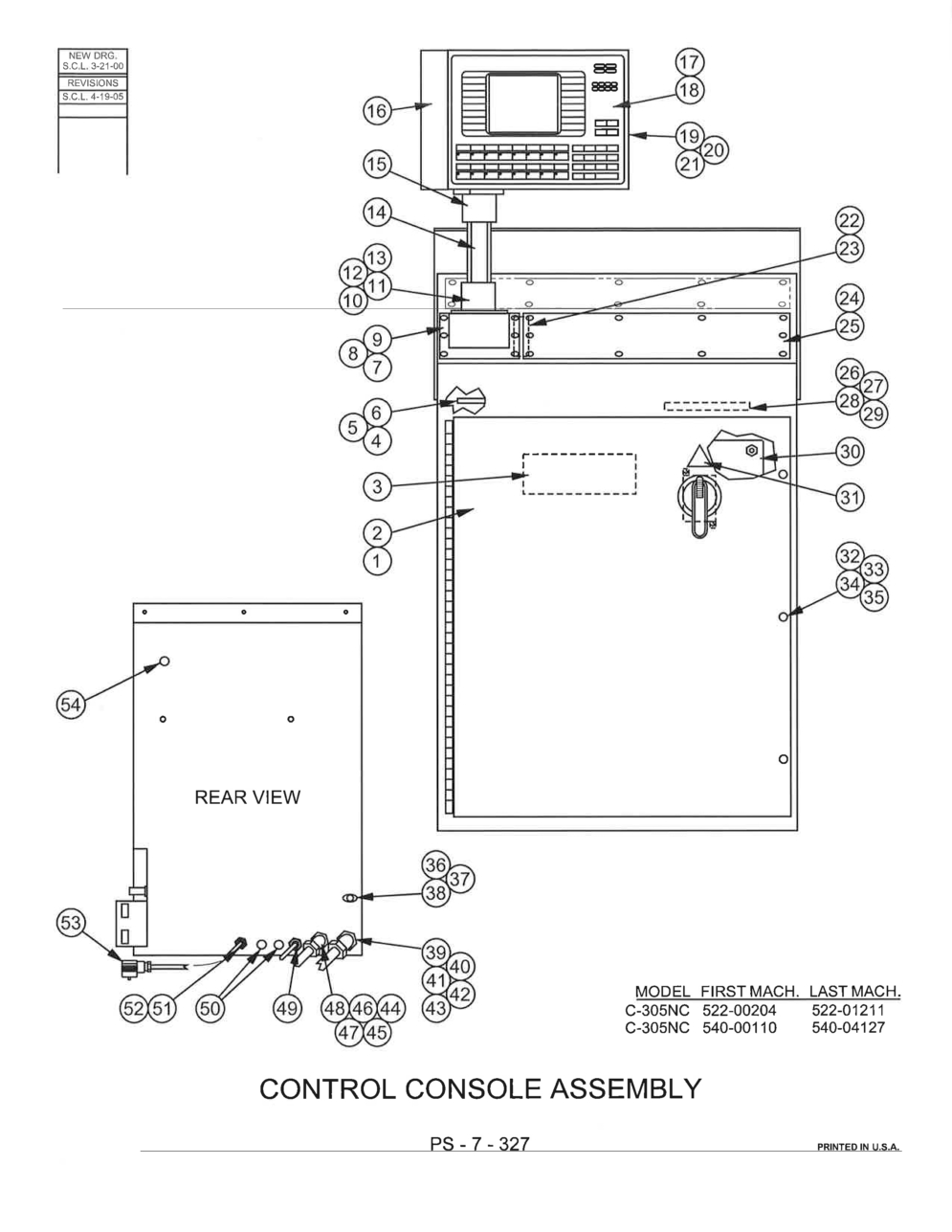

C-305NC 540 Online Parts Manual
Serial No: 540-98101 End Date 540-04127
Page Code: PS-7-327
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Control Console Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 519686 | Description: Control Console Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 203925 | Description: Gasket Strip | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.20 |
| Index No Ref.: 3 | Part Number: 324365 | Description: Fuse/Overload Schedule | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 323676 | Description: Removable Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 199969 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 197022 | Description: Nylon Edging | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 7 | Part Number: 321856 | Description: Mounting Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 215267 | Description: Gasket Strip | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 6 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 10 | Part Number: 209047 | Description: Base Bracket/Wall Flange | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 199903 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 20 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 12 | Part Number: 199968 | Description: Washer, Lock M8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 199941 | Description: Nut, Hex. M8 x 1.25 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 209052 | Description: Column | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 208894 | Description: Flange Coupling | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 517613 | Description: Box Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 216818 | Description: Programmed Workstation Sub-Assembly (English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 216819 | Description: Programmed Workstation Sub-Assembly (Espanol) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 212461 | Description: Battery (3V Replacement) | Units Per Assembly: 1 | Availability: In Stock | Price: $14.79 |
| Index No Ref.: | Part Number: 216909 | Description: Label Insert (English) (Top Row) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 216910 | Description: Label Insert (Espanol) (Top Row) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 213710 | Description: Label Insert (English) (Bottom Row) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 214658 | Description: Label Insert (Espanol) (Bottom Row) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 209297 | Description: Cable Assembly (15 Pin D-Sub) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 418151 | Description: Display Bezel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 215267 | Description: Gasket Strip | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 8 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 22 | Part Number: 215194 | Description: Display Mount Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 199526 | Description: Screw, Flat Hd. Soc. M4 x 0.7 x 10 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: | Description: Pushbutton Panel Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 10 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 26 | Part Number: 208483 | Description: Interface Card (Linear Encoder) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 198831 | Description: Screw, Rd. Hd. Mach. #4-40NC x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 199315 | Description: Washer, Lock #4 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 203358 | Description: Stand-Off | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: | Description: Control Panel Assembly (Relay) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 176528 | Description: Escutcheon (Electrical Hazard) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.47 |
| Index No Ref.: 32 | Part Number: 204151 | Description: Retainer | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 207523 | Description: Screw, Hex. Hd. Slotted M6 x 1.0 x 20 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 204153 | Description: Nylon Washer | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 207525 | Description: Nut, Rivet M6 x 1.0 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 208484 | Description: Interface Cable | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 198831 | Description: Screw, Rd. Hd. Mach. #4-40NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 199315 | Description: Washer, Lock #4 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 014691 | Description: 45 Degree Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 014694 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 015823 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 015752 | Description: Insulated Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 197160 | Description: Sealtite Conduit 1-1/4 I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 014688 | Description: 45 Degree Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 014687 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 015618 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 015751 | Description: Insulated Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 197159 | Description: Sealtite Conduit 1" I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 201696 | Description: Cord Grip Connector (.394-.551) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 135106 | Description: Hole Seal | Units Per Assembly: 2 | Availability: In Stock | Price: $15.31 |
| Index No Ref.: 51 | Part Number: 201688 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 52 | Part Number: 197332 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 53 | Part Number: 201269 | Description: Solenoid Plug Connector Kit | Units Per Assembly: 1 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 54 | Part Number: 135106 | Description: Hole Seal | Units Per Assembly: 1 | Availability: In Stock | Price: $15.31 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 007635 | Description: Wire Terminal Ring #10 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197343 | Description: Wire, #16 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197205 | Description: Wire, #18 Blue (16 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197436 | Description: Electrical Cord (#18-8 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $8.40 |
| Index No Ref.: | Part Number: 203723 | Description: Ground I.D. Shrink Tube (50 Hz Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
