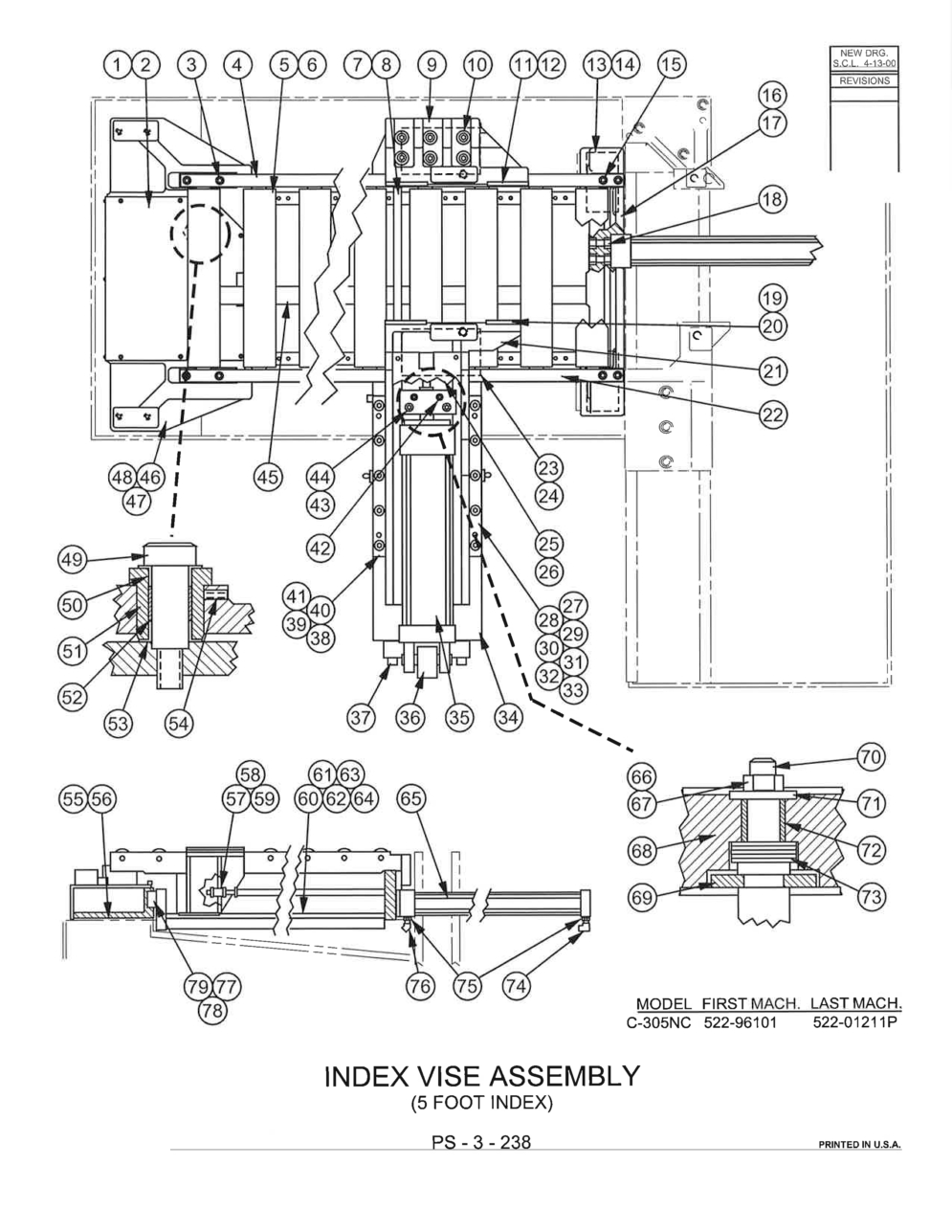

Exploded View Parts Ordering: C-305NC_522
C-305NC 522 Online Parts Manual
Serial No: 522-96101 End Date 522-01211
Page Code: PS-3-238
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 216522 | Description: Index Vise Assembly (5" Index Option) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 517983 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 9 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 3 | Part Number: 199847 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 70 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 516925 | Description: L.H. Rail | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 319985 | Description: Roller | Units Per Assembly: 19 | Availability: In Stock | Price: $172.86 |
| Index No Ref.: 6 | Part Number: 205182 | Description: Sleeve Bearing | Units Per Assembly: 38 | Availability: In Stock | Price: $8.66 |
| Index No Ref.: 7 | Part Number: 319988 | Description: Tie Bar | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199680 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 30 | Units Per Assembly: 10 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 517152 | Description: Fixed Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 199978 | Description: Screw, Soc. Hd. Cap M16 x 2.0 x 55 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 319681 | Description: Wear Plate (Steel) | Units Per Assembly: 2 | Availability: In Stock | Price: $117.81 |
| Index No Ref.: | Part Number: 320276 | Description: Wear Plate (Urethane) | Units Per Assembly: 2 | Availability: In Stock | Price: $514.99 |
| Index No Ref.: | Part Number: 321735 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199905 | Description: Screw, Flat Hd. Soc. M6 x 1.0 x 16 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 216286 | Description: Bearing Pad | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 4 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 15 | Part Number: 199847 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 70 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 520129 | Description: Crosshead | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 205184 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199124 | Description: Nut, Hex. Jam 5/16-24NF | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: 319681 | Description: Wear Plate (Steel) | Units Per Assembly: 2 | Availability: In Stock | Price: $117.81 |
| Index No Ref.: | Part Number: 320276 | Description: Wear Plate (Urethane) | Units Per Assembly: 2 | Availability: In Stock | Price: $514.99 |
| Index No Ref.: | Part Number: 321735 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199905 | Description: Screw, Flat Hd. Soc. M6 x 1.0 x 16 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 517153 | Description: Movable Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 516926 | Description: R.H. Rail | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 319987 | Description: Bearing Pad | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199982 | Description: Screw, Flat Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 418654 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 27 | Part Number: 418482 | Description: Gib | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 199919 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 35 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 199938 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 30 | Part Number: 321280 | Description: Guide Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 108349 | Description: Screw, Soc. Set 5/16-18NC x 1 (Self-Locking) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 35-001775 | Description: Grease Fitting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 209126 | Description: Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 517447 | Description: Index Vise Base Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 319925 | Description: Index Vise Clamp Cylinder | Units Per Assembly: 1 | Availability: In Stock | Price: $4,428.23 |
| Index No Ref.: 36 | Part Number: 417912 | Description: Lug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 199918 | Description: Screw, Soc. Hd. Cap M12 x 1.75 x 45 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 417501 | Description: Gib | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 199919 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 35 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 199938 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 35-009473 | Description: Grease Fitting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 205187 | Description: Screw, Soc. Hd. Shoulder M10 x 1.5 x 70 (12 mm) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 199934 | Description: Screw, Soc. Hd. Cap M12 x 1.75 x 80 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 205188 | Description: Washer, Lock M12 Hi-Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 518157 | Description: Linear Encoder Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 518115 | Description: Yoke | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 199249 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 120 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 199939 | Description: Nut, Hex. M10 x 1.5 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 49 | Part Number: 202607 | Description: Screw, Soc. Hd. Shoulder 7/8-9NC x 2-3/4 (1-7/32 Dia) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 202606 | Description: DU Thrust Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 319260 | Description: Eccentric Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 202605 | Description: DU Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 202606 | Description: DU Thrust Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 205186 | Description: Screw, Soc. Set M8 x 1.25 x 20 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 202400 | Description: Bearing Pad | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 4 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 57 | Part Number: 176247 | Description: Collar | Units Per Assembly: 2 | Availability: In Stock | Price: $12.60 |
| Index No Ref.: 58 | Part Number: 200929 | Description: Stud | Units Per Assembly: 1 | Availability: In Stock | Price: $77.94 |
| Index No Ref.: 59 | Part Number: 199189 | Description: Nut, Hex. Jam 3/4-16NF | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 60 | Part Number: 520128 | Description: Indexer Carriage Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 417615 | Description: Bearing and Track Assembly | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 199662 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 25 | Units Per Assembly: 58 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 63 | Part Number: 205403 | Description: Plastic Cap | Units Per Assembly: 58 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 199725 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 100 | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 320050 | Description: Index Feed Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 199229 | Description: Self-Locking Nut 1/2-13NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 206693 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 417602 | Description: Bearing Block | Units Per Assembly: 1 | Availability: In Stock | Price: $659.15 |
| Index No Ref.: 69 | Part Number: 178929 | Description: Actuator Disk | Units Per Assembly: 1 | Availability: In Stock | Price: $30.86 |
| Index No Ref.: 70 | Part Number: 317883 | Description: Shaft Extension | Units Per Assembly: 1 | Availability: In Stock | Price: $71.04 |
| Index No Ref.: 71 | Part Number: 199266 | Description: Washer, Flat 1/2 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 72 | Part Number: 5123 | Description: Sleeve Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.74 |
| Index No Ref.: 73 | Part Number: 124654 | Description: Belleville Washer | Units Per Assembly: 5 | Availability: In Stock | Price: $4.27 |
| Index No Ref.: 74 | Part Number: 8254 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 75 | Part Number: 5-011517 | Description: Reducer Bushing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 76 | Part Number: 121933 | Description: 45 Degree Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $3.25 |
| Index No Ref.: 77 | Part Number: 320083 | Description: Stub Shaft | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 78 | Part Number: 199848 | Description: Screw, Soc. Hd. Cap M20 x 2.5 x 40 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 79 | Part Number: 199932 | Description: Screw, Soc. Hd. Cap M12 x 1.75 x 100 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 320733 | Description: Cover (Index Vise Weldment) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
