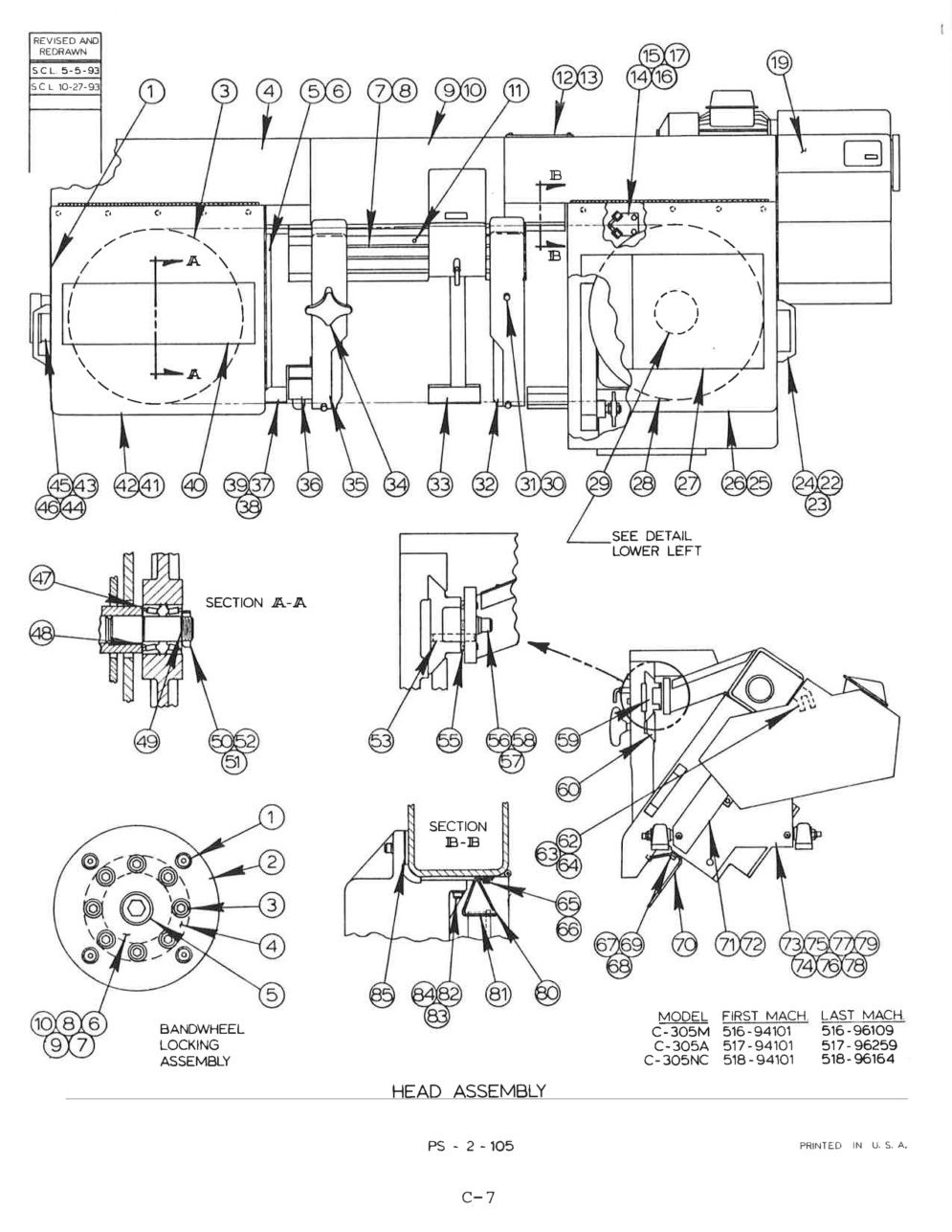

Exploded View Parts Ordering: C-305NC_518
C-305NC 518 Online Parts Manual
Serial No: 518-9410 End Date 518-96164
Page Code: PS-2-105
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 092-052570 | Description: Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-874105 | Description: Edge Trim (Black) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 094-152113 | Description: Bandwheel Sub-Assy (Idler) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-119293 | Description: Bandwheel (Idler) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-269068 | Description: Roller Bearing Cup | Units Per Assembly: 2 | Availability: In Stock | Price: $31.79 |
| Index No Ref.: | Part Number: 090-030354 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $3.47 |
| Index No Ref.: 4 | Part Number: 095-073904 | Description: Head Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 094-169968 | Description: Drip Lip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 093-168037 | Description: Scale | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-993964 | Description: Screw, Rd. Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 095-166518 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 090-042557 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-158517 | Description: Escutcheon (Machine Spec's.) (Inch/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-158517 | Description: Escutcheon (Machine Spec's.) (Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-993964 | Description: Screw, Rd. Hd. Drive #2 x 3/16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-166844 | Description: Wire Brush | Units Per Assembly: 2 | Availability: In Stock | Price: $6.98 |
| Index No Ref.: 15 | Part Number: 093-203313 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-983668 | Description: Screw, Flat Hd. Soc. 1/4-20NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: | Description: Drive Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-719120 | Description: Pull Handle | Units Per Assembly: 2 | Availability: In Stock | Price: $16.09 |
| Index No Ref.: 23 | Part Number: 091-990200 | Description: Screw, Truss Hd. Mach. 1/4-2ONC x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-991646 | Description: Nut, Hex. #8-32NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 094-170438 | Description: R.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 27 | Part Number: 094-169018 | Description: Job Selector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 095-160602 | Description: Bandwheel (Driver) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 094-172491 | Description: Bandwheel Locking Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-982991 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 2-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 32 | Part Number: 094-156262 | Description: R.H. Saw Guide Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 095-166526 | Description: Head Raise Limit Mechanism Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 093-202927 | Description: Handwheel | Units Per Assembly: 1 | Availability: In Stock | Price: $73.73 |
| Index No Ref.: 35 | Part Number: 094-156254 | Description: L.H. Saw Guide Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 093-129302 | Description: Band Anti-Squeal Bearing Assy. (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 093-191625 | Description: Blade Guard Weldment (L.H.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 39 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 40 | Part Number: 094-161635 | Description: Escutcheon (DoALL) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.47 |
| Index No Ref.: 41 | Part Number: 094-170636 | Description: L.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 43 | Part Number: 095-154845 | Description: Band Tension Slide Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 135-058287 | Description: Hardened Washer | Units Per Assembly: 3 | Availability: In Stock | Price: $6.52 |
| Index No Ref.: 45 | Part Number: 091-983015 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 3 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-753640 | Description: Shield | Units Per Assembly: 2 | Availability: In Stock | Price: $43.69 |
| Index No Ref.: 48 | Part Number: 091-269050 | Description: Roller Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $50.95 |
| Index No Ref.: 49 | Part Number: 091-753657 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 114-065873 | Description: Bearing Locknut | Units Per Assembly: 1 | Availability: In Stock | Price: $61.95 |
| Index No Ref.: 51 | Part Number: 114-065865 | Description: Bearing Lockwasher | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 52 | Part Number: 091-433912 | Description: Grease (Union 76 UNNOBA EP 2) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 090-139973 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $2.77 |
| Index No Ref.: 55 | Part Number: 091-764514 | Description: Screw, Soc. Set 1/2-20NF x 7/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 091-982975 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 3 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 58 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 095-136438 | Description: Slide Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 090-098674 | Description: Gib | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 094-155835 | Description: Lug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-982959 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 090-042896 | Description: Roll Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 090-980003 | Description: Screw, Hex. Hd. Cap #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 091-993559 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 090-122359 | Description: Grommet | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 69 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 70 | Part Number: 094-135480 | Description: Chip Deflector Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 094-170115 | Description: Splash Shield | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 091-990051 | Description: Screw, Truss Hd. Mach. #6-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 095-168860 | Description: Transmission Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 74 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 75 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 76 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 77 | Part Number: 114-004732 | Description: Dowel Pin | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 78 | Part Number: 091-985267 | Description: Screw, Soc. Set 1/2-20NF x 1 (Oval Pt.) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 79 | Part Number: 091-991331 | Description: Nut, Hex. 1/2-20NF | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 80 | Part Number: 094-154952 | Description: Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 81 | Part Number: 094-154960 | Description: Guard (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 82 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 83 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 84 | Part Number: 091-992694 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 85 | Part Number: 091-336750 | Description: Shim (.0299) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 094-172491 | Description: Bandwheel Locking Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-997601 | Description: Screw, Soc. Hd. Cap 5/16-18NC x 3/4 (Low Head) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 094-172509 | Description: Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-999268 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 25 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 092-025907 | Description: Locking Assembly (Includes Screws - Item 3) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-996991 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/4 (Flat Pt.) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 091-115527 | Description: Shim (.003) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-115535 | Description: Shim (.005) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-115543 | Description: Shim (.008) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-115550 | Description: Shim (.0149) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-115568 | Description: Shim (.002) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
