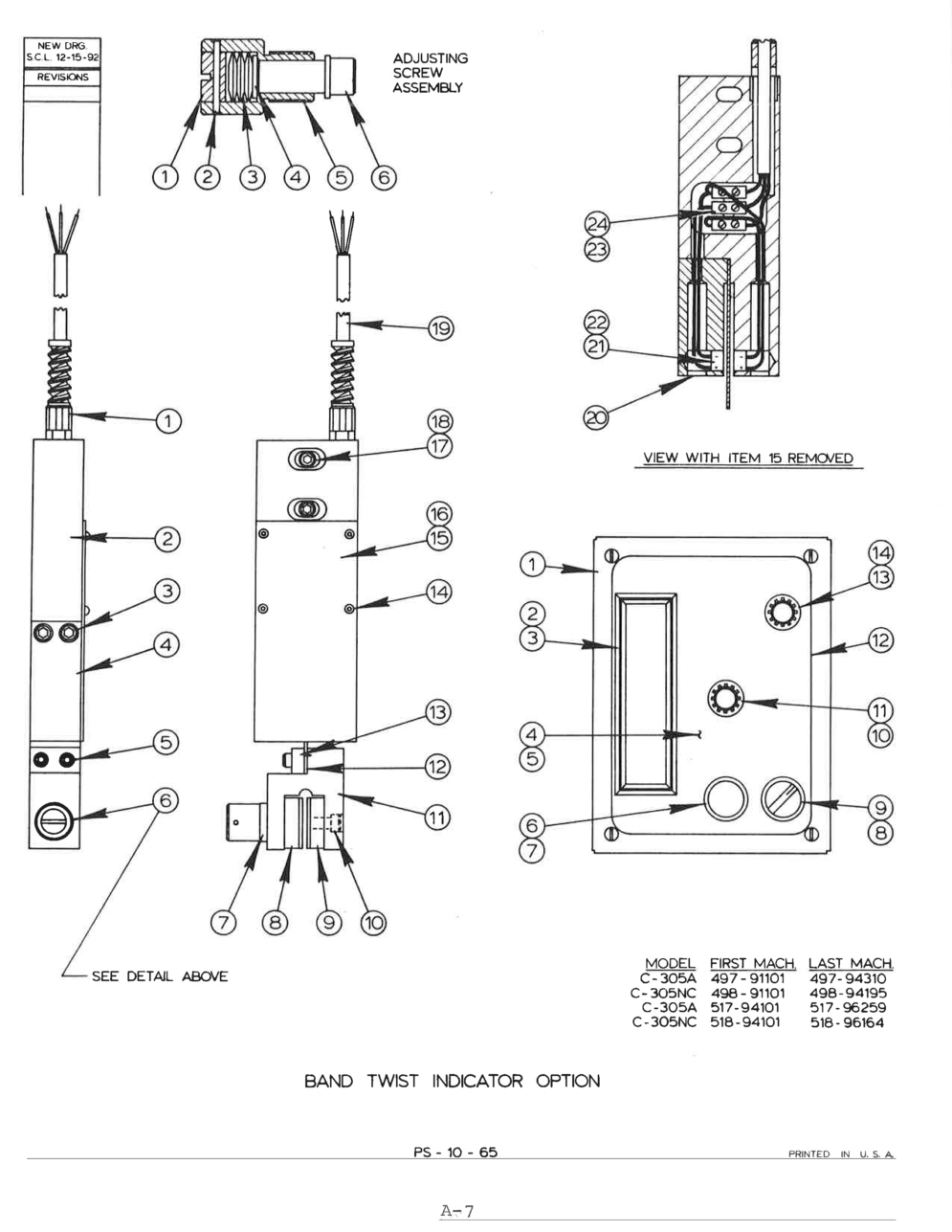

Exploded View Parts Ordering: C-305NC_518
C-305NC 518 Online Parts Manual
Serial No: 518-9410 End Date 518-96164
Page Code: PS-10-65
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 082-031162 | Description: Band Tension Indicator Option | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 095-162822 | Description: Band Tension Indicator Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-781393 | Description: Cord Grip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 095-162806 | Description: Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 094-171691 | Description: Extension Arm | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-982413 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-244194 | Description: Adjusting Screw Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-974352 | Description: Neoprene Sponge | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 093-194066 | Description: Insert Assembly (Movable) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 093-194074 | Description: Insert Assembly (Fixed) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-982199 | Description: Screw, Soc. Hd. Cap #10-24NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 094-171683 | Description: Clevis | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-194017 | Description: Spring Plate | Units Per Assembly: 1 | Availability: In Stock | Price: $84.44 |
| Index No Ref.: 13 | Part Number: 092-031673 | Description: Clamp Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-983981 | Description: Screw, Button Hd. Soc. #8-32NC x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 093-193993 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-194033 | Description: Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-982256 | Description: Screw, Soc. Hd. Cap #10-24NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-993196 | Description: Washer, Lock #10 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-973453 | Description: Shielded Cable (#20-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $7.60 |
| Index No Ref.: 20 | Part Number: 092-031699 | Description: Silicon Sealant | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-786517 | Description: Proximity Sensor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-368936 | Description: Meta Grip Glue (#3802) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-786558 | Description: Terminal Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-368936 | Description: Meta Grip Glue (#3802) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-244194 | Description: Adjusting Screw Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-240333 | Description: Plug | Units Per Assembly: 1 | Availability: In Stock | Price: $13.42 |
| Index No Ref.: 2 | Part Number: 090-042177 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 3 | Part Number: 091-046326 | Description: Belleville Washer | Units Per Assembly: 6 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 091-992578 | Description: Washer, Flat #8 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 091-244186 | Description: Housing | Units Per Assembly: 1 | Availability: In Stock | Price: $38.85 |
| Index No Ref.: 6 | Part Number: 091-244178 | Description: Plunger | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: Ref. | Part Number: 094-171709 | Description: Enclosure Assembly (Control Panel) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 094-171717 | Description: Enclosure | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-781484 | Description: Bezel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-788562 | Description: L.E.D. Display Board | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 094-161973 | Description: P.C. Board | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 093-179018 | Description: Flat Cable Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-792560 | Description: Pushbutton Operator (Black) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-755611 | Description: Contact Block (1-NO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-781492 | Description: Selector Switch (2 Position) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-755611 | Description: Contact Block (1-NO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-787143 | Description: Potentiometer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-781462 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-177202 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-787143 | Description: Potentiometer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-781462 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 114-006612 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-992693 | Description: Washer, Flat 7/8 S.A.E. Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
