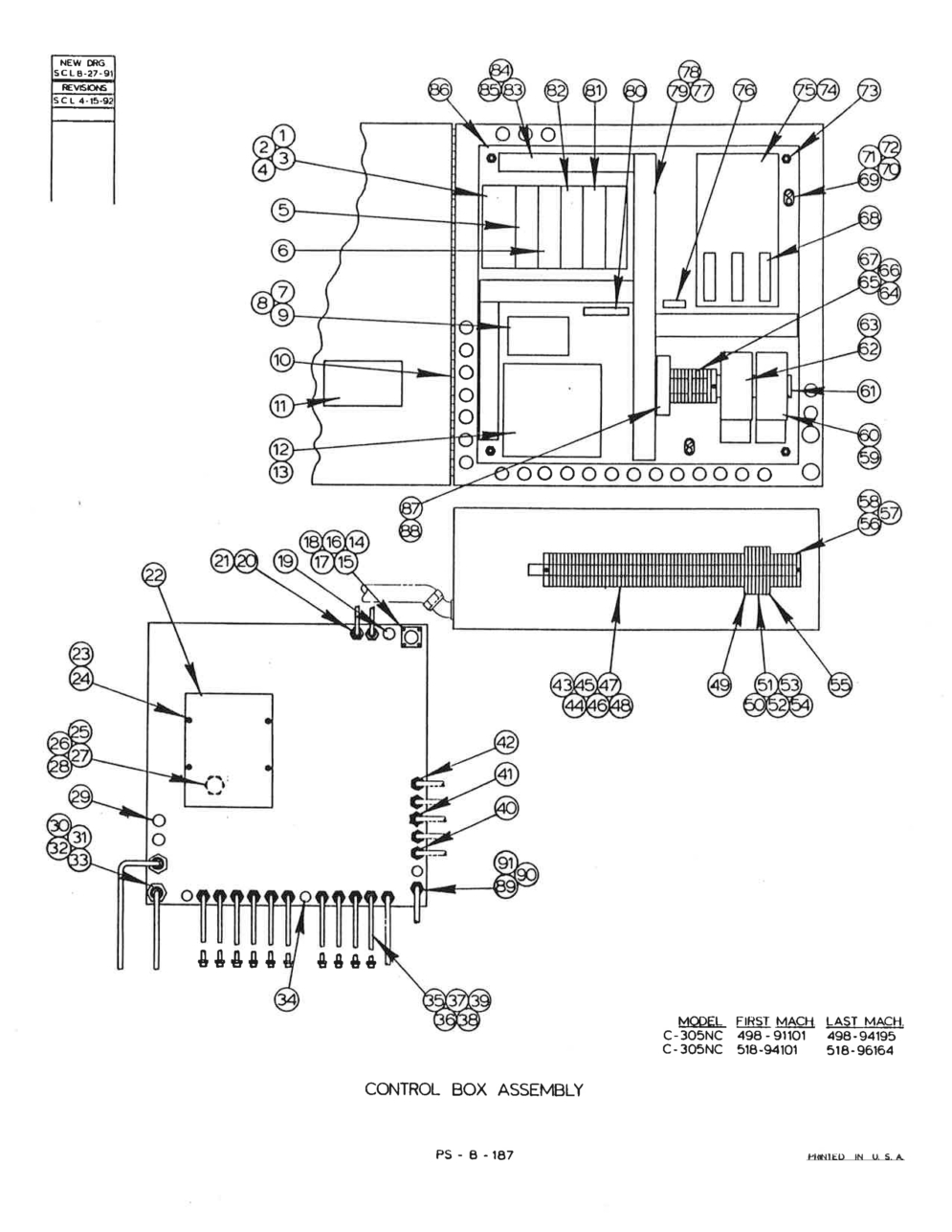

Exploded View Parts Ordering: C-305NC_498
C-305NC 498 Online Parts Manual
Serial No: 498-91101 End Date 498-94195
Page Code: PS-8-187
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Control Box Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-051994** | Description: CPU and 5 Slot Rack (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-028463 | Description: CPU Base (99 Job Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-028471 | Description: CPU Module (99 Job Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 092-013200 | Description: PLC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof Ext. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 092-013242 | Description: PLC High Speed Center | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 092-013234 | Description: PLC Analog Output | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 092-014505 | Description: DC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-988543 | Description: Screw, Rd. Hd. Mach. #8-32NC x1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-993717 | Description: Washer, Lock #8 Shakeproof Ext. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 095-148532 | Description: Control Box Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-020239 | Description: Label (Fuse/Overload Schedule) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-774950 | Description: Linear Position Amplifier (W/Null Control) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-988428 | Description: Screw, Rd. Hd. Mach. #6-32NC x 5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-796425 | Description: Receptacle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-015841 | Description: Connector Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-988394 | Description: Screw, Rd. Hd. Mach. #6-32NC x5/16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-993170 | Description: Washer, Lock #6 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-973057 | Description: Sheilded Cord (#20-3 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-351064 | Description: Hole Seal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 092-016880 | Description: Cord Grip Connector (.200- 394) | Units Per Assembly: 2 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 21 | Part Number: 091-973321 | Description: Extension Cord (#18.2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 22 | Part Number: 094-162963 | Description: Transformer (Universal) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-991760 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 091-749333 | Description: Conduit Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-146871 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 090-157212 | Description: Insulating Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-156183 | Description: Locknut | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-351064 | Description: Hole Seal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 092-016872 | Description: Cord Grip Connector (.545-.709) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-038489 | Description: Terminal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-338269 | Description: Wire Connector | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-972232 | Description: Extension Cord (#12-4 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.37 |
| Index No Ref.: 34 | Part Number: 091-351064 | Description: Hole Seal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 092-016880 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 10 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 36 | Part Number: 091-973321 | Description: Extension Cord (#18.2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 37 | Part Number: 092-012707 | Description: Solenoid Plug Connector Kit (Gray) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-012699 | Description: Solenoid Plug Connector Kit (Black) | Units Per Assembly: 5 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 39 | Part Number: 092-012715 | Description: Rubber Gasket | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 092-016864 | Description: Cord Grip Connector (.157-.314) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 092-016963 | Description: Cord Grip Connector (.394-.551) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 092-016880 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 5 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 43 | Part Number: 091-743401 | Description: Terminal Block | Units Per Assembly: 50 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-696740 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 091-696732 | Description: Terminal Marker | Units Per Assembly: 80 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-743427 | Description: Jumper | Units Per Assembly: 14 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproot Ext | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 091-767101 | Description: Fuse (10 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-787127 | Description: Fuse (2.5 Amp) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 091-790147 | Description: Terminal Block | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-790154 | Description: Fuse Plug | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-790196 | Description: End Plate | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-790246 | Description: Fuse Plug Marker | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 092-003904 | Description: Fuse (4 Amp) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 091-696682 | Description: Terminal Block | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-696724 | Description: Terminal Block End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 091-696708 | Description: Terminal Block End Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 091-780528 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 091-790543 | Description: Overload Relay (200V, 208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790501 | Description: Overload Relay (380V, 400V, 415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790450 | Description: Overload Relay (460V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790535 | Description: Overload Relay (575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 091-696740 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 091-790469 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-790535 | Description: Overload Relay (200V, 208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790451 | Description: Overload Relay (380V, 400V, 415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790550 | Description: Overload Relay (460V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790493 | Description: Overload Relay (575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 091-696682 | Description: Terminal Block | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 091-696724 | Description: Terminal Block End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 091-696708 | Description: Terminal Block End Plate | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-696732 | Description: Terminal Marker | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 091-338665 | Description: Fuse (30 Amp) (200V, 208V, 220V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338640 | Description: Fuse (20 Amp) (380V, 400V, 415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338632 | Description: Fuse (15 Amp) (460V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338673 | Description: Fuse (12 Amp) (575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 091-391946 | Description: Ground Terminal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 091-988592 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 091-991091 | Description: Nut, Hex. Jam #8-32NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 091-992792 | Description: Washer, Rat #8 S.A.E. Std. (Black Oxide) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 091-991265 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 74 | Part Number: 091-705699 | Description: Disconnect Switch Kit | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 75 | Part Number: 091-989733 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 76 | Part Number: 091-391854 | Description: Label (Copper Wire Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 77 | Part Number: 091-972125 | Description: 2" Fibre Wiring Channel | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 78 | Part Number: 091-972133 | Description: 2" Fibre Wiring Channel Cover | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 79 | Part Number: 091-077776 | Description: Plastic Push Rivet | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 80 | Part Number: 091-095570 | Description: Escutcheon (Diagram No.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 81 | Part Number: 092-013226 | Description: PLC 120V Output Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 82 | Part Number: 092-013218 | Description: PLC 120V Input Relay | Units Per Assembly: 1 | Availability: In Stock | Price: $2,135.00 |
| Index No Ref.: 83 | Part Number: 091-972083 | Description: 1" Fibre Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 84 | Part Number: 091-972109 | Description: 1" Fibre Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 85 | Part Number: 091-077776 | Description: Plastic Push Rivet | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 86 | Part Number: 095-150504 | Description: Control Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 87 | Part Number: 091-790485 | Description: Overload Relay (200V, 208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-054600 | Description: Overload Relay (380V, 400V, 415V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 88 | Part Number: 091-795716 | Description: Relay Mounting Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 89 | Part Number: 090-145459 | Description: Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 90 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 91 | Part Number: 091-971564 | Description: Sealtite Conduit 1/2 I.D. | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.70 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-971903 | Description: Wire, #14 Red | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971952 | Description: Wire, #14 Green/Yellow (Flamenal) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 091-972026 | Description: Wre, #18 Red (Flamenal) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-765289 | Description: Escutcheon (Electrical Hazard) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-057454* | Description: Eprom Sub-Assy. (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-040351 | Description: Eprom Sub-Assy. (99 Job Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971788 | Description: Wire, #10 Black (Nylon Jacket) | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338269 | Description: Wire Connector | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE:Before Serial #498-94183, CPU and Base was 092-014521 #498-93133 thru #498-94182 Eprom Sub-Ass'y. was #092-037779. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: Before Serial #498-93133 Eprom Sub-Assembly was 092-020544. From Serial | Units Per Assembly: | Availability: Call For Info | Price: |
