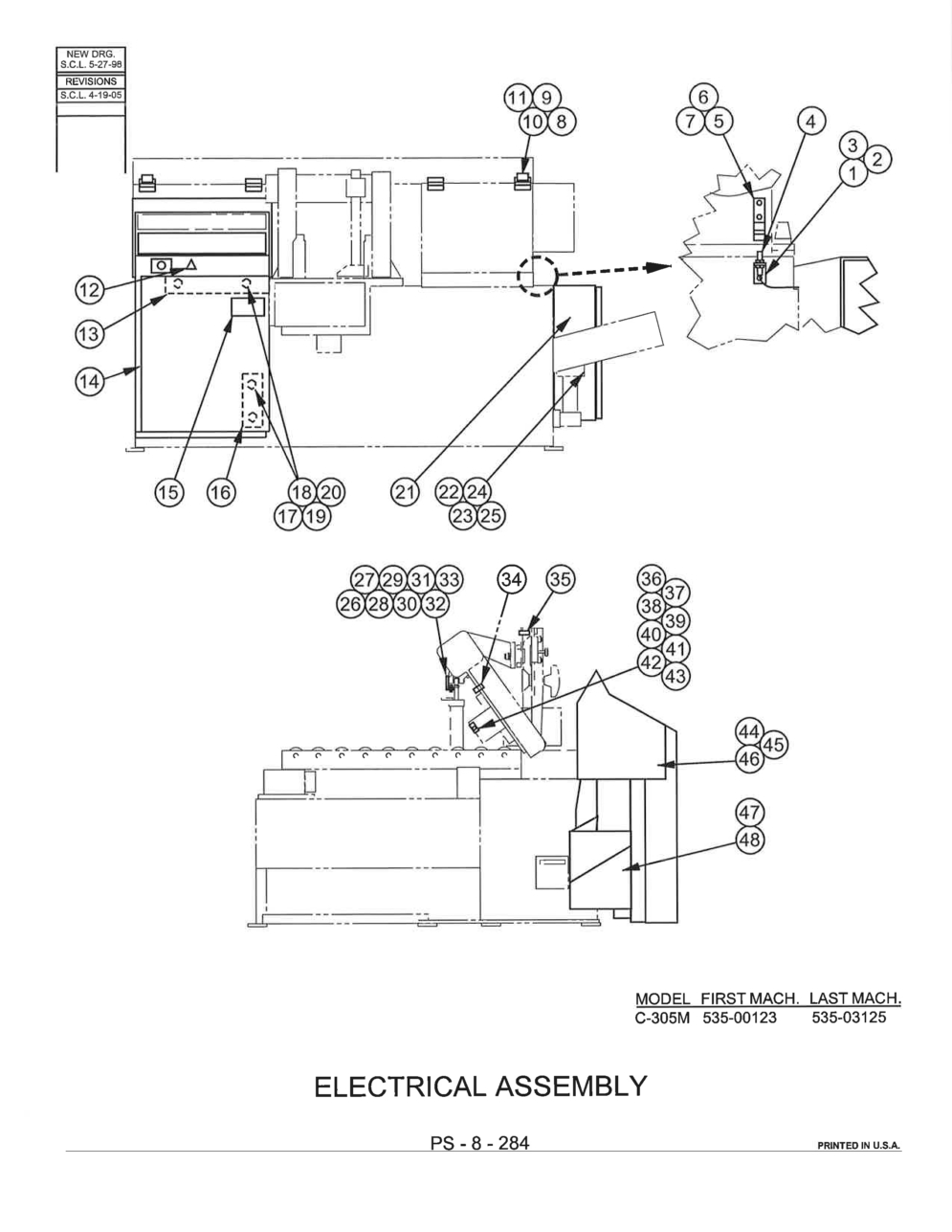

Exploded View Parts Ordering: C-305M_535
C-305M 535 Online Parts Manual
Serial No: 535-96101 End Date 535-03125
Page Code: PS-8-284
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 520272 | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 215050 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199969 | Description: Screw, Button Hd. Soc M6 x 1.0 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 209655 | Description: Proximity Switch (Head Up Max) | Units Per Assembly: 1 | Availability: In Stock | Price: $538.59 |
| Index No Ref.: 5 | Part Number: 320931 | Description: Stop Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199923 | Description: Screw, Button Hd. Soc M6 x 1.0 x 10 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 219160 | Description: Limit Switch (Door Interlock) | Units Per Assembly: 2 | Availability: In Stock | Price: $692.74 |
| Index No Ref.: 9 | Part Number: 216729 | Description: Hinged Mounting Plate | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 199964 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 30 (If Supplied) | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 219161 | Description: Cord Grip Connector (.197-.394) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 197332 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 176528 | Description: Label (Electrical Hazard) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.47 |
| Index No Ref.: 13 | Part Number: 320166 | Description: Stand-Off | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: | Description: Control Console Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 325312 | Description: Escutcheon (Switch Locations) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 320167 | Description: Stand-Off | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 199844 | Description: Screw, Hex. Hd. Cap M12 x 1.75 x 25 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199933 | Description: Nut, Hex. M12 x 1.75 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 199345 | Description: Washer, Lock M12 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199280 | Description: Washer, Flat M12 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: | Description: Junction Box Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 014507 | Description: 45 Degree Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 014411 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 019543 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 197156 | Description: Sealtite Conduit 1/2 I.D. | Units Per Assembly: A.R | Availability: In Stock | Price: $6.70 |
| Index No Ref.: 26 | Part Number: 209655 | Description: Proximity Switch (Head Down) | Units Per Assembly: 1 | Availability: In Stock | Price: $538.59 |
| Index No Ref.: 27 | Part Number: 324410 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 199969 | Description: Screw, Button Hd. Soc M6 x 1.0 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 30 | Part Number: 324413 | Description: Bracket Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 179016 | Description: Stop Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 199898 | Description: Screw, Soc. Hd. Cap M5 x 0.7 x 16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 199348 | Description: Washer, Lock M5 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 34 | Part Number: 215049 | Description: Motion Detector (Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 209655 | Description: Proximity Switch (Head Clear) | Units Per Assembly: 1 | Availability: In Stock | Price: $538.59 |
| Index No Ref.: 36 | Part Number: 206588 | Description: Limit Switch (Band Tension) | Units Per Assembly: 1 | Availability: In Stock | Price: $776.34 |
| Index No Ref.: 37 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 320626 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 199923 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 10 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 198974 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 50 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 133371 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 199114 | Description: Nut, Hex. Jam1/4-20NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 44 | Part Number: 517229 | Description: Shield/Splash Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 199246 | Description: Screw, Button Hd. Soc M6 x 1.0 x 12 | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 46 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 47 | Part Number: 419626 | Description: Shroud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 199974 | Description: Screw, Button Hd. Soc M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
