Exploded View Parts Ordering: C-305M_535
C-305M 535 Online Parts Manual
Serial No: 535-96101 End Date 535-03125

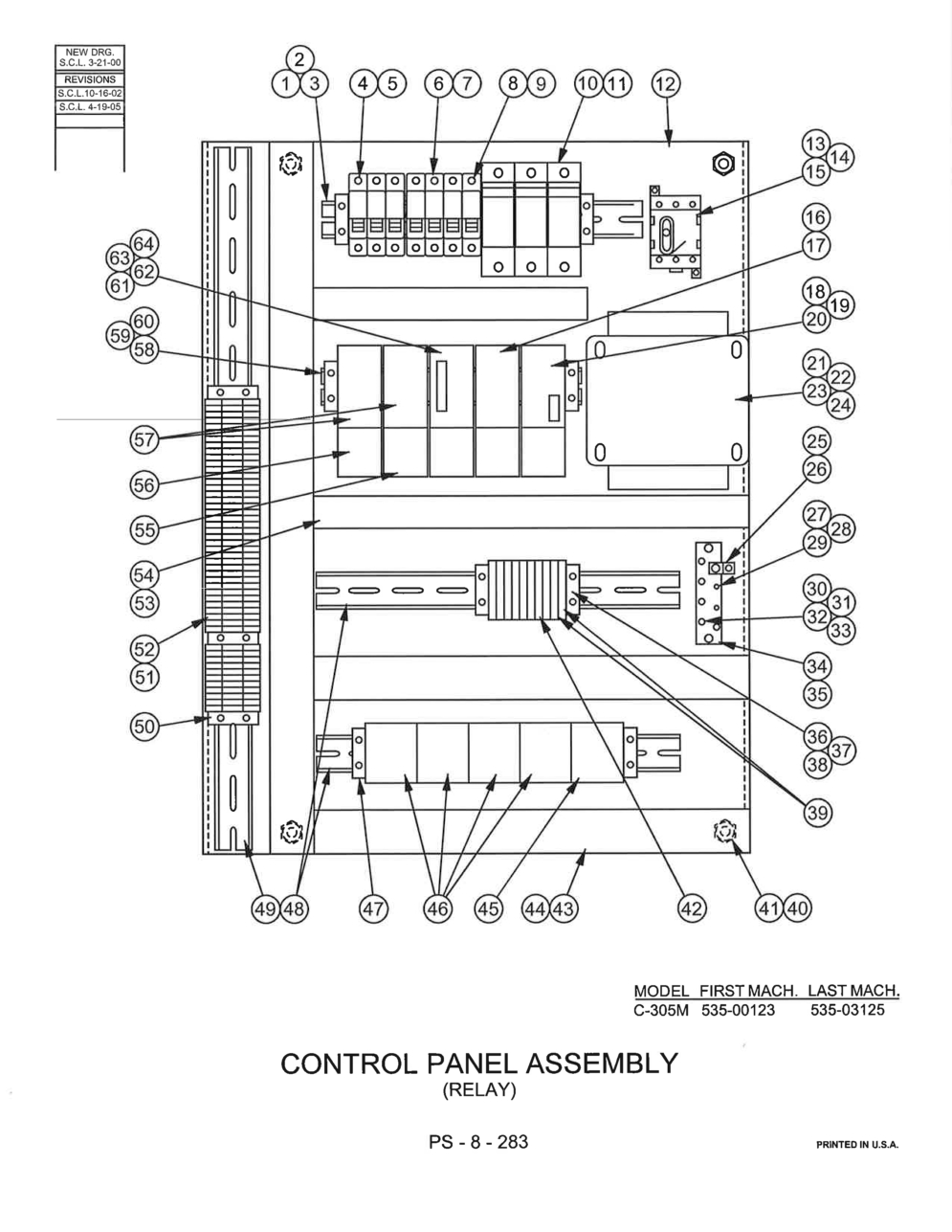

Page Code: PS-8-283
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Control Panel Assembly (Relay) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 2 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5 x 0.8 x 8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 215213 | Description: Fuse Block | Units Per Assembly: 1 | Availability: In Stock | Price: $175.00 |
| Index No Ref.: | Part Number: 420394* | Description: Circuit Breaker (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 420391* | Description: Circuit Breaker (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 206034 | Description: Fuse (12 Amp) (208V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 203162 | Description: Fuse (10 Amp) (230V) | Units Per Assembly: 3 | Availability: In Stock | Price: $67.01 |
| Index No Ref.: | Part Number: 203161 | Description: Fuse (5 Amp) (460V) | Units Per Assembly: 3 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: | Part Number: 201615 | Description: Fuse (4 Amp) (575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 215213 | Description: Fuse Block | Units Per Assembly: 1 | Availability: In Stock | Price: $175.00 |
| Index No Ref.: | Part Number: 420390* | Description: Circuit Breaker (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 420388* | Description: Circuit Breaker (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 203158 | Description: Fuse (1 Amp) (208V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 206701 | Description: Fuse (.5 Amp) (460V, 575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 215212 | Description: Fuse Block | Units Per Assembly: 1 | Availability: In Stock | Price: $38.85 |
| Index No Ref.: | Part Number: 420358* | Description: Circuit Breaker (220V, 380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 203161 | Description: Fuse (5 Amp) | Units Per Assembly: 1 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: 10 | Part Number: 215214 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 420398* | Description: Circuit Breaker (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 420396* | Description: Circuit Breaker (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 207560 | Description: Fuse (30 Amp) (208V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207561 | Description: Fuse (20 Amp) (460V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 212863 | Description: Fuse (10 Amp) (575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 519659 | Description: Control Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 214418 | Description: Disconnect Switch Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199054 | Description: Screw, Pan Hd. Slotted M4 x 0.7 x 8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 207206 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 207225 | Description: Delay Timer Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 207206 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 207226 | Description: Delay Timer Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 207221 | Description: Auxiliary Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $40.23 |
| Index No Ref.: 21 | Part Number: 320113 | Description: Transformer (208V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 323469 | Description: Transformer (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320114 | Description: Transformer (230V, 460V, 575V) | Units Per Assembly: 1 | Availability: In Stock | Price: $393.93 |
| Index No Ref.: | Part Number: 217753 | Description: Transformer (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 198962 | Description: Screw, Pan Hd. Slotted M6 x 1.0 x 16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 24 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 141639 | Description: Wire Terminal Lug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 215203 | Description: Screw, Pan Hd. Slotted M6 x 1.0 x 8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 215201 | Description: Screw, Pan Hd. Slotted M4 x 0.7 x 6 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 199248 | Description: Washer, Flat M4 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 199365 | Description: Washer, Lock #8 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 215202 | Description: Screw, Pan Hd. Slotted M5 x 0.8 x 6 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 32 | Part Number: 199311 | Description: Washer, Lock M6 Shakeproof | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 199355 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 320740 | Description: Grounding Bus | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 198962 | Description: Screw, Pan Hd. Slotted M6 x 1.0 x 16 . | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 202909 | Description: Fuse Holder | Units Per Assembly: 10 | Availability: In Stock | Price: $41.51 |
| Index No Ref.: 37 | Part Number: 201477 | Description: End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 200390 | Description: Fuse (4 Amp) (Fuses 5, 6) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 199126 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 199325 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 178712 | Description: Fuse (2.5 Amp) (Fuses 7 - 17) | Units Per Assembly: 8 | Availability: In Stock | Price: $52.46 |
| Index No Ref.: 43 | Part Number: 197429 | Description: 1-1/2" Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 197430 | Description: 1-1/2" Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 208727 | Description: Control Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 207200 | Description: Control Relay | Units Per Assembly: 4 | Availability: In Stock | Price: $80.41 |
| Index No Ref.: 47 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 49 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5 x 0.8 x 8 | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 200615 | Description: Terminal Block (Gray) | Units Per Assembly: 58 | Availability: In Stock | Price: $2.66 |
| Index No Ref.: 52 | Part Number: 200617 | Description: End Section | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 197208 | Description: 1" Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 197210 | Description: 1" Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 207287 | Description: Overload Relay (208V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207290 | Description: Overload Relay (220V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207285 | Description: Overload Relay (230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207288 | Description: Overload Relay (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207284 | Description: Overload Relay (460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 207293 | Description: Overload Relay (208V, 220V, 230V) | Units Per Assembly: 1 | Availability: In Stock | Price: $88.47 |
| Index No Ref.: | Part Number: 207291 | Description: Overload Relay (380V-415V, 460V, 575V) | Units Per Assembly: 1 | Availability: In Stock | Price: $87.10 |
| Index No Ref.: 57 | Part Number: 207206 | Description: Contactor | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 169674 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 59 | Part Number: 199578 | Description: Screw, Pan Hd. Slotted M5 x 0.8 x 8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 200618 | Description: End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 207209 | Description: Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $209.06 |
| Index No Ref.: 62 | Part Number: 207298 | Description: Overload Relay (208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207294 | Description: Overload Relay (380V-415V, 460V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207293 | Description: Overload Relay (575V) | Units Per Assembly: 1 | Availability: In Stock | Price: $88.47 |
| Index No Ref.: 63 | Part Number: 207222 | Description: Auxilliary Contactor (2-NO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 207220 | Description: Auxilliary Contactor (1-NC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 215231 | Description: Terminal Block Marker Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197343 | Description: Wire, #16 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197325 | Description: Wire, #16 White (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197420 | Description: Wire, #10 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197341 | Description: Wire, #12 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197339 | Description: Wire, #14 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197197 | Description: Wire, #16 Red (19 Strand) | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.10 |
| Index No Ref.: | Part Number: 197205 | Description: Wire, #18 Blue (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197243 | Description: Wire, #10 Green/Yellow | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197345 | Description: Shielded Cable (#20-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $7.60 |
| Index No Ref.: | Part Number: 214182 | Description: Hour Meter (Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 218828 | Description: Heat-Shrink Tubing 1/8" | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 218829 | Description: Heat-Shrink Tubing 1/4" | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 219479 | Description: Wire Connector | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *For 220V and 380V-415V Machines with Fuses: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 206034 | Description: Fuse (12 Amp) (220V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 206705 | Description: Fuse (6.25 Amp) (380V-415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 205039 | Description: Fuse (3.5 Amp) (220V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 206703 | Description: Fuse (1.8 Amp) (380V-415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 203161 | Description: Fuse (5 Amp) (220V, 380V-415V) | Units Per Assembly: 1 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: 10 | Part Number: 207560 | Description: Fuse (30 Amp) (220V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207561 | Description: Fuse (20 Amp) (380V-415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: Use With Fuse Blocks Listed. | Units Per Assembly: | Availability: Call For Info | Price: |
