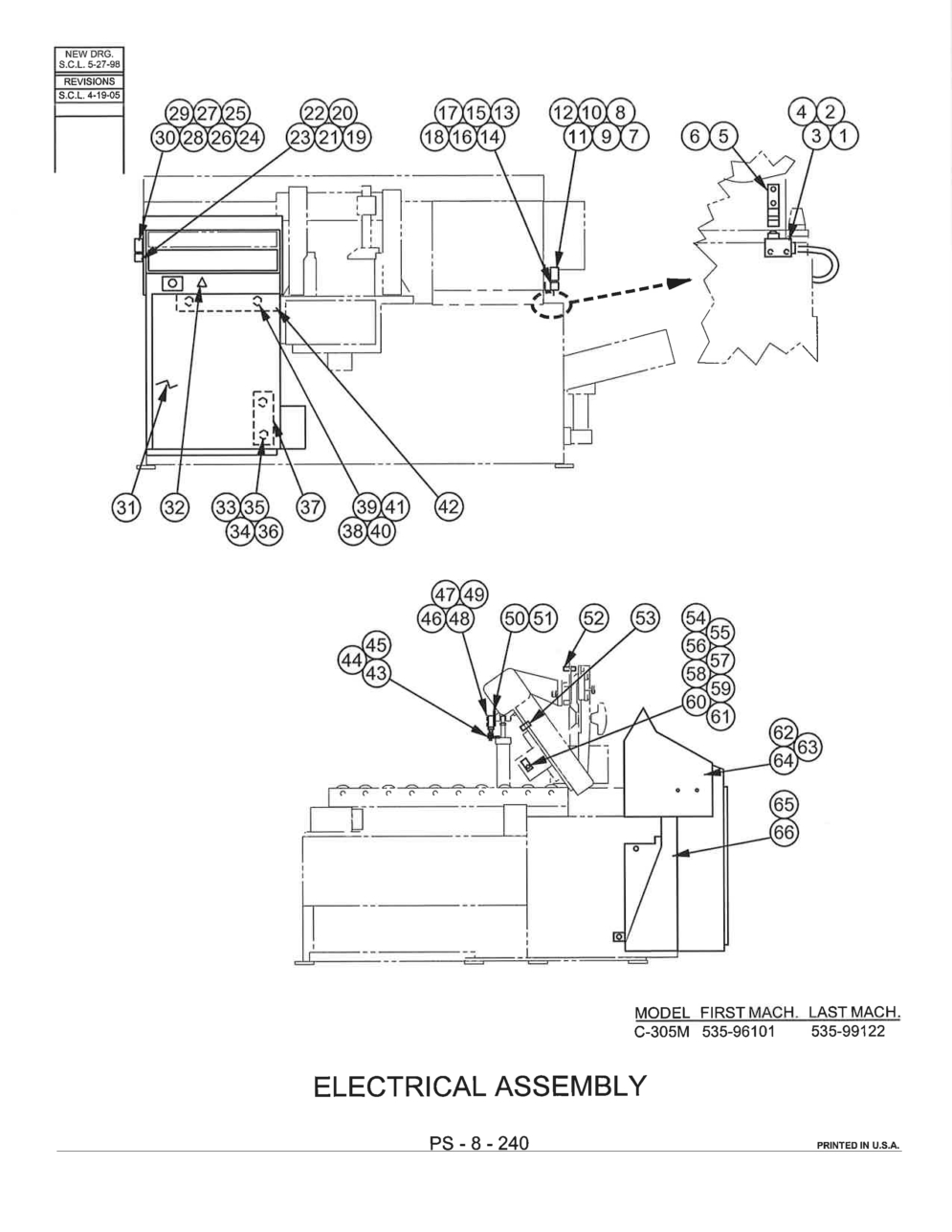

Exploded View Parts Ordering: C-305M_535
C-305M 535 Online Parts Manual
Serial No: 535-96101 End Date 535-03125
Page Code: PS-8-240
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 418209 | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 206588 | Description: Limit Switch (Head Up Max.) | Units Per Assembly: 1 | Availability: In Stock | Price: $776.34 |
| Index No Ref.: 2 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 201266 | Description: Cord Grip Connector (.200-.354) | Units Per Assembly: 1 | Availability: In Stock | Price: $9.91 |
| Index No Ref.: 4 | Part Number: 197332 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 5 | Part Number: 320931 | Description: Actuator | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 205056 | Description: Limit Switch (Female) (Door/Interlock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199964 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199214 | Description: Nut, Hex. M4 x 0.7 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 208048 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199972 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 203946 | Description: Limit Switch Key (Male) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199964 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 199214 | Description: Nut, Hex. M4 x 0.7 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 208049 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199972 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: 203946 | Description: Limit Switch Key (Male) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199964 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 199297 | Description: Washer, Lock M5 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 208049 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 199972 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 24 | Part Number: 205056 | Description: Limit Switch (Female) (Door/Interlock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 199040 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 35 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 199964 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 30 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 199248 | Description: Washer, Flat M4 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 28 | Part Number: 208050 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 199972 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 12 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 30 | Part Number: 199248 | Description: Washer, Flat M4 | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 31 | Part Number: | Description: Control Console Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 176528 | Description: Escutcheon (Warning) | Units Per Assembly: 3 | Availability: In Stock | Price: $1.47 |
| Index No Ref.: 33 | Part Number: 199844 | Description: Screw, Hex. Hd. Cap m12 x 1.75 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 199280 | Description: Washer, Flat M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 199345 | Description: Washer, Lock M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 199933 | Description: Nut, Hex. M12 x 1.75 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 320167 | Description: Standoff | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 199844 | Description: Screw, Hex. Hd. Cap M12 x 1.75 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 199280 | Description: Washer, Flat M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 199345 | Description: Washer, Lock M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 199933 | Description: Nut, Hex. M12 x 1.75 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 320166 | Description: Standoff | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 179012 | Description: Stop Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 199114 | Description: Nut, Hex. Jam 1/4-20NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 45 | Part Number: 133371 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 206588 | Description: Limit Switch (Head Down) | Units Per Assembly: 1 | Availability: In Stock | Price: $776.34 |
| Index No Ref.: 47 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 201266 | Description: Cord Grip Connector (.200-.354) | Units Per Assembly: 1 | Availability: In Stock | Price: $9.91 |
| Index No Ref.: 49 | Part Number: 197332 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 50 | Part Number: 320809 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 209655 | Description: Proximity Sensor (Head Clear) | Units Per Assembly: 1 | Availability: In Stock | Price: $538.59 |
| Index No Ref.: 53 | Part Number: 168113 | Description: Motion Detector (Optional) | Units Per Assembly: 1 | Availability: In Stock | Price: $912.37 |
| Index No Ref.: 54 | Part Number: 206588 | Description: Limit Switch (Band Tension) | Units Per Assembly: 1 | Availability: In Stock | Price: $776.34 |
| Index No Ref.: 55 | Part Number: 198978 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 201266 | Description: Cord Grip Connector (.200-.354) | Units Per Assembly: 1 | Availability: In Stock | Price: $9.91 |
| Index No Ref.: 57 | Part Number: 197332 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 58 | Part Number: 320626 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 199972 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 60 | Part Number: 198974 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 50 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 199188 | Description: Nut, Hex. M6 x 1.0 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 62 | Part Number: 517229 | Description: Splash Shield/Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.7 x 10 | Units Per Assembly: 7 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 64 | Part Number: 199348 | Description: Washer, Flat M5 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 65 | Part Number: 419626 | Description: Shroud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
