Exploded View Parts Ordering: C-305M_495
C-305M 495 Online Parts Manual
Serial No: 495-91101 End Date 495-94124
Page Code: PS-4-91
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

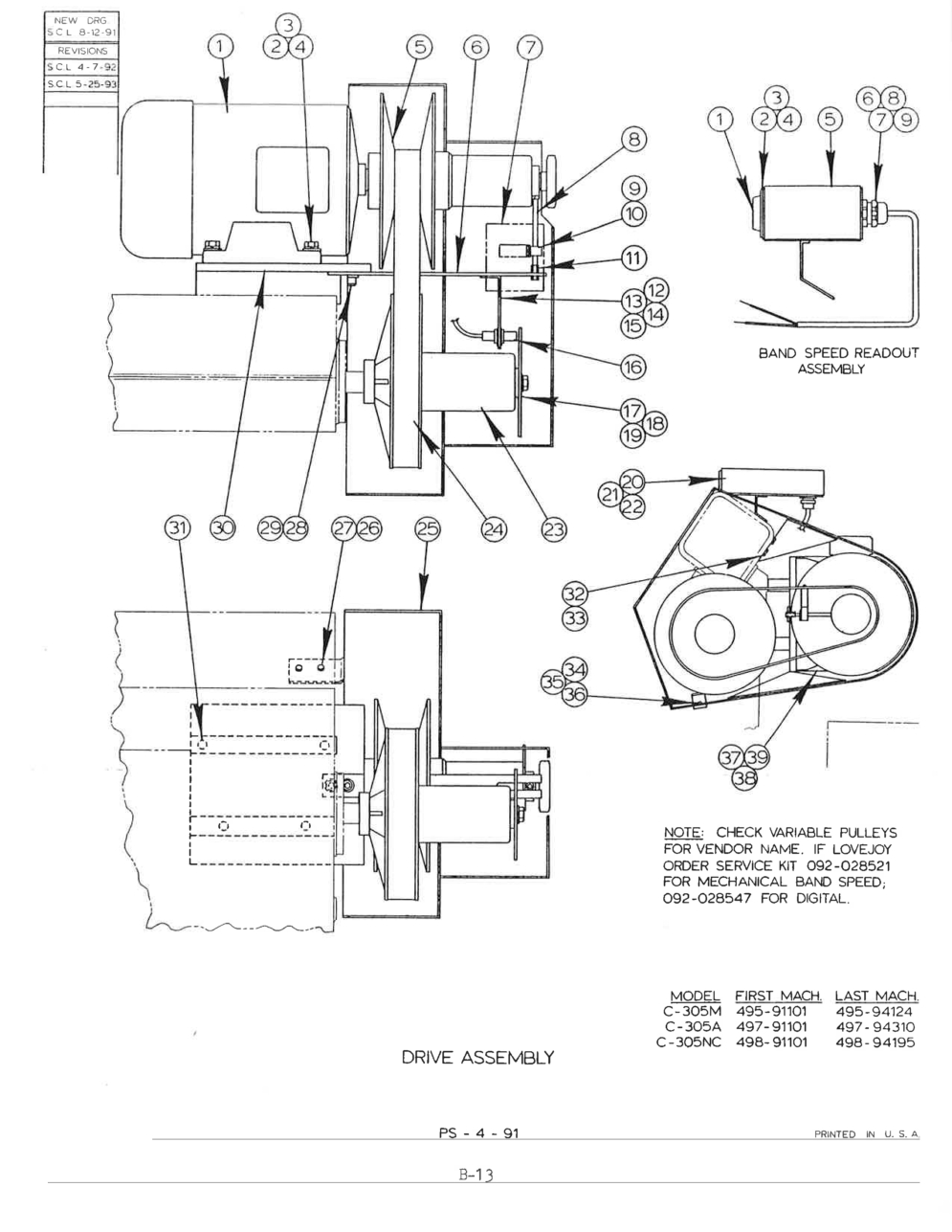

| Index No Ref.: Ref. | Part Number: | Description: Drive Assembly (See Note on Drawing!) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-418053 | Description: Electric Motor (50/60 Hz; All Voltages) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-038611 | Description: Electric Motor (50/60 Hz; All Voltages) (Fungusproof) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980482 | Description: Screw. Hex. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 093-165702 | Description: Variable Pulley (Driver) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-192755 | Description: Arm (Mechanical Readout) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-192763 | Description: Arm (Digital Readout) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 092-026889 | Description: Escutcheon (Band Speed) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 092-026855 | Description: Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 092-026863 | Description: Indicator Arm Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-984112 | Description: Screw, Soc. Set #10-24NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-971440 | Description: Plastic Tubing 3/8 O.D. (Clear) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12* | Part Number: 093-192771 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13* | Part Number: 091-980011 | Description: Screw, Hex. Hd. Cap #10-24NO x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14* | Part Number: 091-991117 | Description: Nut, Hex. #10-24NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15* | Part Number: 091-993204 | Description: Washer. Lock #10 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16* | Part Number: 092-012657 | Description: Proximity Sensor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17* | Part Number: 093-195592 | Description: Sensor Disk | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18* | Part Number: 091-982850 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 2-12 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19* | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20* | Part Number: 095-160651 | Description: Band Speed Readout Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21* | Part Number: 091-980060 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22* | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 093-165710 | Description: Variable Pulley (Driven) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-142159 | Description: Key | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-718247 | Description: V-Belt | Units Per Assembly: 1 | Availability: In Stock | Price: $755.71 |
| Index No Ref.: 25 | Part Number: 095-160867 | Description: Drive Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-990234 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 28 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 094-170669 | Description: Motor Base Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Gap 3/8-16NC x 1-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-980060 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 34 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 12 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 091-992602 | Description: Washer, Flat 1/4 S.A.E. Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 37 | Part Number: 093-194959 | Description: Back Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-980060 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: *NOTE: These Items Used With Digital Readout Option Only. Digital Readout Option Only on C-305A and C-305NC. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 095-160651 | Description: Band Speed Readout Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-004233 | Description: Tachometer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 093-190841 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 093-190858 | Description: Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-983767 | Description: Screw, Button Hd. Soc. #6-32NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 095-160644 | Description: Enclosure Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-328112 | Description: Cord Grip Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-973453 | Description: Shielded Cable (#20-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $7.60 |
| Index No Ref.: | Part Number: | Description: Following Not Shown And Located In Main Control Box: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-328112 | Description: Cord Grip Connector | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-016854 | Description: Timer Socket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-004340 | Description: DC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-973255 | Description: Wire, #16 While (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971978 | Description: Wire, #16 Red (19 Strand) | Units Per Assembly: A R | Availability: In Stock | Price: $3.10 |
