Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-8-329

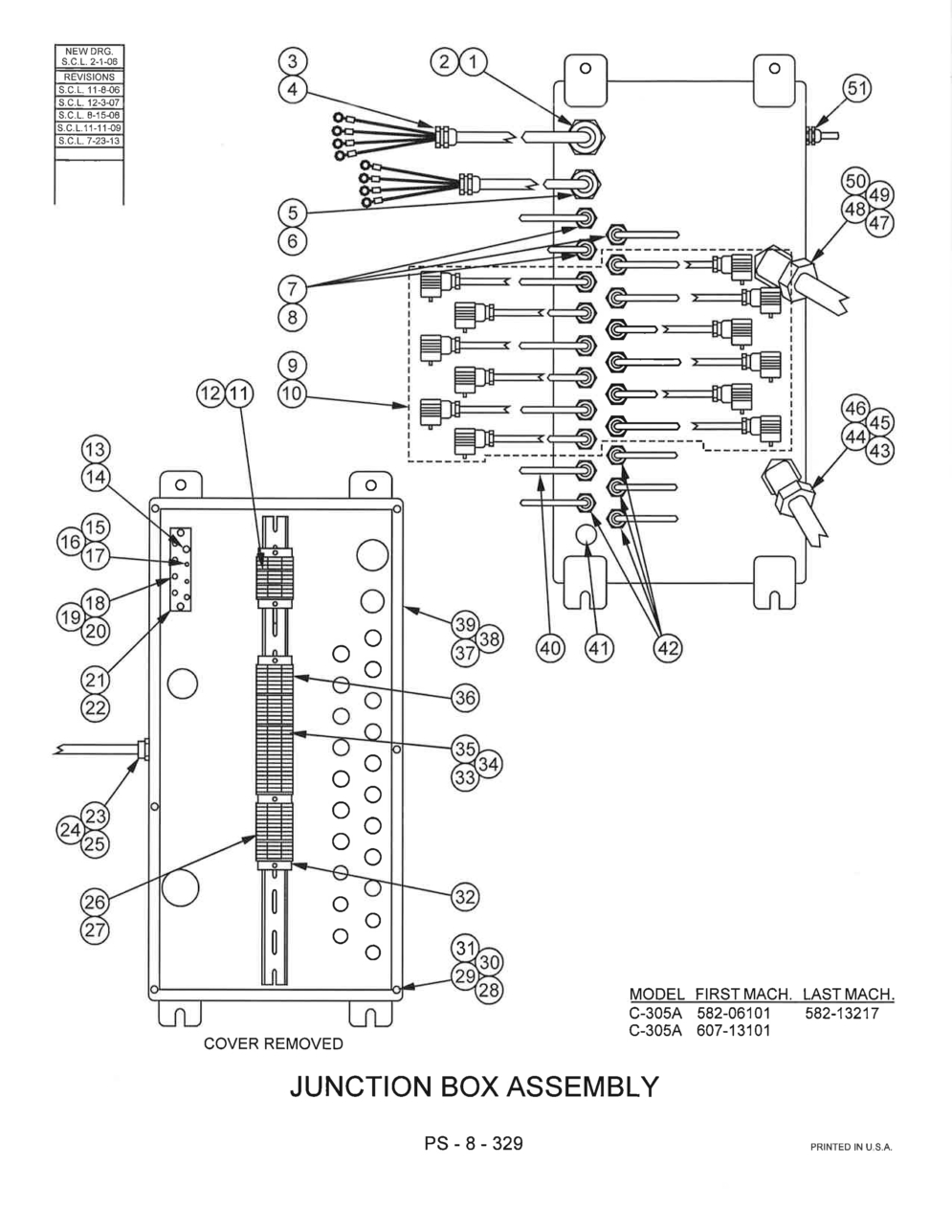

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 520212 Description: Junction Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 202900 Description: Cord Grip Connector (.545-.709) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 197428 Description: Electrical Cord (#10-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 3154 Description: Cord Grip Connector (.625-.750) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 14480 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 201687 Description: Cord Grip Connector (.545-.709) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 197223 Description: Electrical Cord (#12-4 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.37
Index No Ref.: 7 Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 3 Availability: In Stock Price: $5.96
Index No Ref.: 8 Part Number: 197332 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 9 Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 12 Availability: In Stock Price: $5.96
Index No Ref.: 10 Part Number: 219450 Description: Solenoid DIN Connector Units Per Assembly: 12 Availability: In Stock Price: $46.92
Index No Ref.: 11 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 9 Availability: In Stock Price: $2.66
Index No Ref.: 12 Part Number: 200617 Description: End Section Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 198960 Description: Screw, Pan Hd. Slotted M6-1.0 x 10 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 199311 Description: Washer, Lock M6 Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 199408 Description: Screw, Pan Hd. Slotted M4-0.7 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 199248 Description: Washer, Flat M4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 199365 Description: Washer, Lock #8 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 199578 Description: Screw, Pan Hd. Slotted M5-0.8 x 8 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 199244 Description: Washer, Flat M5 Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 20 Part Number: 199355 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 320740 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 198962 Description: Screw, Pan Hd. Slotted M6-1.0 x 16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 14545 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 14411 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 197156 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 26 Part Number: 209033 Description: Terminal Block (Blue) Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 209034 Description: End Section Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 199442 Description: Screw, Hex. Hd. Cap M5-0.8 x 20 Units Per Assembly: 6 Availability: In Stock Price: $1.51
Index No Ref.: 29 Part Number: 204152 Description: Nylon Washer Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 30 Part Number: 204150 Description: Retainer Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 31 Part Number: 207171 Description: Nut, Rivet M5-0.8 Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 32 Part Number: 200618 Description: End Stop Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 23 Availability: In Stock Price: $2.66
Index No Ref.: 34 Part Number: 200617 Description: End Section Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 202922 Description: Jumper Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 222284 Description: Terminal Block (Yellow) Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 519949 Description: Junction Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 420120 Description: Box Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 203925 Description: Gasket Strip Units Per Assembly: A.R. Availability: In Stock Price: $3.20
Index No Ref.: 40 Part Number: 197332 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 41 Part Number: 135106 Description: Hole Seal Units Per Assembly: 1 Availability: In Stock Price: $15.31
Index No Ref.: 42 Part Number: 201686 Description: Cord Grip Connector (.157-.314) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 14691 Description: 45 Degrees Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 14694 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 15752 Description: Insulated Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 197160 Description: Sealtite Conduit 1-1/4 I.D Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 14688 Description: 45 Degrees Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 14687 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 15751 Description: Insulated Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 197159 Description: Sealtite Conduit 1" I.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 201686 Description: Cord Grip Connector (.157-.314) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 197339 Description: Wire, #14 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197195 Description: Wire, #14 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: Part Number: 13742 Description: Wire Terminal Ring (16-10 AWG) Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: Part Number: 7635 Description: Wire Terminal Ring (16-14 AWG) Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: Part Number: 176528 Description: Label (Electrical Hazard) Units Per Assembly: 1 Availability: In Stock Price: $1.47
