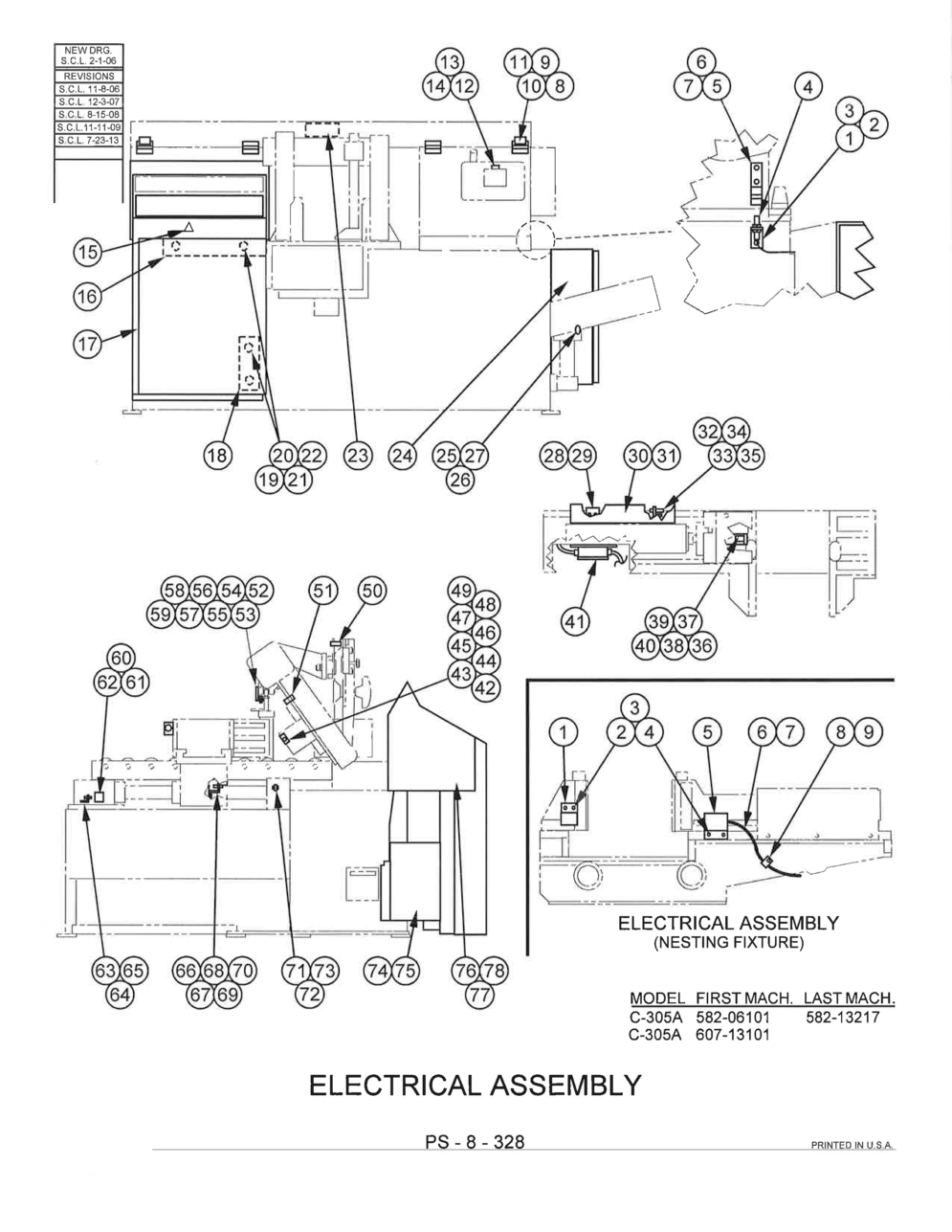

Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-8-328

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 520673 Description: Electrical Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 215050 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 199969 Description: Screw, Button Hd. Soc M6-1.0 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 215048 Description: Proximity Switch (Head Up Max.) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 5 Part Number: 320931 Description: Stop Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199923 Description: Screw, Button Hd. Soc M6-1.0 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 219160 Description: Limit Switch (Door Interlock) Units Per Assembly: 2 Availability: In Stock Price: $692.74
Index No Ref.: 9 Part Number: 216729 Description: Mounting Plate Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 199987 Description: Screw, Flat Hd. Soc. M6-1.0 x 10 Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 12 Part Number: 219161 Description: Cord Grip Connector (M20; .197-.394) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 197428 Description: Extension Cord (#10-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 219160 Description: Terminal Ring #6 (22-18 AWG) Units Per Assembly: 4 Availability: In Stock Price: $692.74
Index No Ref.: 15 Part Number: 176528 Description: Label (Electrical Hazard) Units Per Assembly: 4 Availability: In Stock Price: $1.47
Index No Ref.: 16 Part Number: 320166 Description: Stand-Off Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: Description: Control Console Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 320167 Description: Stand-Off Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 199844 Description: Screw, Hex. Hd. Cap M12-1.75 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 199933 Description: Nut, Hex. M12-1.75 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 199345 Description: Washer, Lock M12 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 199280 Description: Washer, Flat M12 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 325311 Description: Escutcheon (Switch Locations) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: Description: Junction Box Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 14507 Description: 45 Degrees Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 14411 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 197156 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 28 Part Number: 215578 Description: Bracket Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 199974 Description: Screw, Button Hd. Soc M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 30 Part Number: 517226 Description: Guard/Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 199970 Description: Screw, Soc. Hd. Cap M6-1.0 x 12 (Low Head) Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 32 Part Number: 215048 Description: Proximity Switch (Out of Stock) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 33 Part Number: 215577 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 199246 Description: Screw, Button Hd. Soc M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 35 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 36 Part Number: 215218 Description: Proximity Switch (Index Vise Clamp) Units Per Assembly: 1 Availability: In Stock Price: $109.88
Index No Ref.: 37 Part Number: 215219 Description: Cable (Quick Disconnect) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 323731 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 199923 Description: Screw, Soc. Hd. Cap M6-1.0 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 324540 Description: Switch Cover (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 520210 Description: Index Junction Box Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 206588 Description: Limit Switch (Band Tension) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 43 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5-0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 320626 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 199923 Description: Screw, Soc. Hd. Cap M6-1.0 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 47 Part Number: 198974 Description: Screw, Soc. Hd. Cap M6-1.0 x 50 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 133371 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 199114 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 50 Part Number: 215048 Description: Proximity Switch (Head Clear) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 51 Part Number: 215049 Description: Proximity Switch (Band Broken) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 215048 Description: Proximity Switch (Head Down) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 53 Part Number: 324410 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 199969 Description: Screw, Button Hd. Soc M6-1.0 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 55 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 56 Part Number: 324413 Description: Bracket Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 179016 Description: Stop Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 199898 Description: Screw, Soc. Hd. Cap M5-0.7 x 16 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 199348 Description: Washer, Lock M5 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 60 Part Number: 324382 Description: Kerr Solenoid Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 201696 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 63 Part Number: 215048 Description: Proximity Switch (Index Rear) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 64 Part Number: 324408 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 199969 Description: Screw, Button Hd. Soc M6-1.0 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 66 Part Number: 215048 Description: Proximity Switch (Index Forward) Units Per Assembly: 1 Availability: In Stock Price: $148.46
Index No Ref.: 67 Part Number: 215149 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 199923 Description: Screw, Soc. Hd. Cap M6-1.0 x 10 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 70 Part Number: 216481 Description: Bracket Cover (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 209176 Description: Actuator Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 199923 Description: Screw, Soc. Hd. Cap M6-1.0 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 174990 Description: Actuator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 419626 Description: Shroud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 75 Part Number: 199974 Description: Screw, Button Hd. Soc M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 76 Part Number: 517229 Description: Shield/Splash Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 77 Part Number: 199246 Description: Screw, Button Hd. Soc M6-1.0 x 12 Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 78 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 217667 Description: Corrugated Tubing (Black Poly) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 216897 Description: Electrical Assembly (Nesting Fixture Option) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 318399 Description: Reflector Mounting Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 416733 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 201031 Description: Reflector Units Per Assembly: 1 Availability: In Stock Price: $20.22
Index No Ref.: 2 Part Number: 198239 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 199260 Description: Washer, Flat 1/4 S.A.E. Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 199321 Description: Washer, Lock 1/4 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 324431 Description: Photo Cell Mounting Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 416734 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 214744 Description: Photo Cell Units Per Assembly: 1 Availability: In Stock Price: $462.81
Index No Ref.: 6 Part Number: 201686 Description: Cord Grip Connector (.157-.314) (Junction Box) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 200752 Description: Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 16968 Description: Tubing Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199683 Description: Screw, Soc. Hd.Cap #6-32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
