Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-7-362

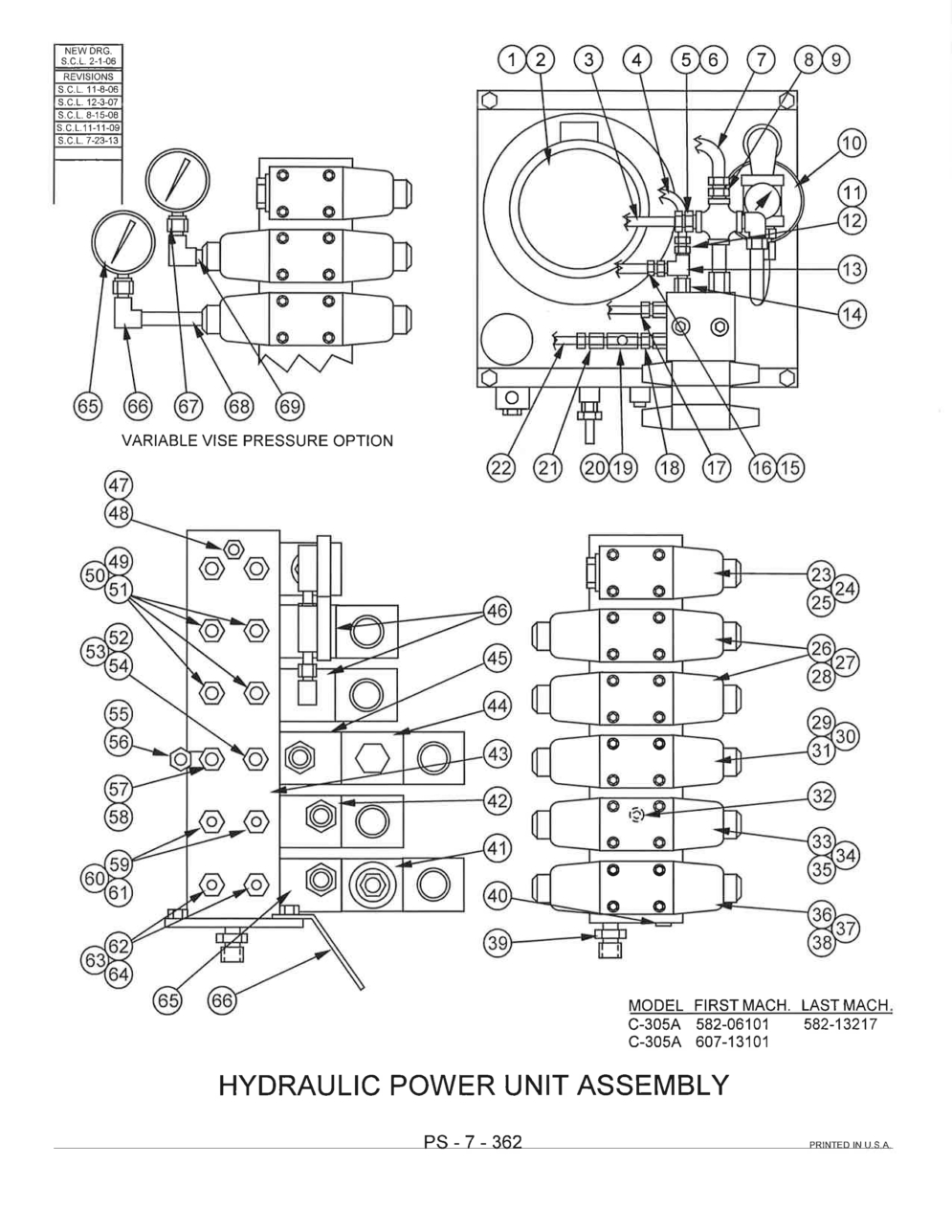

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 208150 Description: Hydraulic Power Unit Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 417871 Description: Hydraulic Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 416217 Description: Electric Motor (All Voltages) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 205642 Description: Motor Terminal Block (400V Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 256349 Description: Hydraulic Pump Units Per Assembly: 1 Availability: In Stock Price: $3,357.14
Index No Ref.: 3 Part Number: 206129 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 15019 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 17537 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 16607 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 15019 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 114878 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $8.26
Index No Ref.: 9 Part Number: 16607 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: Description: Oil Filter (Fleet Guard HH-6928) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 204469 Description: Filter Element Units Per Assembly: 1 Availability: In Stock Price: $166.77
Index No Ref.: 11 Part Number: 134352 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 16607 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 133542 Description: Service Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 203605 Description: Pipe Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 5-011517 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 206129 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 18676 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 260426 Description: Reducer Bushing Units Per Assembly: 2 Availability: In Stock Price: $2.85
Index No Ref.: 19 Part Number: 158827 Description: Needle Valve Units Per Assembly: 1 Availability: In Stock Price: $72.92
Index No Ref.: 20 Part Number: 14-014528 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $16.12
Index No Ref.: 21 Part Number: 203605 Description: Pipe Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 18676 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 1006387 Description: Directional Control Valve Units Per Assembly: 1 Availability: In Stock Price: $425.00
Index No Ref.: 24 Part Number: 198225 Description: Screw, Soc. Hd. Cap #10-24NC x 1 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 25 Part Number: 12144 Description: Washer, Lock #10 Hi-Collar Units Per Assembly: 4 Availability: In Stock Price: $1.28
Index No Ref.: 26 Part Number: 1003595 Description: Directional Control Valve Units Per Assembly: 2 Availability: In Stock Price: $524.37
Index No Ref.: 27 Part Number: 198225 Description: Screw, Soc. Hd. Cap #10-24NC x 1 (Standard) Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 199706 Description: Screw, Soc. Hd. Cap #10-24NC x 2-3/4 (Variable Vise Pressure Option) Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 12144 Description: Washer, Lock #10 Hi-Collar Units Per Assembly: 8 Availability: In Stock Price: $1.28
Index No Ref.: 29 Part Number: 1003596 Description: Directional Control Valve Units Per Assembly: 1 Availability: In Stock Price: $567.46
Index No Ref.: 30 Part Number: 601914 Description: Screw, Soc. Hd. Cap #10-24NC x 4-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 12144 Description: Washer, Lock #10 Hi-Collar Units Per Assembly: 4 Availability: In Stock Price: $1.28
Index No Ref.: 32 Part Number: 178942 Description: Orifice (.025 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 1003595 Description: Directional Control Valve Units Per Assembly: 1 Availability: In Stock Price: $524.37
Index No Ref.: 34 Part Number: 199658 Description: Screw, Soc. Hd. Cap #10-24NC x 2-1/2 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 35 Part Number: 12144 Description: Washer, Lock #10 Hi-Collar Units Per Assembly: 4 Availability: In Stock Price: $1.28
Index No Ref.: 36 Part Number: 1003596 Description: Directional Control Valve Units Per Assembly: 1 Availability: In Stock Price: $567.46
Index No Ref.: 37 Part Number: 601914 Description: Screw, Soc. Hd. Cap #10-24NC x 4-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 12144 Description: Washer, Lock #10 Hi-Collar Units Per Assembly: 4 Availability: In Stock Price: $1.28
Index No Ref.: 39 Part Number: 176704 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 113737 Description: Pipe Plug Units Per Assembly: 1 Availability: In Stock Price: $7.60
Index No Ref.: 41 Part Number: 260677 Description: Solenoid Valve and Manifold Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 265481 Description: Relief Valve (Pilot Operated) Units Per Assembly: 1 Availability: In Stock Price: $714.00
Index No Ref.: 43 Part Number: 416354 Description: Valve Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 179565 Description: Check Valve (Pilot Operated) Units Per Assembly: 1 Availability: In Stock Price: $803.83
Index No Ref.: 45 Part Number: 1001808 Description: Flow Control Valve Units Per Assembly: 1 Availability: In Stock Price: $265.30
Index No Ref.: 46 Part Number: 201637 Description: Pressure Reducing Valve (Variable Vise Pressure Option) Units Per Assembly: 2 Availability: In Stock Price: $661.89
Index No Ref.: 47 Part Number: 200567 Description: Test Port Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 202198 Description: Dust Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 204249 Description: Female Pipe Adaptor Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 309012 Description: Male Connector Units Per Assembly: 4 Availability: In Stock Price: $12.09
Index No Ref.: 51 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 52 Part Number: 204249 Description: Female Pipe Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 16607 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 179987 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 5-011517 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 206130 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 16607 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 179985 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 204248 Description: Female Pipe Adaptor Units Per Assembly: 2 Availability: In Stock Price: $2.05
Index No Ref.: 60 Part Number: 309010 Description: Male Connector Units Per Assembly: 2 Availability: In Stock Price: $8.12
Index No Ref.: 61 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 62 Part Number: 204249 Description: Female Pipe Adaptor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 309012 Description: Male Connector Units Per Assembly: 2 Availability: In Stock Price: $12.09
Index No Ref.: 64 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 65 Part Number: 265462 Description: Check Valve (Pilot Operated) Units Per Assembly: 1 Availability: In Stock Price: $467.00
Index No Ref.: 66 Part Number: 319107 Description: Cord Support Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Not Shown: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 256349 Description: Hydraulic Pump Units Per Assembly: 1 Availability: In Stock Price: $3,357.14
Index No Ref.: Part Number: Description: For Variable Vise Pressure Option: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 202393 Description: Gauge Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 120905 Description: 90 Degrees Elbow (Brass) Units Per Assembly: 2 Availability: In Stock Price: $9.66
Index No Ref.: 69 Part Number: 111543 Description: Pressure Snubber Units Per Assembly: 2 Availability: In Stock Price: $26.82
Index No Ref.: 70 Part Number: 35-001530 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 13808 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
