Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

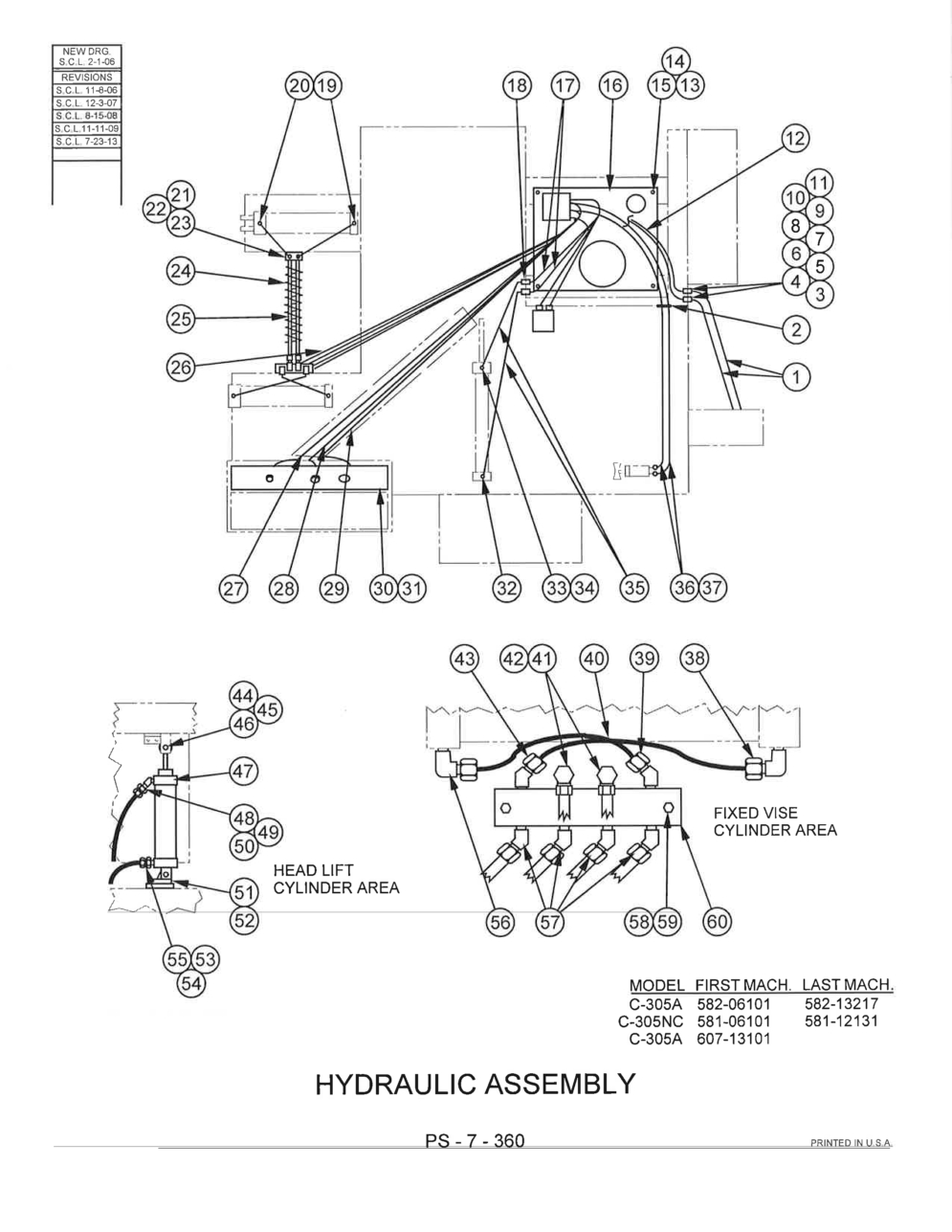

Page Code: PS-7-360

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 417871 Description: Hydraulic Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 20912 Description: Hydraulic Hose Units Per Assembly: 2 Availability: In Stock Price: $32.18
Index No Ref.: 2 Part Number: 197237 Description: Grommet Strip 3/16" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 8254 Description: 90 Degrees Street Elbow Units Per Assembly: 2 Availability: In Stock Price: $9.50
Index No Ref.: 4 Part Number: 260426 Description: Reducer Bushing Units Per Assembly: 2 Availability: In Stock Price: $2.85
Index No Ref.: 5 Part Number: 35-002344 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 158827 Description: Needle Valve Units Per Assembly: 1 Availability: In Stock Price: $72.92
Index No Ref.: 7 Part Number: 14-014528 Description: Close Nipple Units Per Assembly: 3 Availability: In Stock Price: $16.12
Index No Ref.: 8 Part Number: 121917 Description: Coupling (Male) Units Per Assembly: 2 Availability: In Stock Price: $17.45
Index No Ref.: 9 Part Number: 121932 Description: Dust Cap Units Per Assembly: 2 Availability: In Stock Price: $33.76
Index No Ref.: 10 Part Number: 121918 Description: Coupling (Female) Units Per Assembly: 2 Availability: In Stock Price: $44.37
Index No Ref.: 11 Part Number: 121931 Description: Dust Cap Units Per Assembly: 2 Availability: In Stock Price: $33.51
Index No Ref.: 12 Part Number: 15019 Description: Hydraulic Hose Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 198161 Description: Screw, Hex. Hd. Cap M10-1.5 x 20 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 199308 Description: Washer, Flat M10 Wrought Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 199346 Description: Washer, Lock M10 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 205482 Description: Hydraulic Power Unit Assembly (C-305NC) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 208150 Description: Hydraulic Power Unit Assembly (C-305A) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 18 Part Number: 309231 Description: Bulkhead Union Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 17537 Description: Reducer Bushing Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 20 Part Number: 8254 Description: 90 Degrees Street Elbow Units Per Assembly: 2 Availability: In Stock Price: $9.50
Index No Ref.: 21 Part Number: 313339 Description: Double Support Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 198166 Description: Screw, Hex. Hd. Cap M6-1.0 x 40 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 197388 Description: Poly Wire Wrap (1" Black) Units Per Assembly: A.R. Availability: In Stock Price: $6.02
Index No Ref.: 25 Part Number: 179986 Description: Hydraulic Hose Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 27 Part Number: 206130 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 206129 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 206129 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 206122 Description: Control Panel Assembly (Hydraulic) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 10 Availability: In Stock Price: $0.20
Index No Ref.: 32 Part Number: 309059 Description: 90 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 5-011517 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 309097 Description: 45 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 36 Part Number: 18676 Description: Hydraulic Hose Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 8151 Description: Swivel Adaptor Union Units Per Assembly: 2 Availability: In Stock Price: $8.40
Index No Ref.: 38 Part Number: 309060 Description: 90 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 309097 Description: 45 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 197265 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R Availability: In Stock Price: $3.64
Index No Ref.: 41 Part Number: 8254 Description: 90 Degrees Street Elbow Units Per Assembly: 2 Availability: In Stock Price: $9.50
Index No Ref.: 42 Part Number: 16259 Description: 90 Degrees Swivel Adaptor Union Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 309097 Description: 45 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 176733 Description: Self-Aligning Rod End Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 177014 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 199914 Description: Screw, Soc. Set M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 47 Part Number: 202930 Description: Head Lift Cylinder Units Per Assembly: 1 Availability: In Stock Price: $4,067.17
Index No Ref.: 48 Part Number: 17537 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 49 Part Number: 15957 Description: 45 Degrees Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 179987 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 417607 Description: Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 199896 Description: Screw, Soc. Hd. Cap M10-1.5 x 25 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 17537 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 54 Part Number: 8151 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: In Stock Price: $8.40
Index No Ref.: 55 Part Number: 179985 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 309060 Description: 90 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 309097 Description: 45 Degrees Male Elbow Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 198166 Description: Screw, Hex. Hd. Cap M6-1.0 x 40 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 60 Part Number: 146779 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown and Located in the Band Tension Cylinder Area: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 309005 Description: Male Connector (Band Tension Cylinder) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 309095 Description: 45 Degrees Male Elbow (Band Tension Cylinder) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 197264 Description: Nylon Tubing 1/4 O.D. (Band Tension Cylinder) Units Per Assembly: A.R. Availability: In Stock Price: $1.34
