Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

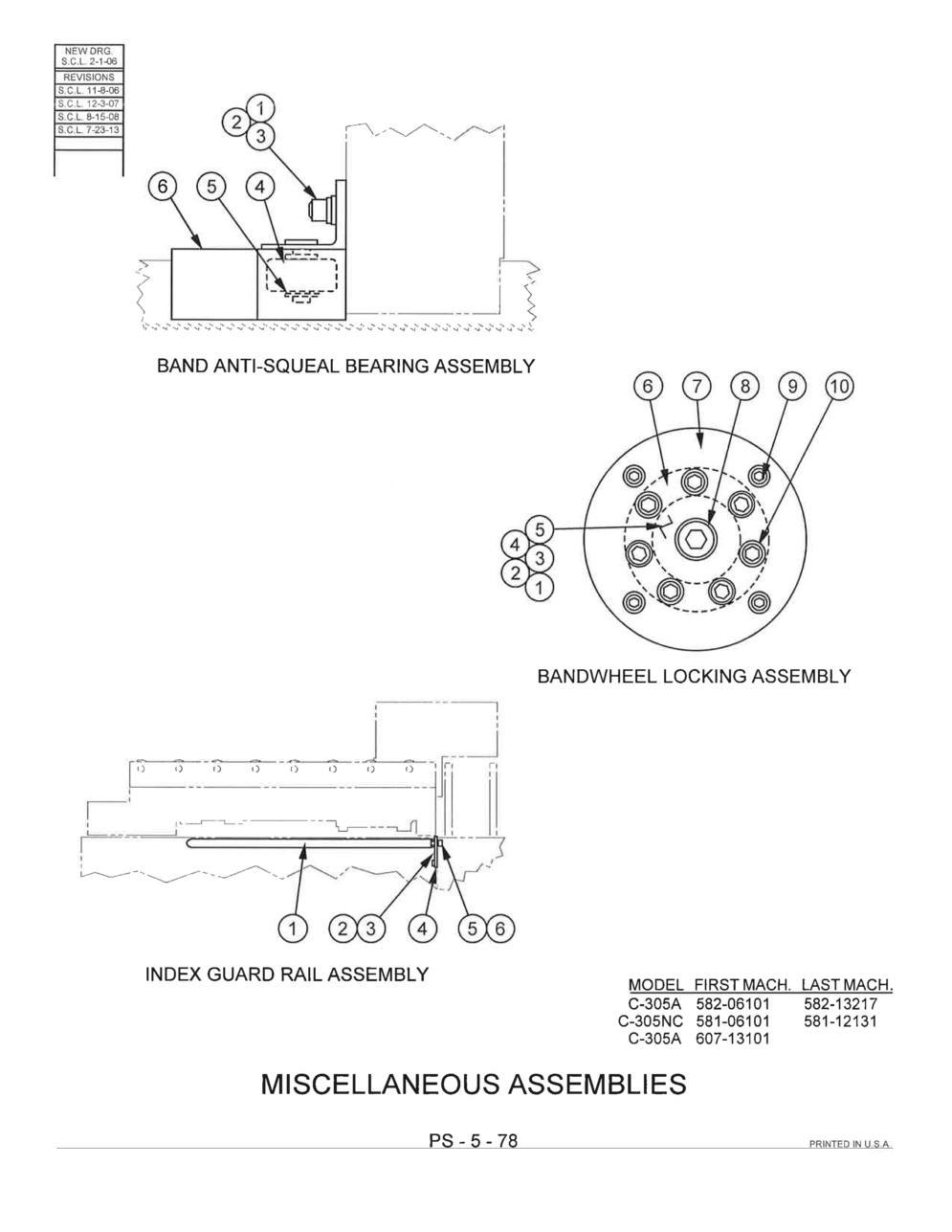

Page Code: PS-5-78

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 320337M Description: Band Anti-Squeal Bearing Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 199966 Description: Screw, Soc. Hd. Cap M6-1.0 x 16 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 2 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199965 Description: Washer, Flat 1/4 M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 109248 Description: Ball Bearing Units Per Assembly: 1 Availability: In Stock Price: $15.03
Index No Ref.: 5 Part Number: 11541 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 6 Part Number: 313727 Description: Bracket Weldment Units Per Assembly: 1 Availability: In Stock Price: $112.58
Index No Ref.: Ref.* Part Number: 1002213M Description: Bandwheel Locking Assembly (7-Bolt) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 111556 Description: Shim (.002) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 111552 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 111553 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 111554 Description: Shim (.008) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 111555 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6* Part Number: 1002206 Description: Locking Assembly (7-Bolt) (Includes Item #10 Also) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7* Part Number: 1002205 Description: Cap (7-Bolt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 199055 Description: Screw, Flat Hd. Soc. M12-1.75 x 30 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 9 Part Number: 199946 Description: Screw, Soc. Hd. Cap M8-1.25 x 20 (Low Head) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 199926 Description: Screw, Soc. Hd. Cap M8-1.25 x 25 Units Per Assembly: 7 or 8 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: *NOTE: Description: 8-Bolt Locking Assembly No Longer Available. Order Complete 7-Bolt Locking Assembly. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 206389 Description: Index Guard Rail Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 320460 Description: Guard Rail Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 199966 Description: Screw, Soc. Hd. Cap M6-1.0 x 16 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 215001 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 199844 Description: Screw, Soc. Hd. Cap M12-1.75 x 25 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199345 Description: Washer, Lock M12 Units Per Assembly: 2 Availability: Call For Info Price:
