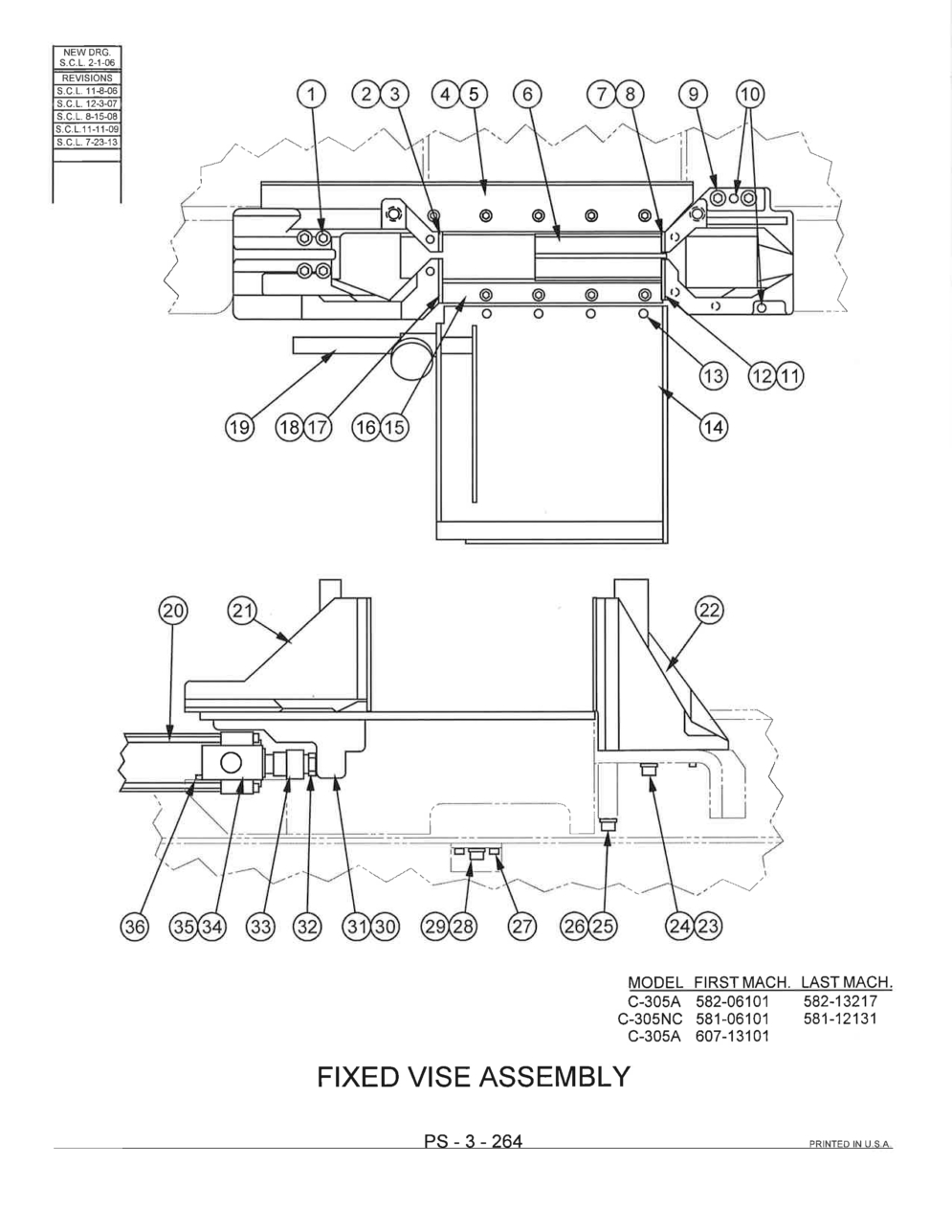

Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-3-264

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 211956 Description: Fixed Vise Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 198812 Description: Screw, Flat Hd. Soc. M10-1.5 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 417287 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $221.09
Index No Ref.: Part Number: 417750 Description: Wear Plate (Urethane) Units Per Assembly: 1 Availability: In Stock Price: $169.77
Index No Ref.: Part Number: 419447 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $764.34
Index No Ref.: 3 Part Number: 199905 Description: Screw, Flat Hd. Soc. M6-1.0 x 16 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 417285 Description: Guide Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 199983 Description: Screw, Soc. Hd. Cap M10-1.5 x 20 (Low Head) Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 324398 Description: Filler Plate (1" - 2") (25 - 50 mm) Units Per Assembly: 1 Availability: In Stock Price: $167.50
Index No Ref.: Part Number: 324399 Description: Filler Plate (3" - 4") (76 - 102 mm) Units Per Assembly: 1 Availability: In Stock Price: $210.00
Index No Ref.: Part Number: 324400 Description: Filler Plate (4" - 6") (102 - 152 mm) Units Per Assembly: 1 Availability: In Stock Price: $235.83
Index No Ref.: Part Number: 324401 Description: Filler Plate (6" -10") (152 - 254 mm) Units Per Assembly: 1 Availability: In Stock Price: $222.41
Index No Ref.: Part Number: 324402 Description: Filler Plate (10" -13") (254 - 330 mm) Units Per Assembly: 1 Availability: In Stock Price: $349.61
Index No Ref.: 7 Part Number: 417287 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $221.09
Index No Ref.: Part Number: 419447 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $764.34
Index No Ref.: 8 Part Number: 199905 Description: Screw, Flat Hd. Soc. M6-1.0 x 16 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 9 Part Number: 199918 Description: Screw, Soc. Hd. Cap M12-1.75 x 45 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 205184 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 417288 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $331.34
Index No Ref.: Part Number: 419446 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $528.64
Index No Ref.: 12 Part Number: 199905 Description: Screw, Flat Hd. Soc. M6-1.0 x 16 Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 199970 Description: Screw, Soc. Hd. Cap M6-1.0 x 12 (Low Head) Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 518346 Description: Discharge Tray Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 417284 Description: Guide Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 199983 Description: Screw, Soc. Hd. Cap M10-1.5 x 20 (Low Head) Units Per Assembly: 7 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 417288 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $331.34
Index No Ref.: Part Number: 417751 Description: Wear Plate (Urethane) Units Per Assembly: 1 Availability: In Stock Price: $194.12
Index No Ref.: Part Number: 419446 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $528.64
Index No Ref.: 18 Part Number: 199905 Description: Screw, Flat Hd. Soc. M6-1.0 x 16 Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 19 Part Number: 418666M Description: Work Fence Assembly (Adjustable) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 322347 Description: Fence Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 204755 Description: Knob (Metric) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 421311 Description: Fixed Vise Clamp Cylinder Units Per Assembly: 1 Availability: In Stock Price: $1,629.60
Index No Ref.: 21 Part Number: 516867 Description: Movable Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 516866 Description: Fixed Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 199918 Description: Screw, Soc. Hd. Cap M12-1.75 x 45 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 205188 Description: Washer, Lock M12 Hi-Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 199928 Description: Screw, Soc. Hd. Cap M12-1.75 x 120 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 205188 Description: Washer, Lock M12 Hi-Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 199988 Description: Screw, Soc. Set M10-1.5 x 20 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 199919 Description: Screw, Soc. Hd. Cap M10-1.5 x 35 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 199447 Description: Washer, Lock M10 Hi-Collar (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 516868 Description: Driver/Keeper Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 199742 Description: Screw, Soc. Hd. Cap M10-1.5 x 35 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 199189 Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 33 Part Number: 142830 Description: Aligning Rod End Coupler Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 417289 Description: Cylinder Block Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 199986 Description: Screw, Soc. Hd. Cap M12-1.75 x 55 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 205392 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
