Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-2-156

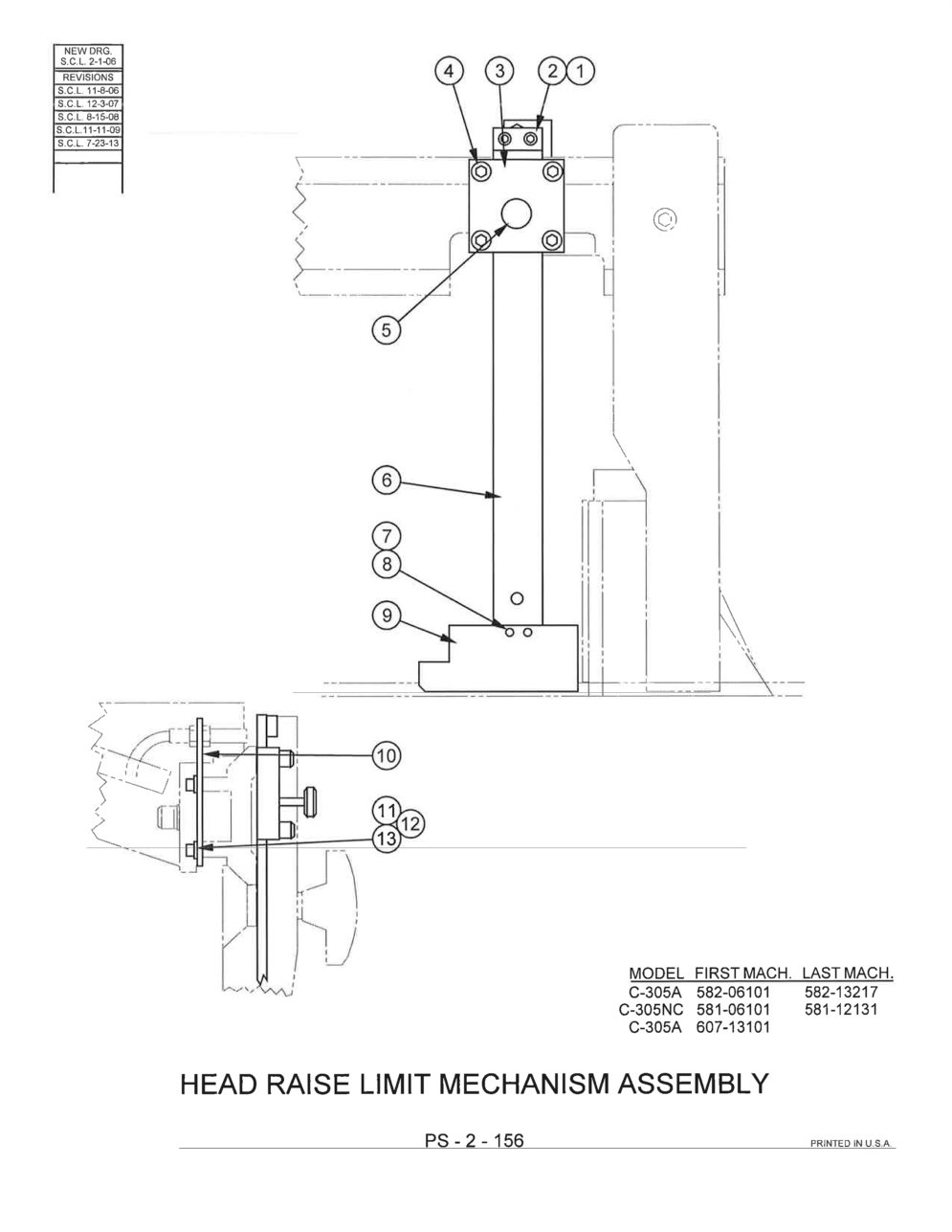

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 517142M Description: Head Raise Limit Mechanism Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 207895 Description: Stop Block Units Per Assembly: 1 Availability: In Stock Price: $51.63
Index No Ref.: 2 Part Number: 199916 Description: Screw, Soc. Hd. Cap M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 418139 Description: Block Units Per Assembly: 1 Availability: In Stock Price: $215.04
Index No Ref.: 4 Part Number: 199981 Description: Screw, Soc. Hd. Cap M8-1.25 x 30 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 204777 Description: Thumbscrew Assembly Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: Part Number: 204778 Description: Knob Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 199903 Description: Screw, Soc. Hd. Cap M8-1.25 x 20 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 320885 Description: Arm Units Per Assembly: 1 Availability: In Stock Price: $240.70
Index No Ref.: 7 Part Number: 199953 Description: Screw, Flat Hd. Soc. M4-0.7 x 8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 202383 Description: Adhesive (Loctite 242-31 Threadlock) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 320883 Description: Blade Units Per Assembly: 1 Availability: In Stock Price: $43.99
Index No Ref.: 10 Part Number: 319851 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 199898 Description: Screw, Soc. Hd. Cap M5-0.8 x 16 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 199244 Description: Washer, Flat M5 Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 199348 Description: Washer, Lock M5 Units Per Assembly: 3 Availability: In Stock Price: $4.20
