Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

Page Code: PS-10-87

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price

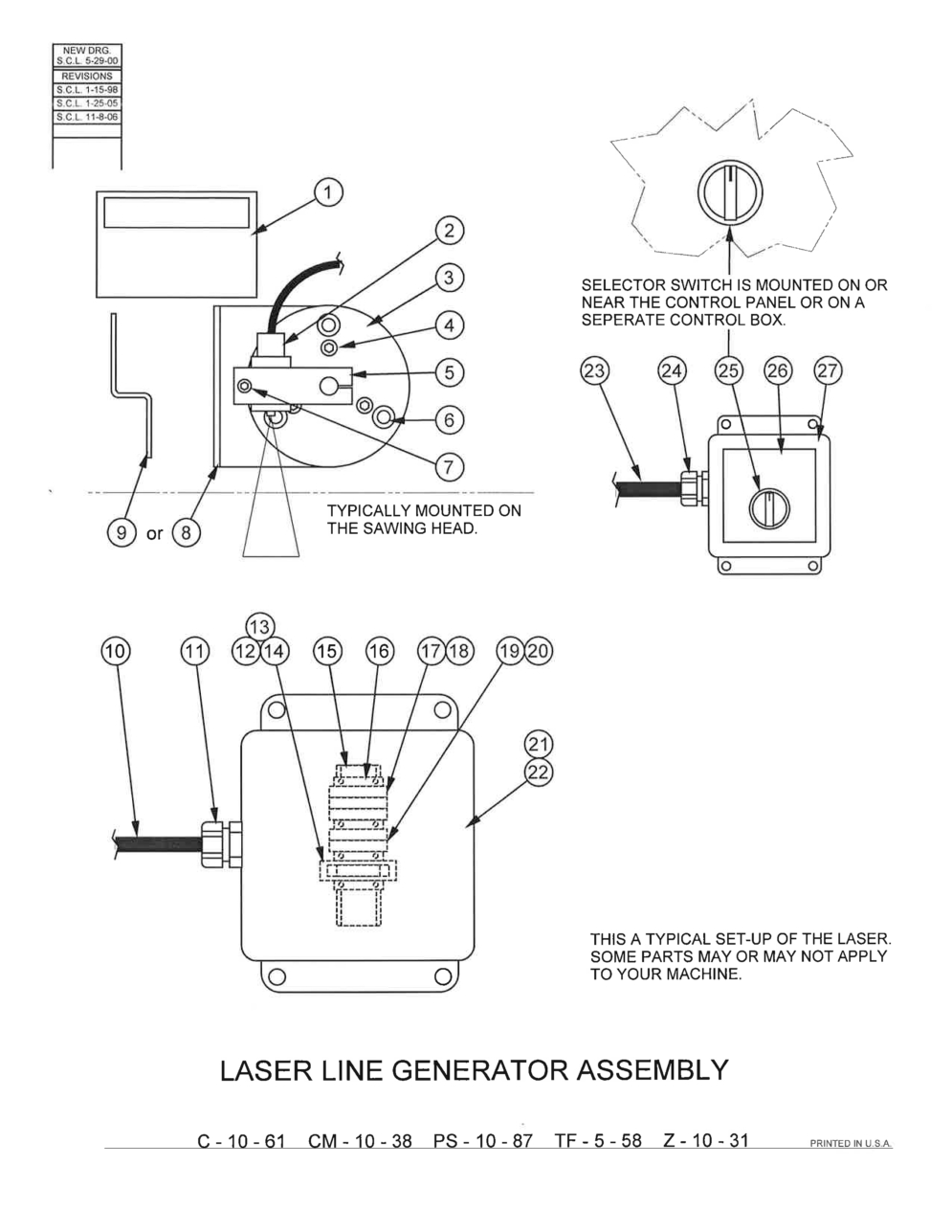

Index No Ref.: Ref. Part Number: Description: Laser Line Generator Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 212884 Description: Label (Caution - Laser) Units Per Assembly: 1 Availability: In Stock Price: $22.46
Index No Ref.: 2 Part Number: 212111 Description: Laser (.67 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 214973 Description: Laser (.75 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 220913 Description: Laser (Square) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 213129 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 199431 Description: Screw, Soc. Set M5-0.8 x 16 (Dog Pt.) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 322650 Description: Holder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199993 Description: Screw, Soc. Hd. Cap M6-1.0 x 20 Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 7 Part Number: 199966 Description: Screw, Soc. Hd. Cap M6-1.0 x 16 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 216192 Description: Mounting Bracket (TF-2025 Series) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 323646 Description: Mounting Bracket Weldment (C-305 Series) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 221012 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 197332 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R Availability: In Stock Price: $1.28
Index No Ref.: Part Number: 209820 Description: Electrical Cord (#24-4 Conductor) Units Per Assembly: A.R Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 201686 Description: Cord Grip Connector (.157-.314) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: In Stock Price: $5.96
Index No Ref.: 12 Part Number: 202909 Description: Fuse Holder Units Per Assembly: 1 Availability: In Stock Price: $41.51
Index No Ref.: 13 Part Number: 201477 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 211977 Description: Fuse (2 Amp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A R. Availability: In Stock Price: $12.36
Index No Ref.: 16 Part Number: 200618 Description: End Stop Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 200615 Description: Terminal Block Units Per Assembly: 3 Availability: In Stock Price: $2.66
Index No Ref.: 18 Part Number: 200617 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 209033 Description: Terminal Block Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 209034 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 134966 Description: Junction Box (10 x 8 x 4) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 12180 Description: Junction Box (12 x 10 x 5) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 136047 Description: Junction Box (6 x 6 x 4) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 134967 Description: Panel (For 10 x 8 x 4 Box) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 136386 Description: Panel (For 12 x 10 x 5 Box) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 220923 Description: Panel (For 6 x 6 x 4 Box) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 197332 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R Availability: In Stock Price: $1.28
Index No Ref.: Part Number: 209820 Description: Electrical Cord (#24-4 Conductor) Units Per Assembly: A.R Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 201686 Description: Cord Grip Connector (.157-.314) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: In Stock Price: $5.96
Index No Ref.: 25 Part Number: 211111 Description: Selector Switch Assembly (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 217700 Description: Escutcheon (Laser) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 2992 Description: Junction Box (4 x 4 x 2) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 208075 Description: Pushbutton Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 201450 Description: Power Supply Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 202922 Description: Jumper Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207752 Description: Cable Tie Mount Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 197325 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197197 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 215909 Description: Field Alignment and Adjustment Summary (Laser Installation) Units Per Assembly: 1 Availability: Call For Info Price:
