Exploded View Parts Ordering: C-305A_607

C-305A 607 Online Parts Manual

Serial No: 607-13101

Download PDF Version

Return to manuals

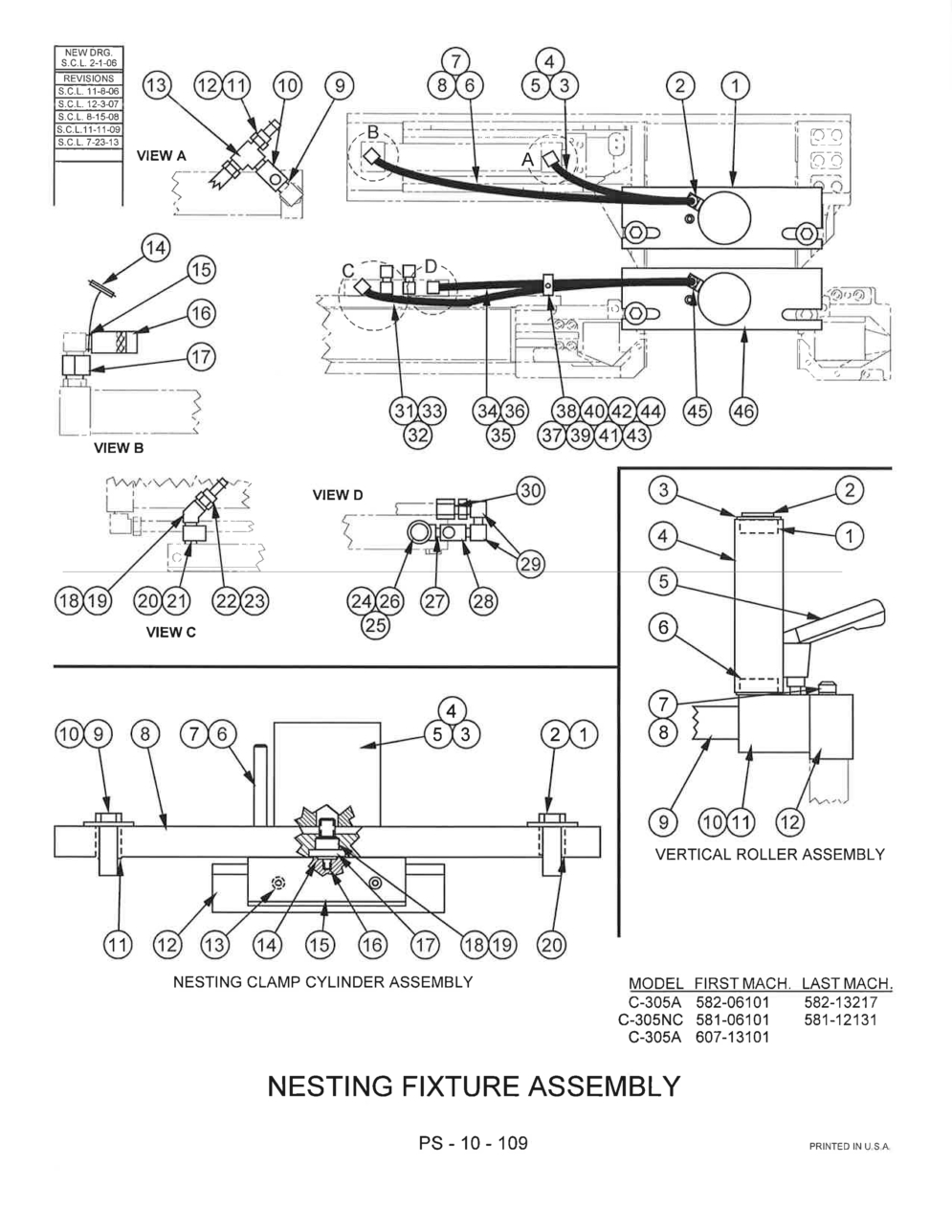

Page Code: PS-10-109

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 216898 Description: Nesting Fixture Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 419790 Description: Nesting Clamp Cylinder Assembly (Index Vise) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 203605 Description: Pipe Adaptor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 2102 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 123549 Description: Coupler (Female) Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 5 Part Number: 123573 Description: Plug Units Per Assembly: 1 Availability: In Stock Price: $12.60
Index No Ref.: 6 Part Number: 149918 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 123572 Description: Coupler Tip (Male) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 123574 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 14-003507 Description: Close Nipple Units Per Assembly: 2 Availability: In Stock Price: $4.74
Index No Ref.: 10 Part Number: 144360 Description: Restrictor Valve Units Per Assembly: 1 Availability: In Stock Price: $93.82
Index No Ref.: 11 Part Number: 123572 Description: Coupler Tip (Male) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 123574 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 120857 Description: Service Tee (Brass) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 14 Part Number: 123573 Description: Plug Units Per Assembly: 1 Availability: In Stock Price: $12.60
Index No Ref.: 15 Part Number: 14-003507 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $4.74
Index No Ref.: 16 Part Number: 123549 Description: Coupler (Female) Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 17 Part Number: 120857 Description: Service Tee (Brass) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 18 Part Number: 121933 Description: 45 Degrees Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $3.25
Index No Ref.: 19 Part Number: 14-003507 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $4.74
Index No Ref.: 20 Part Number: 120857 Description: Service Tee (Brass) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 21 Part Number: 309097 Description: 45 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 123572 Description: Coupler Tip (Male) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 123574 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 120857 Description: Service Tee (Brass) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 25 Part Number: 123549 Description: Coupler (Female) Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 26 Part Number: 123573 Description: Plug Units Per Assembly: 1 Availability: In Stock Price: $12.60
Index No Ref.: 27 Part Number: 14-003507 Description: Close Nipple Units Per Assembly: 2 Availability: In Stock Price: $4.74
Index No Ref.: 28 Part Number: 144360 Description: Restrictor Valve Units Per Assembly: 1 Availability: In Stock Price: $93.82
Index No Ref.: 29 Part Number: 8254 Description: 90 Degrees Street Elbow Units Per Assembly: 2 Availability: In Stock Price: $9.50
Index No Ref.: 30 Part Number: 309010 Description: Male Connector Units Per Assembly: 1 Availability: In Stock Price: $8.12
Index No Ref.: 31 Part Number: 146646 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 123572 Description: Coupler Tip (Male) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 123574 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 200930 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 123549 Description: Coupler (Female) Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 36 Part Number: 123573 Description: Plug Units Per Assembly: 1 Availability: In Stock Price: $12.60
Index No Ref.: 37 Part Number: 320675 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 199916 Description: Screw, Soc. Hd. Cap M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 39 Part Number: 313339 Description: Double Support Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 198031 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 12736 Description: Washer Units Per Assembly: 3 Availability: In Stock Price: $1.28
Index No Ref.: 42 Part Number: 199158 Description: Nut, Wing 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 199323 Description: Washer, Lock 5/16 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 44 Part Number: 199258 Description: Washer, Flat #10 S.A.E. Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 45 Part Number: 203605 Description: Pipe Adaptor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 419789 Description: Nesting Clamp Cylinder Assembly (Fixed Vise) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 514905 Description: Vertical Roller Assembly (Nesting Fixture) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 216897 Description: Electrical Assembly (Nesting Fixture) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 419789 Description: Nesting Clamp Cylinder Assembly (Fixed Vise) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 419790 Description: Nesting Clamp Cylinder Assembly (Index Vise) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 199061 Description: Screw, Hex. Hd. Cap M16-2.0 x 45 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 199305 Description: Washer, Flat 5/8 Wrought Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 323620 Description: Nesting Clamp Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 198244 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 149157 Description: 45 Degrees Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 323633 Description: Shaft Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 7 Part Number: 105710 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 8 Part Number: 419793 Description: Mounting Plate Sub-Assembly (Fixed) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 419794 Description: Mounting Plate Sub-Assembly (Index) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199061 Description: Screw, Hex. Hd. Cap M16-2.0 x 45 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 199305 Description: Washer, Flat 5/8 Wrought Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 204197 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 318419 Description: Slide Bar (1.25 x 5.25) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 323632 Description: Slide Bar (1.25 x 6.50) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 323631 Description: Slide Bar (3.00 x 5.25) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 323634 Description: Slide Bar (3.00 x 6.50) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 198554 Description: Screw, Soc. Set 3/8-16NC x 1/2 (Brass Tip) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 215423 Description: Spherical Washer Units Per Assembly: 1 Availability: In Stock Price: $16.12
Index No Ref.: 15 Part Number: 519650 Description: Clamp Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 215426 Description: Drive Pin Units Per Assembly: 1 Availability: In Stock Price: $24.12
Index No Ref.: 17 Part Number: 215416 Description: Collar Units Per Assembly: 1 Availability: In Stock Price: $67.17
Index No Ref.: 18 Part Number: 323830 Description: Adaptor Sub-Assembly Units Per Assembly: 1 Availability: In Stock Price: $267.99
Index No Ref.: 19 Part Number: 202383 Description: Adhesive (Loctite #242-31 Threadlok) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 204196 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 514905 Description: Vertical Roller Assembly (Nesting Fixture) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 173591 Description: Bearing Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 203387 Description: Spindle Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 173590 Description: Retaining Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 319460 Description: Roller Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 172460 Description: Clamping Handle Units Per Assembly: 2 Availability: In Stock Price: $34.89
Index No Ref.: 6 Part Number: 173591 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 198287 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 178877 Description: Pivot Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 317829 Description: Pivot Arm Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 198448 Description: Screw, Soc. Set 3/8-16NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 317827 Description: Roller Block Units Per Assembly: 2 Availability: Call For Info Price:
