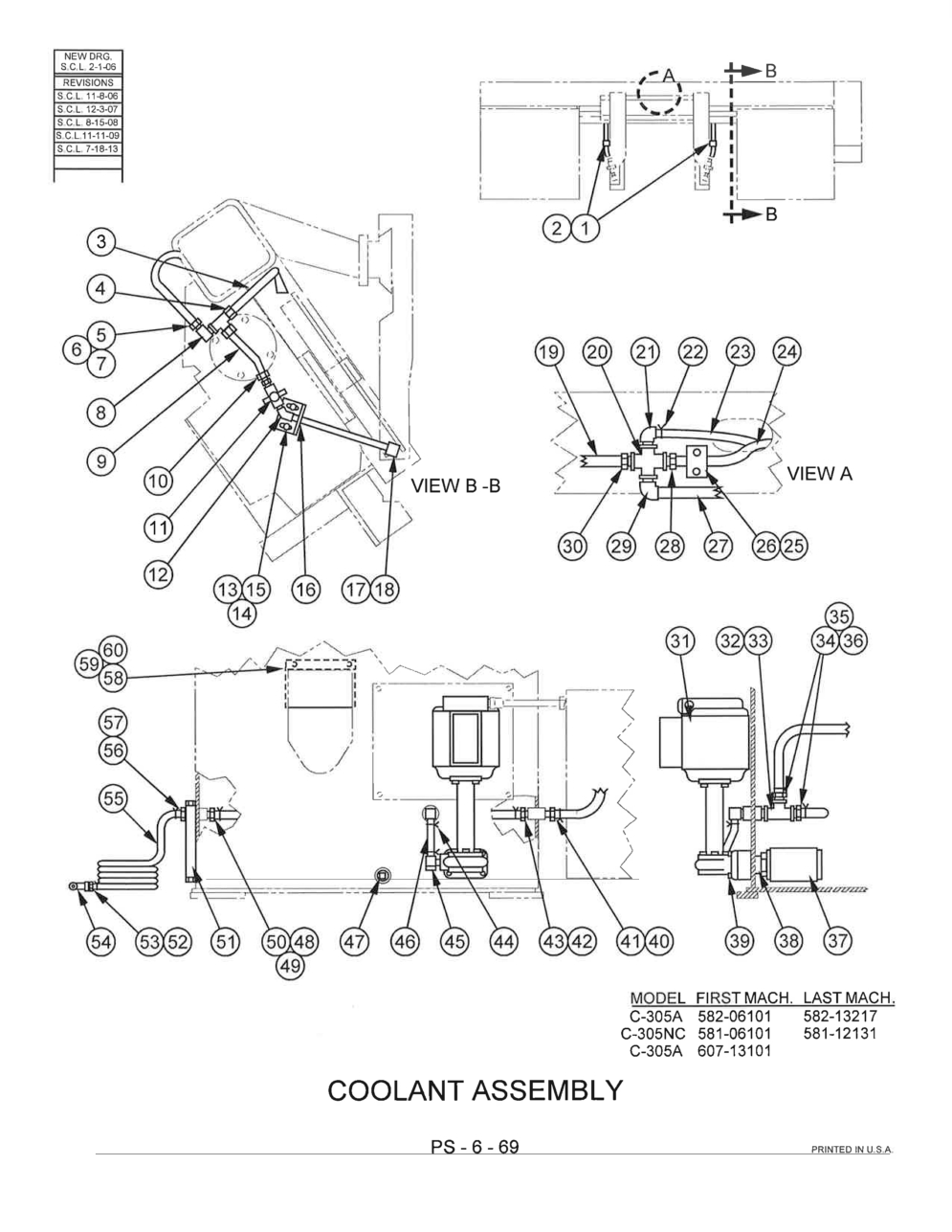

Exploded View Parts Ordering: C-305A_582
C-305A 582 Online Parts Manuals
Serial No: 582-06101 End Date 582-13217
Page Code: PS-6-69
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 203750 | Description: Coolant Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 9955 | Description: Tubing Clamp | Units Per Assembly: 2 | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 2 | Part Number: 198960 | Description: Screw, Pan lid. Mach. M6-1.0 x 10 (Slotted) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 320462 | Description: Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 309189 | Description: Female Run Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 14928 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 17902 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 7 | Part Number: 197094 | Description: Neoprene Hose 11/16 O.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.44 |
| Index No Ref.: 8 | Part Number: 148887 | Description: 90 degrees Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $14.79 |
| Index No Ref.: 9 | Part Number: 172067 | Description: Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 309015 | Description: Male Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 178934 | Description: Ball Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $40.66 |
| Index No Ref.: 12 | Part Number: 1546 | Description: 45 degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 199966 | Description: Screw, Soc. Hd. Cap M6-1.0 x 16 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16 | Part Number: 206541 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 8254 | Description: 90 degrees Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 18 | Part Number: 319420 | Description: Flushing Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 197144 | Description: Plastic Tubing 3/8 O.D. (Clear) | Units Per Assembly: A R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 20 | Part Number: 2028 | Description: Pipe Cross | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 133439 | Description: 90 degrees Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 17902 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 23 | Part Number: 197094 | Description: Neoprene Hose 11/16 O.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.44 |
| Index No Ref.: 24 | Part Number: 197098 | Description: Neoprene Hose 1/2 I.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.07 |
| Index No Ref.: 25 | Part Number: 313358 | Description: Single Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 198163 | Description: Screw, Hex. Hd. Cap M6-1.0 x 20 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 197144 | Description: Plastic Tubing 3/8 O.D. (Clear) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 28 | Part Number: 102298 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 176677 | Description: 90 degrees Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 103316 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $2.84 |
| Index No Ref.: 31 | Part Number: 205471 | Description: Coolant Pump (208V, 230V, 460V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 205472 | Description: Coolant Pump (220V, 400V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 205473 | Description: Coolant Pump (575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 35-003377 | Description: Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 14-000661 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 8212 | Description: Barbed Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 35-006888 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 197098 | Description: Neoprene Hose 1/2 I.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.07 |
| Index No Ref.: 37 | Part Number: 216895 | Description: Diffuser/Strainer | Units Per Assembly: 1 | Availability: In Stock | Price: $196.18 |
| Index No Ref.: 38 | Part Number: 106059 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 199656 | Description: Screw, Soc. Hd. Cap M6-1.0 x 22 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 40 | Part Number: 8212 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 35-006888 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 8212 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 35-006888 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 35-006888 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 203967 | Description: 90 degrees Barbed Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 197098 | Description: Neoprene Hose 1/2 I.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.07 |
| Index No Ref.: 47 | Part Number: 5-004618 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 8212 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 35-006888 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 197098 | Description: Neoprene Hose 1/2 I.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.07 |
| Index No Ref.: 51 | Part Number: 108654 | Description: View Gauge | Units Per Assembly: 1 | Availability: In Stock | Price: $69.49 |
| Index No Ref.: 52 | Part Number: 176816 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $2.83 |
| Index No Ref.: 53 | Part Number: 17902 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 54 | Part Number: 176420 | Description: Hose Nozzle | Units Per Assembly: 1 | Availability: In Stock | Price: $25.50 |
| Index No Ref.: 55 | Part Number: 197094 | Description: Neoprene Hose 11/16 O.D. (Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.44 |
| Index No Ref.: 56 | Part Number: 9667 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $9.91 |
| Index No Ref.: 57 | Part Number: 17902 | Description: Hose Clamp | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 58 | Part Number: 223958 | Description: Neoprene Deflector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 223959 | Description: Bar Retainer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5-0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 123328 | Description: Pipe Plug (Base Plate) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 316116 | Description: Hook | Units Per Assembly: 1 | Availability: Call For Info | Price: |
