Exploded View Parts Ordering: 400S_597

400S 597 Online Parts Manual

Serial No: 597-10101

Download PDF Version

Return to manuals

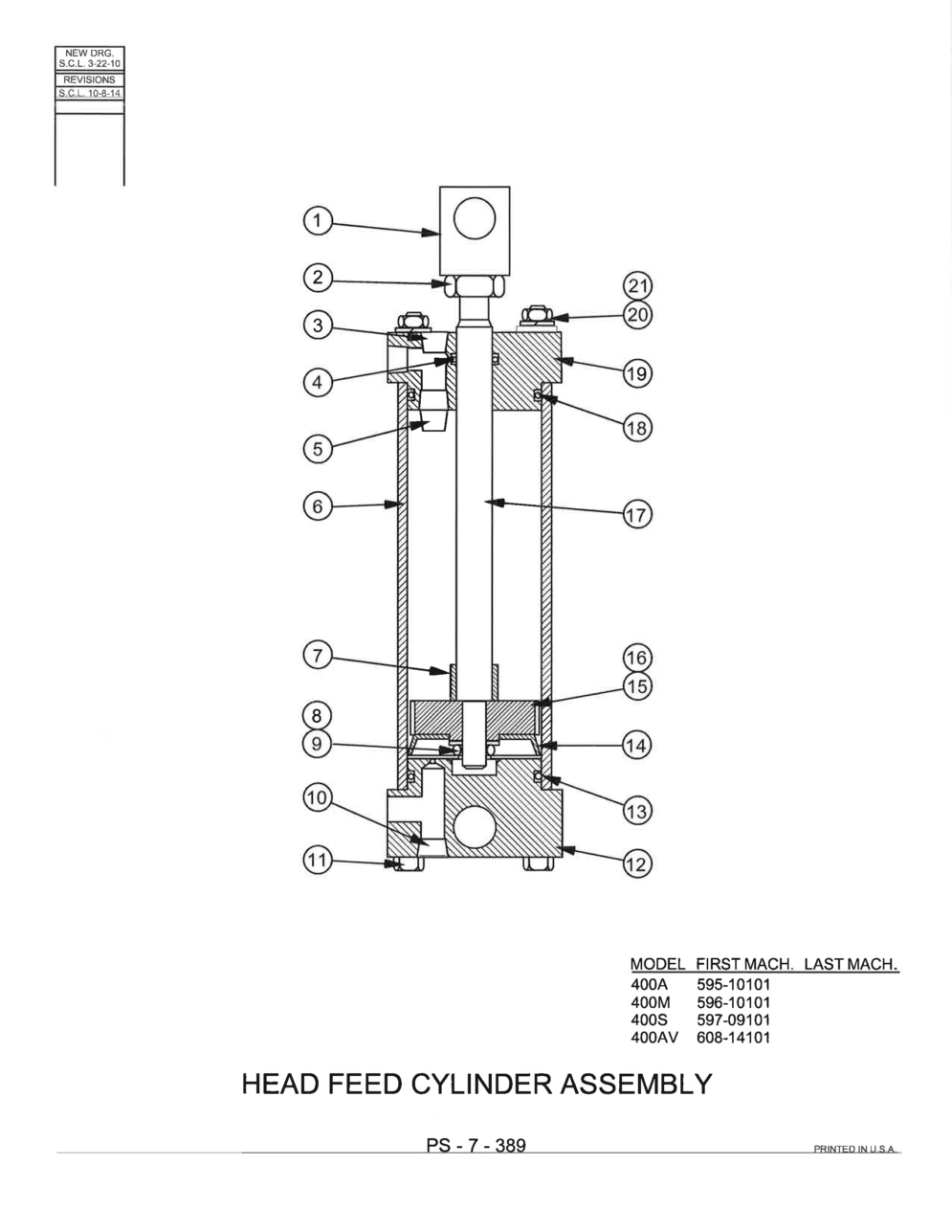

Page Code: PS-7-389

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 416087 Description: Head Feed Cylinder Assembly Units Per Assembly: Availability: In Stock Price: $1,497.47
Index No Ref.: 1 Part Number: 175273 Description: Lug Units Per Assembly: 1 Availability: In Stock Price: $99.18
Index No Ref.: 2 Part Number: 199130 Description: Nut, Hex. Jam 7/16-14NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 123333 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 203799 Description: Quad Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 5 Part Number: 14-014528 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $16.12
Index No Ref.: 6 Part Number: 316346 Description: Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 175586 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 8 Part Number: 013245 Description: Locknut 3/8-16NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199302 Description: Washer, Flat 3/8 Wrought Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 261233 Description: Pipe Plug Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 11 Part Number: 175476 Description: Tie Rod Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 316349 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 001508 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 204981 Description: Piston Seal Cup Units Per Assembly: 1 Availability: In Stock Price: $50.61
Index No Ref.: 15 Part Number: 319876 Description: Piston Units Per Assembly: 1 Availability: In Stock Price: $57.62
Index No Ref.: 16 Part Number: 202383 Description: Adhesive Sealant (Loctite #242-31 Threadlok) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 319533 Description: Rod Units Per Assembly: 1 Availability: In Stock Price: $52.98
Index No Ref.: 18 Part Number: 001508 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 316348 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 199176 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 199321 Description: Washer, Lock 1/4 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
