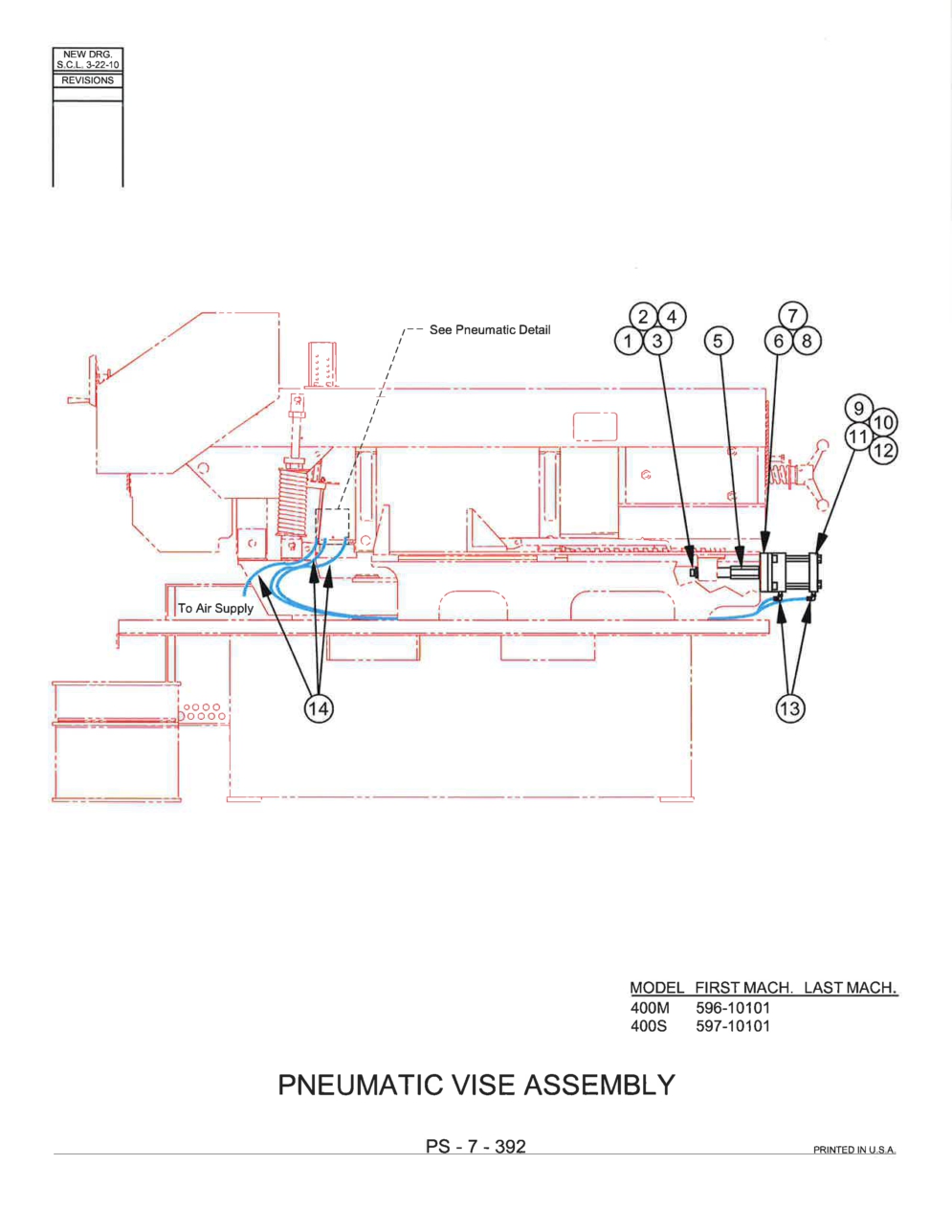

Exploded View Parts Ordering: 400M_596
Page Code: PS-7-392
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
1008208 |
Description:
Pneumatic Vise Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
199051
|
Description:
Screw, Soc. Hd. Cap M6-1.0 x 12 |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
2 |
Part Number:
199254
|
Description:
Washer, Lock M6 Hi-Collar |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
3 |
Part Number:
109993
|
Description:
Washer |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$3.26 |
Index No Ref.:
4 |
Part Number:
1008204 |
Description:
Cylinder Adaptor |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
1008209 |
Description:
Spacer |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
199911 |
Description:
Screw, Soc. Hd. Cap M10-1.5 x 40 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
199346
|
Description:
Washer, Lock M10 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
8 |
Part Number:
318130
|
Description:
Pneumatic Vise Clamp Cylinder |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1,751.27 |
Index No Ref.:
9 |
Part Number:
199911 |
Description:
Screw, Soc. Hd. Cap M10-1.5 x 40 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
199346
|
Description:
Washer, Lock M10 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
11 |
Part Number:
198976
|
Description:
Washer, Flat M10 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
12 |
Part Number:
200133
|
Description:
Male Connector |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$6.72 |
Index No Ref.:
13 |
Part Number:
197438
|
Description:
Polyethylene Tubing 1/4 O.D. (Blue) |
Units Per Assembly:
A.R. |
Availability:
In Stock
|
Price:
$1.28 |
