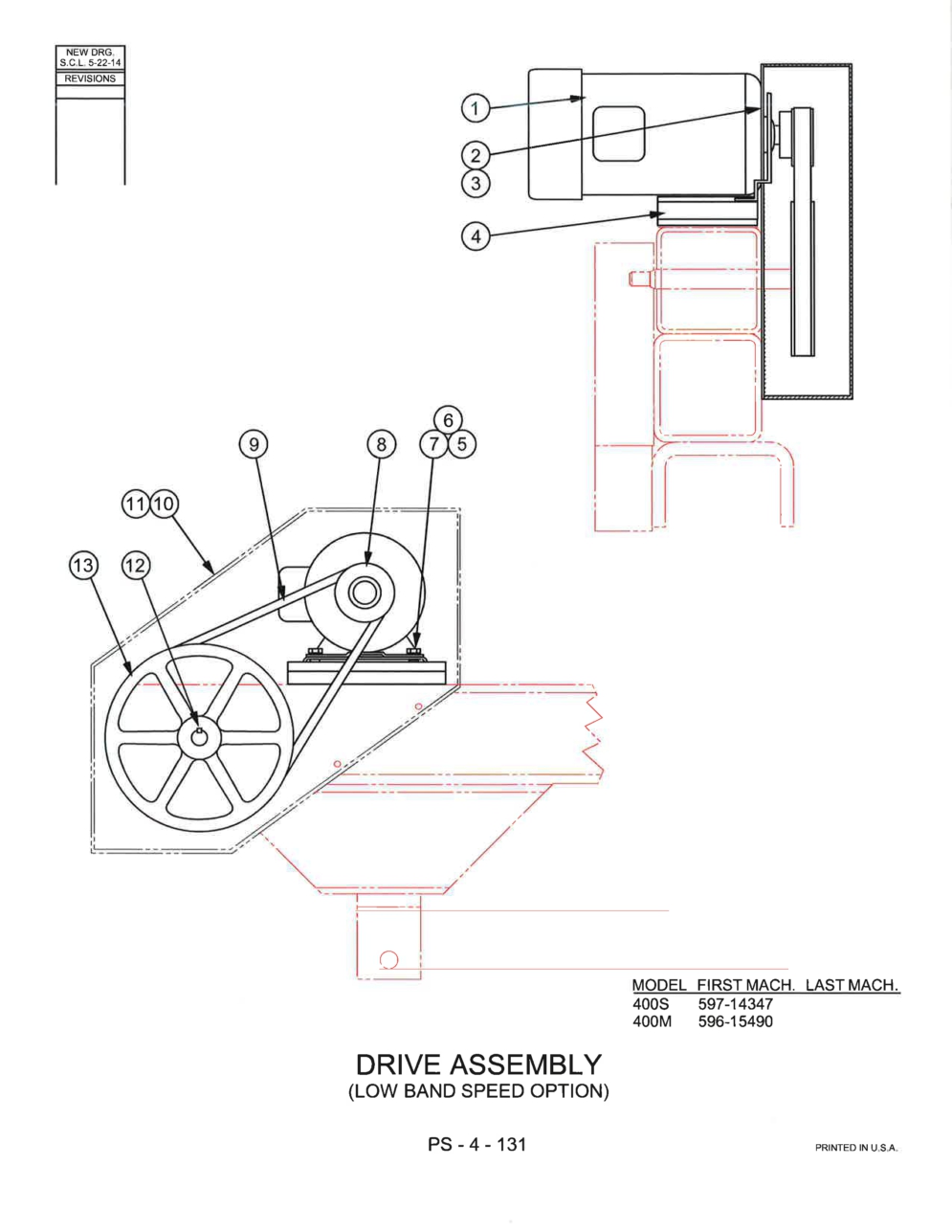

Exploded View Parts Ordering: 400M_596

400M 596 Online Parts Manual

Serial No: 596-10101

Download PDF Version

Return to manuals

Page Code: PS-4-131

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Drive Assembly (Low Band Speed Option) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 199899 Description: Screw, Button Hd., Soc. M6-1.0 x 16 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 2 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199188 Description: Nut, Hex. M6-1.0 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 417913 Description: Motor Slide Weldnnent Units Per Assembly: 1 Availability: In Stock Price: $209.12
Index No Ref.: 5 Part Number: 417914 Description: Adaptor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 207433 Description: Variable Pulley Units Per Assembly: 1 Availability: In Stock Price: $391.94
Index No Ref.: 7 Part Number: 198986 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 320833 Description: Cover Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 1009175 Description: Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 6 Availability: In Stock Price: $0.20
Index No Ref.: 11 Part Number: 1009176 Description: Cover Mounting Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 199969 Description: Screw, Button Hd. Soc. M6-1.0 x 10 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 209639 Description: Electric Motor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 209640 Description: Electric Motor (575V Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 1008876 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 198979 Description: Screw, Button Hd. Soc. M5-0.8 x 6 Units Per Assembly: 1 Availability: In Stock Price: $3.96
Index No Ref.: 16 Part Number: 179476 Description: Escutcheon (Band Speed) (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 209449 Description: Escutcheon (Band Speed) (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 199239 Description: Screw, Hex. Hd. Cap M8-1.25 x 20 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 199968 Description: Washer, Lock M8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 19 Part Number: 198574 Description: Washer, Flat M8 Wrought Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 417748 Description: Base Motor Slide Units Per Assembly: 1 Availability: In Stock Price: $224.78
Index No Ref.: 21 Part Number: 199056 Description: Screw, Soc. Hd. Cap M8-1.25 x 16 (Low Head) Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 22 Part Number: 211937 Description: V-Belt Units Per Assembly: 1 Availability: In Stock Price: $43.00
Index No Ref.: 23 Part Number: 34-005410 Description: Set Screw Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 199289 Description: Washer, Flat M12 Wrought Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 25 Part Number: 142408 Description: Flanged Bearing Units Per Assembly: 1 Availability: In Stock Price: $7.92
Index No Ref.: 26 Part Number: 318133 Description: Band Speed Adjustment Handwheel Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 199289 Description: Washer, Flat M12 Wrought Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 004443 Description: Key Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 1008792 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 167329 Description: Nylon Clamp Units Per Assembly: 2 Availability: Call For Info Price:
