Exploded View Parts Ordering: 400M_596

400M 596 Online Parts Manual

Serial No: 596-10101

Download PDF Version

Return to manuals

Page Code: PS-10-142

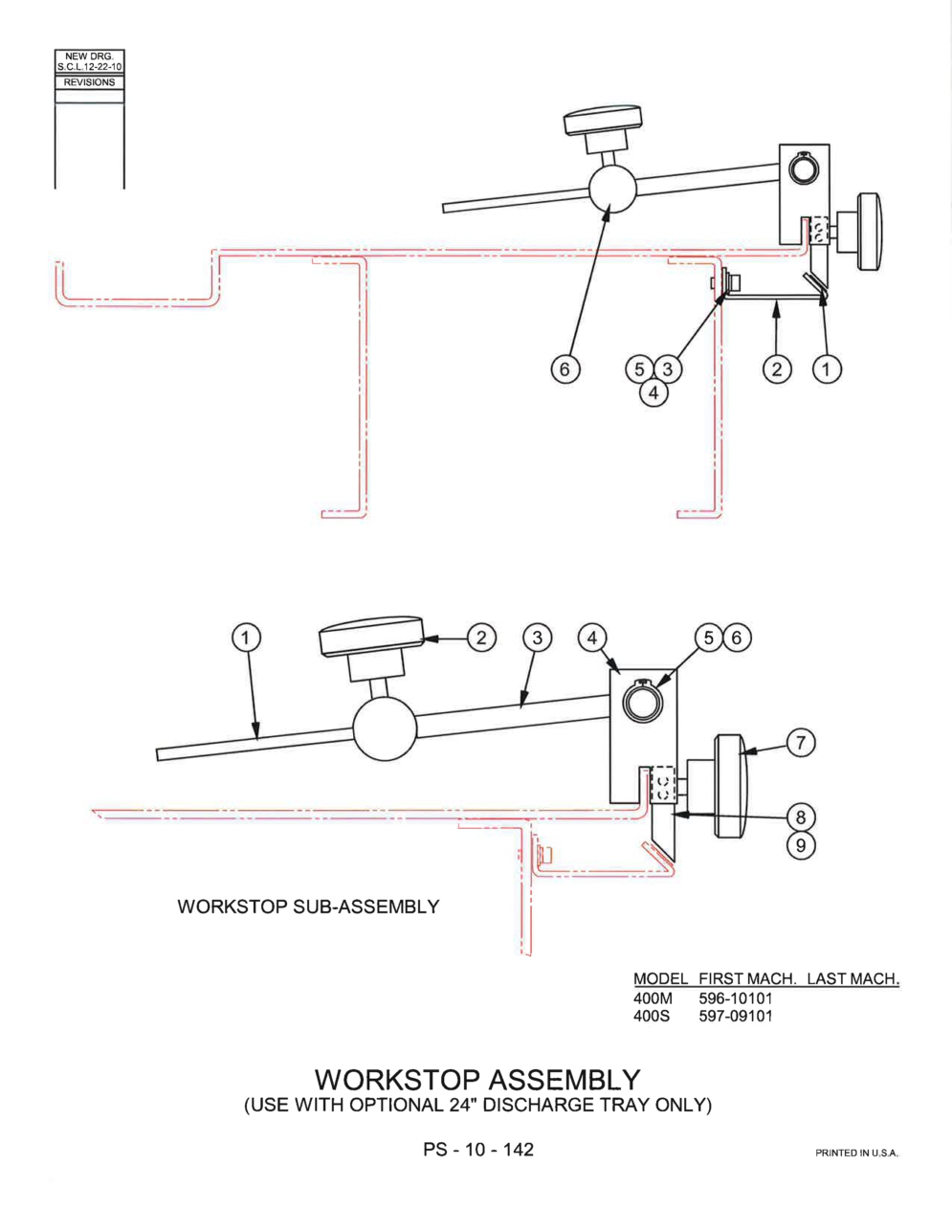

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 224531 Description: Workstop Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 176463 Description: Rule (18"/455 mm) Units Per Assembly: 1 Availability: In Stock Price: $50.00
Index No Ref.: 2 Part Number: 327169 Description: Rule Support Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 199051 Description: Screw, Soc. Hd. Cap M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 199579 Description: Washer, Flat M6 Wrought Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 320602 Description: Workstop Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 320602 Description: Workstop Sub-Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 200506 Description: Adjusting Rod Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 206892 Description: Knob Units Per Assembly: 1 Availability: In Stock Price: $19.28
Index No Ref.: 3 Part Number: 320603 Description: Pivot Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 320604 Description: Pivot Block Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 200510 Description: Pivot Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 35-008688 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $4.00
Index No Ref.: 7 Part Number: 206892 Description: Knob Units Per Assembly: 1 Availability: In Stock Price: $19.28
Index No Ref.: 8 Part Number: 208030 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 198722 Description: Screw, Button Hd. Soc. M4-0.7 x 6 Units Per Assembly: 2 Availability: In Stock Price: $4.20
