Exploded View Parts Ordering: 400A_595

400A 595 Online Parts Manual

Serial No: 595-10101

Download PDF Version

Return to manuals

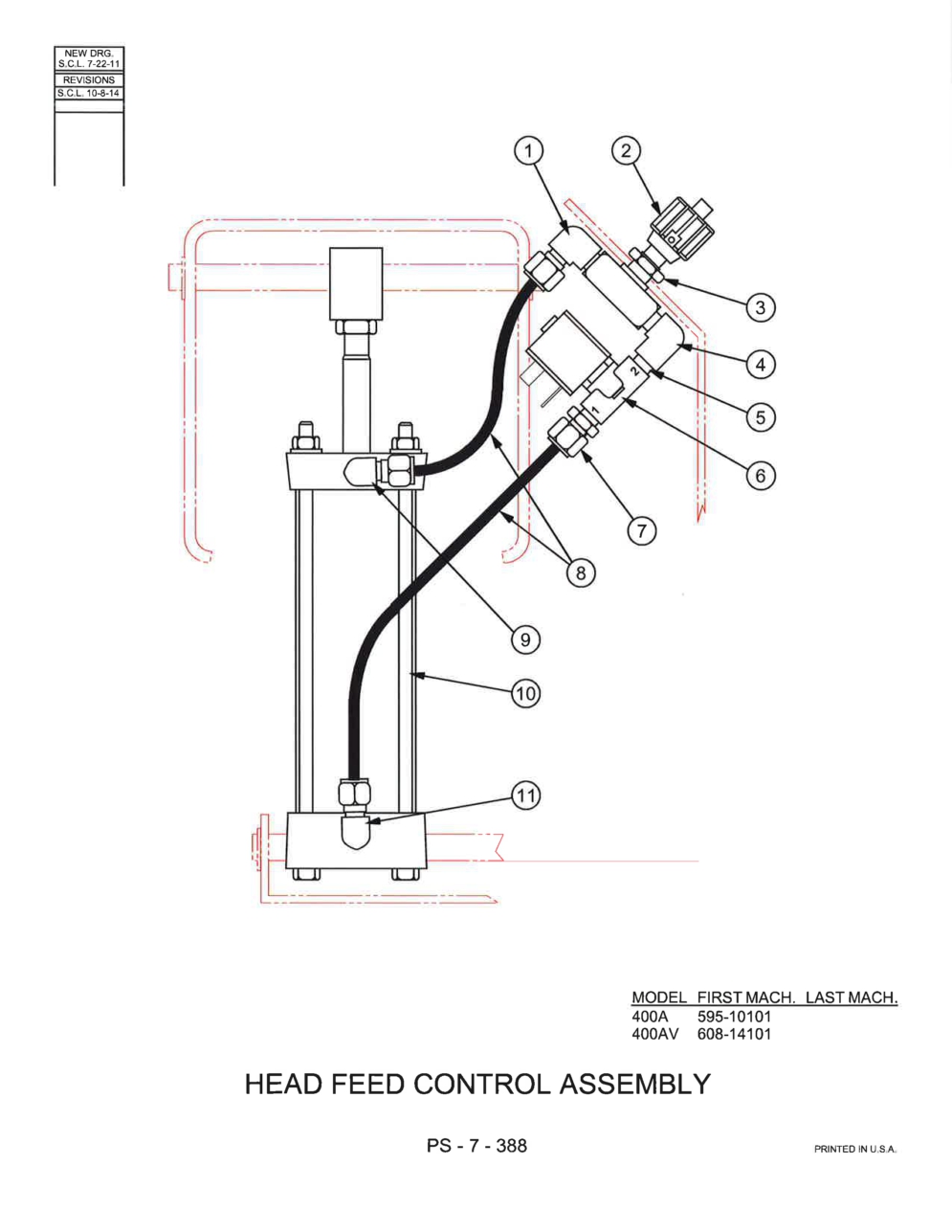

Page Code: PS-7-388

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 1013500 Description: Head Feed Control Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 6-023510 Description: 90 Degrees Male Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $6.02
Index No Ref.: 2 Part Number: 201987 Description: Needle Valve Units Per Assembly: 1 Availability: In Stock Price: $140.69
Index No Ref.: 3 Part Number: 199134 Description: Nut, Hex. Jam 1/2-20NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 5-027506 Description: 90 Degrees Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $6.20
Index No Ref.: 5 Part Number: 12-014528 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 224061 Description: Solenoid Valve (2-Way) Units Per Assembly: 1 Availability: In Stock Price: $194.04
Index No Ref.: 7 Part Number: 6-023519 Description: Male Connector (Brass) Units Per Assembly: 1 Availability: In Stock Price: $2.52
Index No Ref.: 8 Part Number: 197264 Description: Nylon Tubing 1/4 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $1.34
Index No Ref.: 9 Part Number: 6-023510 Description: 90 Degrees Male Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $6.02
Index No Ref.: 10 Part Number: 416087 Description: Head Feed Cylinder Assembly (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $1,497.47
Index No Ref.: 11 Part Number: 6-023510 Description: 90 Degrees Male Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $6.02
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 201030 Description: Transmission Fluid (ATF) Units Per Assembly: A.R. Availability: Call For Info Price:
