Exploded View Parts Ordering: 400A_595

400A 595 Online Parts Manual

Serial No: 595-10101

Download PDF Version

Return to manuals

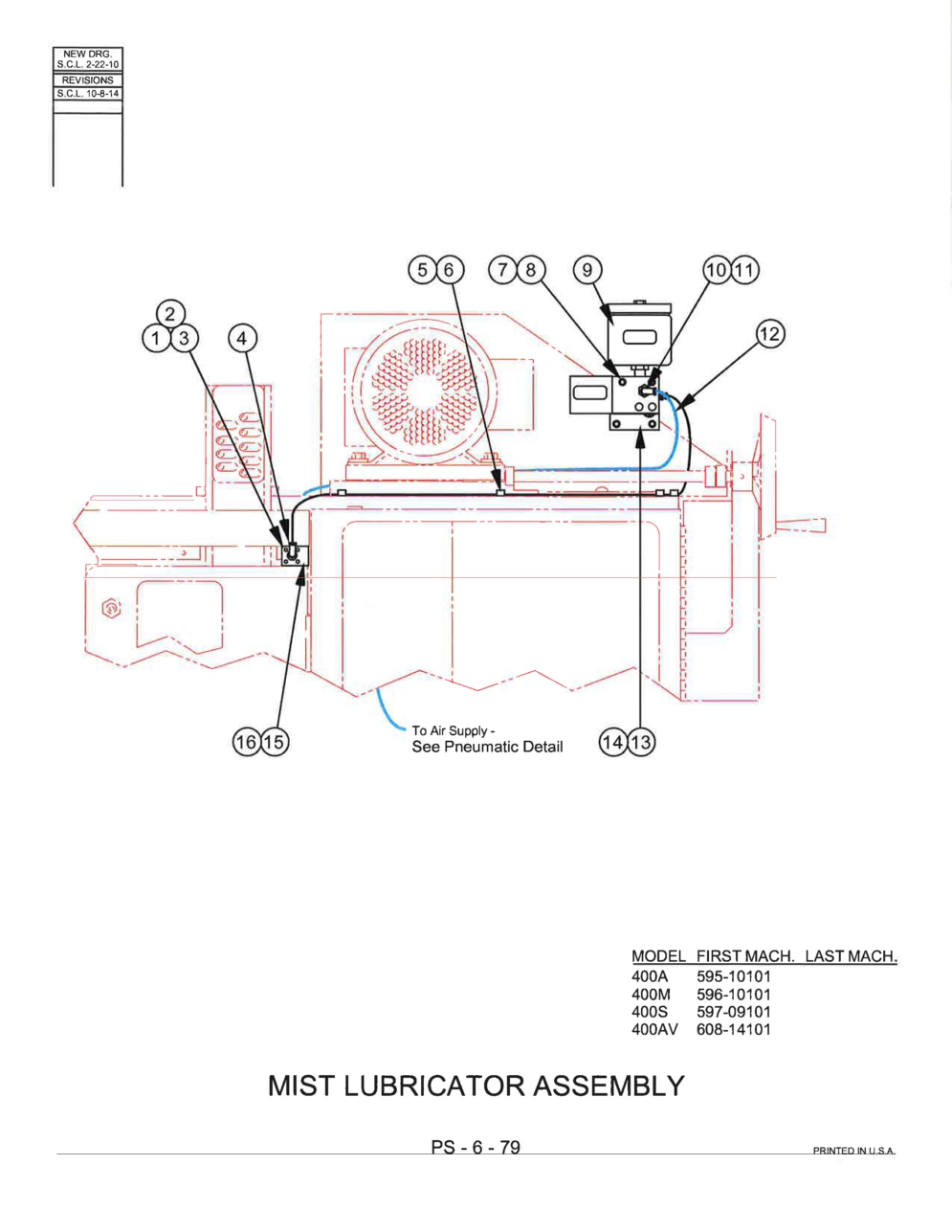

Page Code: PS-6-79

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 214935 Description: Mist Lubricator Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 4 Availability: In Stock Price: $0.20
Index No Ref.: 2 Part Number: 199348 Description: Washer, Lock M5 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 199202 Description: Nut, Hex. M5-0.8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 200135 Description: 90 Degrees Swivel Male Elbow Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 5 Part Number: 209458 Description: Clip Half Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 4 Availability: In Stock Price: $0.20
Index No Ref.: 7 Part Number: 199824 Description: Screw, Soc. Hd. Cap M6-1.0 x 55 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 199188 Description: Nut, Hex. M6-1.0 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 9 Part Number: 208833 Description: Mist Lubricator (Includes Nozzle, Solenoid Valve, Tubing) Units Per Assembly: 1 Availability: In Stock Price: $1,855.69
Index No Ref.: 10 Part Number: 260426 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $2.85
Index No Ref.: 11 Part Number: 200135 Description: 90 Degrees Swivel Male Elbow Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 12 Part Number: 197438 Description: Polyethelene Tubing 1/4 O.D. (Blue) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 13 Part Number: 214906 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 199246 Description: Screw, Button Hd. Soc. M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 15 Part Number: 1008707 Description: Nozzle Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 214124 Description: Heavy Duty Cutting Fluid (AL-2000) Units Per Assembly: A.R. Availability: Call For Info Price:
