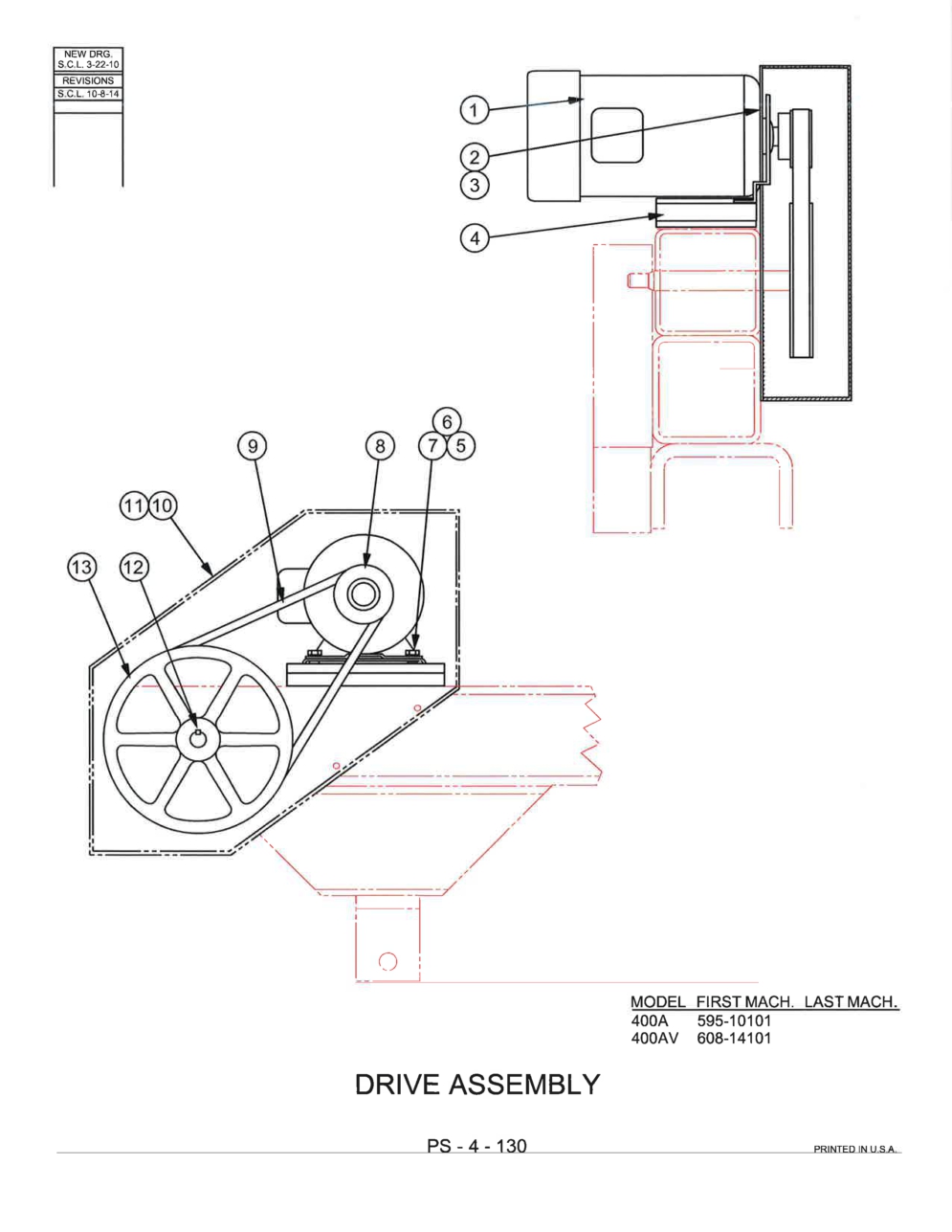

Exploded View Parts Ordering: 400A_595
Page Code: PS-4-130
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
1009493 |
Description:
Drive Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
209624 |
Description:
Electric Motor |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
209625 |
Description:
Electric Motor (575V Only) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
1009176 |
Description:
Cover Mounting Plate |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
199969
|
Description:
Screw, Button Hd. Soc. M6-1.0 x 10 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
4 |
Part Number:
420275 |
Description:
Motor Mount Weldment |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
199239 |
Description:
Screw, Hex. Hd. Cap M8-1.25 x 20 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
199968
|
Description:
Washer, Lock M8 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
7 |
Part Number:
198574 |
Description:
Washer, Flat M8 Wrought |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
219095
|
Description:
Motor Pulley |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$104.16 |
Index No Ref.:
9 |
Part Number:
209498
|
Description:
V-Belt |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$22.86 |
Index No Ref.:
10 |
Part Number:
1009175 |
Description:
Cover Weldment |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
199974
|
Description:
Screw, Button Hd. Soc. M5-0.8 x 10 |
Units Per Assembly:
6 |
Availability:
In Stock
|
Price:
$0.20 |
Index No Ref.:
12 |
Part Number:
4443
|
Description:
Key |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1.68 |
Index No Ref.:
13 |
Part Number:
1008792 |
Description:
Spindle Pulley |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
