Exploded View Parts Ordering: 400A_595

400A 595 Online Parts Manual

Serial No: 595-10101

Download PDF Version

Return to manuals

Page Code: PS-3-290

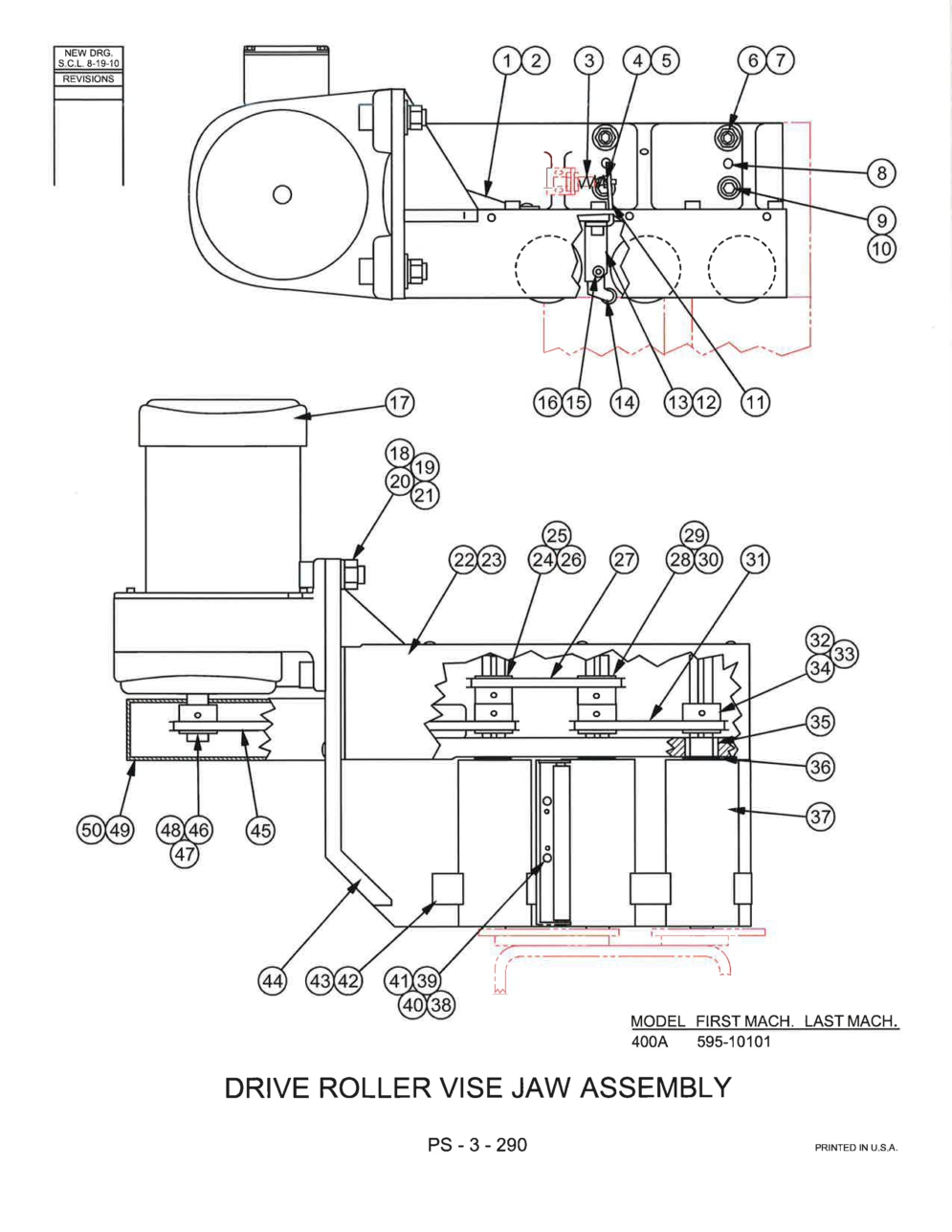

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 517272 Description: Drive Roller Vise Jaw Assembly (Standard Rollers) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 517273 Description: Drive Roller Vise Jaw Assembly (Optional Knurled Rollers) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 415766 Description: Rear Chain Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 3 Part Number: 175367 Description: Compression Spring Units Per Assembly: 1 Availability: In Stock Price: $36.20
Index No Ref.: 4 Part Number: 199051 Description: Screw, Soc. Hd. Cap M6-1.0 x 12 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 199188 Description: Nut, hex. M6-1.0 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 198572 Description: Screw, Soc. Set M12-1.75 x 50 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 199222 Description: Nut, Hex. Jam M12-1.75 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 109364 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199918 Description: Screw, Soc. Hd. Cap M12-1.75 x 45 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 205188 Description: Washer, Lock M12 Hi-Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 324065 Description: Actuator Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 324066 Description: Actuator Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 199051 Description: Screw, Soc. Hd. Cap M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 324182 Description: Roller Assembly (Weldment) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 176460 Description: Shaft Units Per Assembly: 1 Availability: In Stock Price: $22.79
Index No Ref.: 16 Part Number: 35-008582 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 17 Part Number: 221850 Description: Gear Motor (208V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 221852 Description: Gear Motor (200V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 221851 Description: Gear Motor (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 199652 Description: Screw, Soc. Hd. Cap 7/16-14NC x 1-3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 199265 Description: Washer, Flat 7/16 S.A.E. Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 199326 Description: Washer, Lock 7/16 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 21 Part Number: 199174 Description: Nut, Hex. 7/16-14NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 415763 Description: Top Chain Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 3 Availability: In Stock Price: $0.20
Index No Ref.: 24 Part Number: 202797 Description: Sprocket Units Per Assembly: 2 Availability: In Stock Price: $200.00
Index No Ref.: 25 Part Number: 205162 Description: Spring Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 26 Part Number: 14213 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 27 Part Number: 176651 Description: Roller Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 202797 Description: Sprocket Units Per Assembly: 2 Availability: In Stock Price: $200.00
Index No Ref.: 29 Part Number: 205162 Description: Spring Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 30 Part Number: 14213 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 31 Part Number: 176651 Description: Roller Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 202797 Description: Sprocket Units Per Assembly: 1 Availability: In Stock Price: $200.00
Index No Ref.: 33 Part Number: 205162 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 34 Part Number: 14214 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 35 Part Number: 176480 Description: DU Sleeve Bearing Units Per Assembly: 3 Availability: In Stock Price: $3.53
Index No Ref.: 36 Part Number: 5-004306 Description: Spacer Units Per Assembly: 3 Availability: In Stock Price: $16.12
Index No Ref.: 37 Part Number: 417593 Description: Roller (Standard) Units Per Assembly: 3 Availability: In Stock Price: $332.29
Index No Ref.: Part Number: 417594 Description: Roller (Optional Knurled) Units Per Assembly: 3 Availability: In Stock Price: $324.32
Index No Ref.: 38 Part Number: 199728 Description: Screw, Button Hd. Soc. M4-0.7 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 39 Part Number: 133476 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 133478 Description: Shim (.010) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 41 Part Number: 17896 Description: Shim (.015) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 320612 Description: Bearing Block Units Per Assembly: 1 Availability: In Stock Price: $396.94
Index No Ref.: 43 Part Number: 199896 Description: Screw, Soc. Hd. Cap M10-1.5 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 517274 Description: Roller And Gear Motor Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 176859 Description: Roller Chain Units Per Assembly: 1 Availability: In Stock Price: $212.42
Index No Ref.: 46 Part Number: 202797 Description: Sprocket Units Per Assembly: 1 Availability: In Stock Price: $200.00
Index No Ref.: 47 Part Number: 205162 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 48 Part Number: 172717 Description: Loctite (Dry-Loc Green 202) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 317219 Description: Chain Cover Weldment Units Per Assembly: 1 Availability: In Stock Price: $865.00
Index No Ref.: 50 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
