Exploded View Parts Ordering: 400AV_608

400AV 608 Online Parts Manual

Serial No: 608-14101

Download PDF Version

Return to manuals

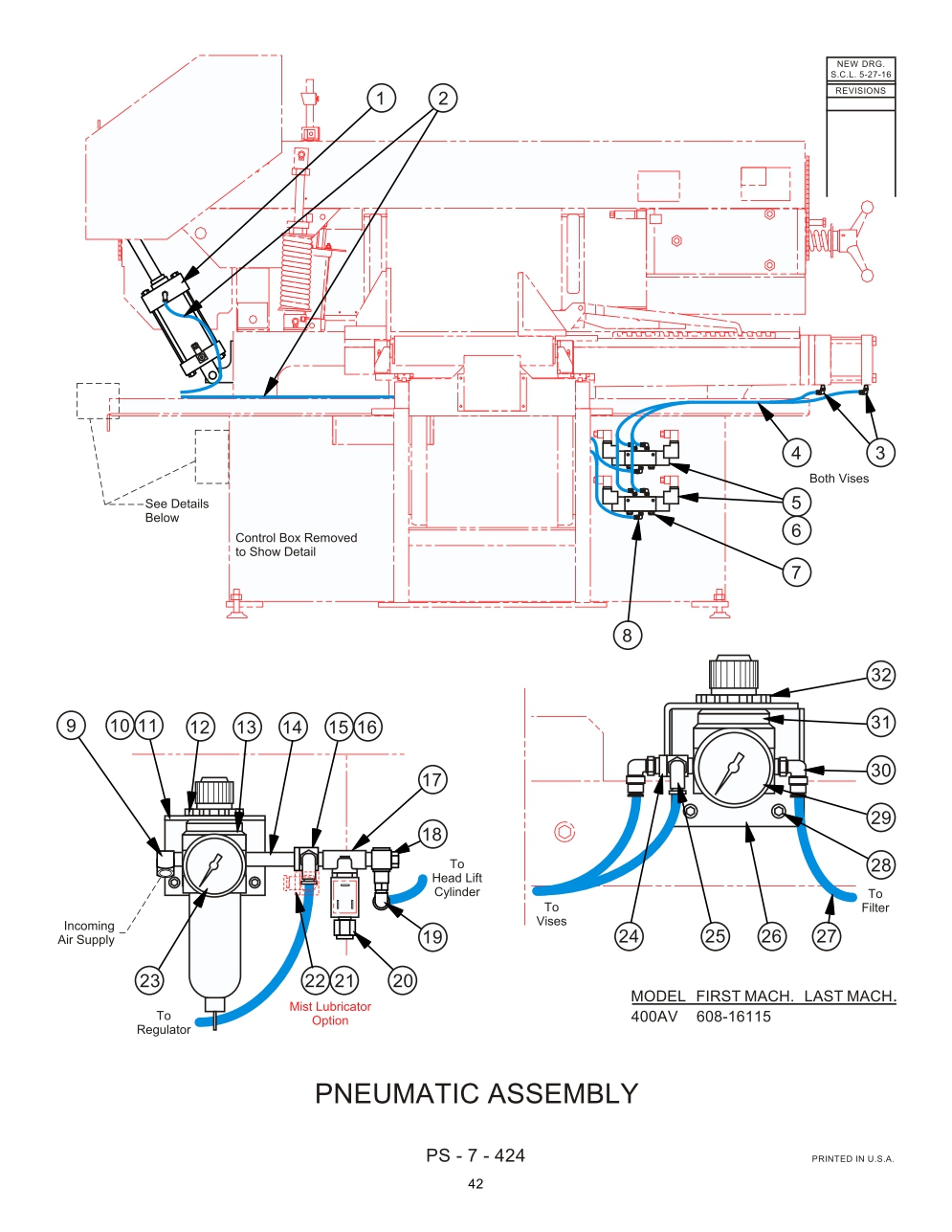

Page Code: PS-7-424

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Pneumatic Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 224965 Description: Pneumatic Head Lift Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 197438 Description: Polyethelene Tubing 1/4 O.D. (Blue) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 3 Part Number: 200135 Description: 90 Units Per Assembly: 4 Availability: In Stock Price: $11.39
Index No Ref.: 4 Part Number: 197438 Description: Polyethelene Tubing 1/4 O.D. (Blue) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 5 Part Number: 214390 Description: Solenoid Vavle (3 Position, 4 Way) Units Per Assembly: 2 Availability: In Stock Price: $900.00
Index No Ref.: 6 Part Number: 214846 Description: Screw, Soc. Hd. Cap M3-0.5 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 176811 Description: Vent Filter Breather Units Per Assembly: 4 Availability: In Stock Price: $5.45
Index No Ref.: 8 Part Number: 200135 Description: 90 Units Per Assembly: 6 Availability: In Stock Price: $11.39
Index No Ref.: 9 Part Number: 123835 Description: 90 Units Per Assembly: 1 Availability: In Stock Price: $19.82
Index No Ref.: 10 Part Number: 418046 Description: Regulator Mounting Bracket Units Per Assembly: 1 Availability: In Stock Price: $15.67
Index No Ref.: 11 Part Number: 199246 Description: Screw, Button Hd. Soc. M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 12 Part Number: 206113 Description: Mounting Nut Units Per Assembly: 1 Availability: In Stock Price: $8.21
Index No Ref.: 13 Part Number: 206115 Description: Air Regulator/Filter Units Per Assembly: 1 Availability: In Stock Price: $232.66
Index No Ref.: 14 Part Number: 203144 Description: Pipe Nipple (Brass) Units Per Assembly: 1 Availability: In Stock Price: $4.27
Index No Ref.: 15 Part Number: 112043 Description: Street Tee Units Per Assembly: 1 Availability: In Stock Price: $12.50
Index No Ref.: 16 Part Number: 200135 Description: 90 Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 17 Part Number: 176829 Description: Solenoid Valve (3-Way) Units Per Assembly: 1 Availability: In Stock Price: $309.75
Index No Ref.: 18 Part Number: 203809 Description: Right Angle Flow Control valve Units Per Assembly: 1 Availability: In Stock Price: $93.30
Index No Ref.: 19 Part Number: 200135 Description: 90 Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 20 Part Number: 176811 Description: Vent Filter Breather Units Per Assembly: 1 Availability: In Stock Price: $5.45
Index No Ref.: 21 Part Number: 112043 Description: Street Tee (Mist Lubricator Option) Units Per Assembly: 1 Availability: In Stock Price: $12.50
Index No Ref.: 22 Part Number: 200135 Description: 90 Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 23 Part Number: 200137 Description: Gauge Units Per Assembly: 1 Availability: In Stock Price: $44.26
Index No Ref.: 24 Part Number: 112043 Description: Street Tee Units Per Assembly: 1 Availability: In Stock Price: $12.50
Index No Ref.: 25 Part Number: 200135 Description: 90 Units Per Assembly: 2 Availability: In Stock Price: $11.39
Index No Ref.: 26 Part Number: 418046 Description: Regulator Mounting Bracket Units Per Assembly: 1 Availability: In Stock Price: $15.67
Index No Ref.: 27 Part Number: 197438 Description: Polyethelene Tubing 1/4 O.D. (Blue) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 28 Part Number: 199246 Description: Screw, Button Hd. Soc. M6-1.0 x 12 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 29 Part Number: 200137 Description: Gauge Units Per Assembly: 1 Availability: In Stock Price: $44.26
Index No Ref.: 30 Part Number: 200135 Description: 90 Units Per Assembly: 1 Availability: In Stock Price: $11.39
Index No Ref.: 31 Part Number: 206115 Description: Air Regulator Units Per Assembly: 1 Availability: In Stock Price: $232.66
Index No Ref.: 32 Part Number: 206113 Description: Mounting Nut Units Per Assembly: 1 Availability: In Stock Price: $8.21
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 176879 Description: Label (Air Supply Limits) (Near Air Filter) Units Per Assembly: 1 Availability: In Stock Price: $4.42
