Exploded View Parts Ordering: 400AV_608

400AV 608 Online Parts Manual

Serial No: 608-14101

Download PDF Version

Return to manuals

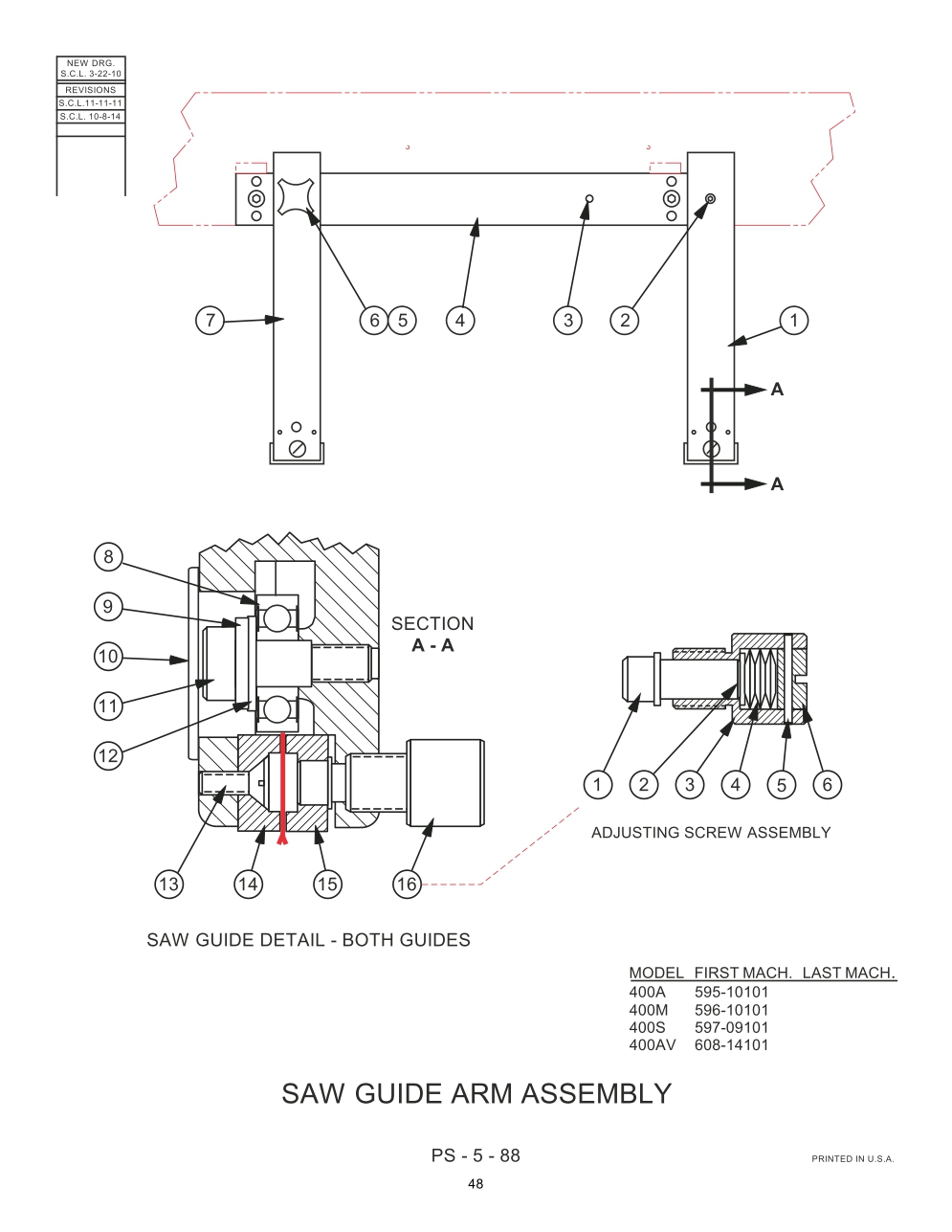

Page Code: PS-5-88

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 225521 Description: Saw Guide Arm Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 517255 Description: Saw Guide Arm Units Per Assembly: 1 Availability: In Stock Price: $250.55
Index No Ref.: 2 Part Number: 199237 Description: Screw, Soc. Set M12-1.75 x 25 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 4269 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 4 Part Number: 320590 Description: Mounting Bar Units Per Assembly: 1 Availability: In Stock Price: $374.89
Index No Ref.: 5 Part Number: 1008755 Description: Saw Guide Arm Lock Handwheel Units Per Assembly: 1 Availability: In Stock Price: $24.07
Index No Ref.: 6 Part Number: 175449 Description: Brass Plug Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 7 Part Number: 517255 Description: Saw Guide Arm Units Per Assembly: 1 Availability: In Stock Price: $250.55
Index No Ref.: 8 Part Number: 11529 Description: Ball Bearing Units Per Assembly: 2 Availability: In Stock Price: $5.51
Index No Ref.: 9 Part Number: 199346 Description: Washer, Lock M10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 35-004528 Description: Plug Button Units Per Assembly: 2 Availability: In Stock Price: $2.80
Index No Ref.: 11 Part Number: 176077 Description: Screw, Soc. Hd. Shoulder M8-1.25 x 16 (10 mm Dia.) Units Per Assembly: 2 Availability: In Stock Price: $8.65
Index No Ref.: 12 Part Number: 198976 Description: Washer, Flat M10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 198749 Description: Screw, Flat Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 137158 Description: Insert Assembly (Fixed) Units Per Assembly: 2 Availability: In Stock Price: $162.75
Index No Ref.: 15 Part Number: 137155 Description: Insert Assembly (Adjustable) Units Per Assembly: 2 Availability: In Stock Price: $162.75
Index No Ref.: 16 Part Number: 124419 Description: Adjusting Screw Assembly (See Detail) Units Per Assembly: 2 Availability: In Stock Price: $78.00
Index No Ref.: Ref. Part Number: 124419 Description: Adjusting Screw Assembly Units Per Assembly: Availability: In Stock Price: $78.00
Index No Ref.: 1 Part Number: 124417 Description: Plunger Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 2 Part Number: 199257 Description: Washer, Flat #8 S.A.E. Std Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 124418 Description: Housing Units Per Assembly: 1 Availability: In Stock Price: $38.85
Index No Ref.: 4 Part Number: 104632 Description: Belleville Washer Units Per Assembly: 6 Availability: In Stock Price: $1.28
Index No Ref.: 5 Part Number: 4217 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 6 Part Number: 124033 Description: Plug Units Per Assembly: 1 Availability: In Stock Price: $13.42
