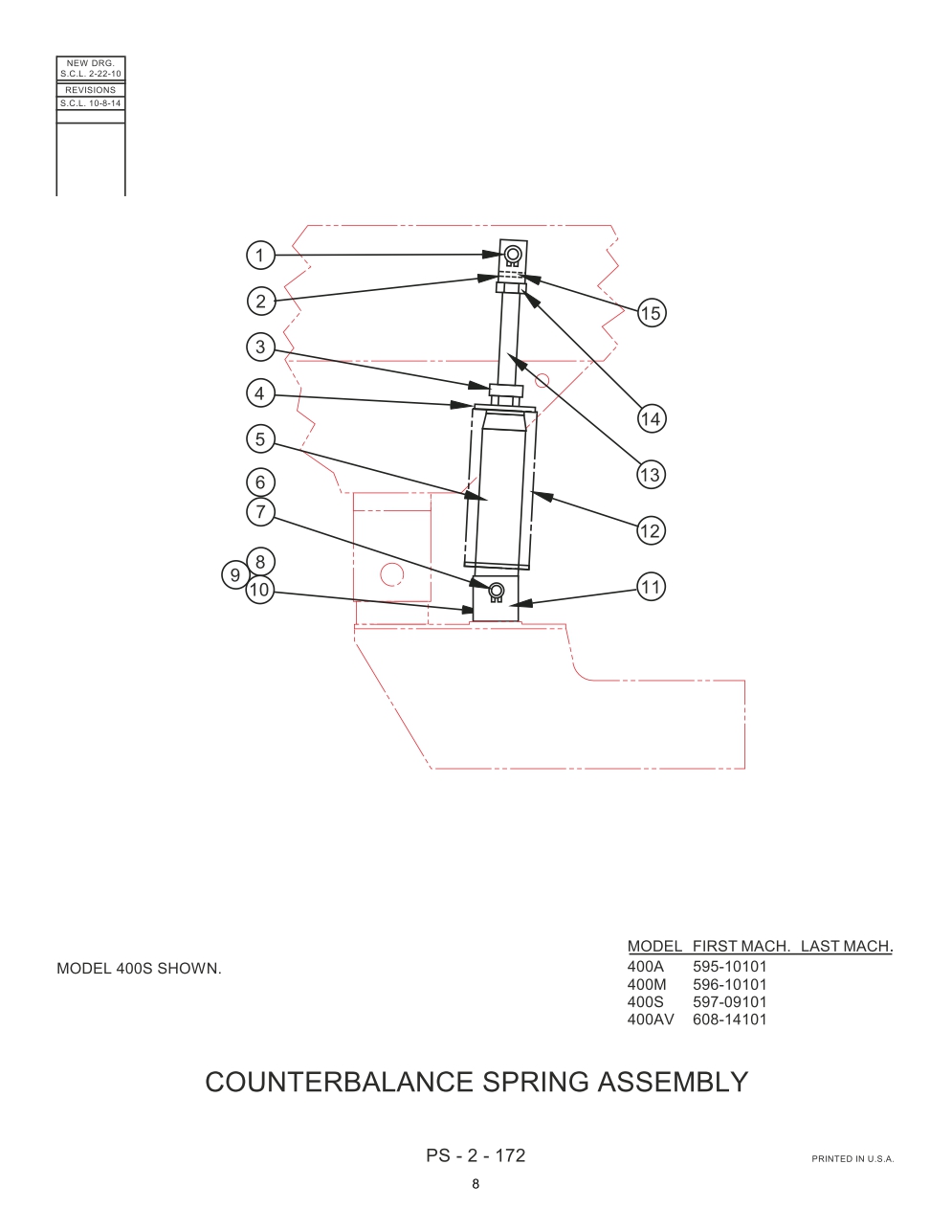

Exploded View Parts Ordering: 400AV_608
Page Code: PS-2-172
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
517499 |
Description:
Counterbalance Spring Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
35-008688
|
Description:
Retaining Ring |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.00 |
Index No Ref.:
2* |
Part Number:
178683 |
Description:
Clevis |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3* |
Part Number:
201366
|
Description:
Shaft Collar |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$16.12 |
Index No Ref.:
4 |
Part Number:
179576
|
Description:
Top Washer |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$41.98 |
Index No Ref.:
5 |
Part Number:
318126
|
Description:
Rod Guide Weldment |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$167.50 |
Index No Ref.:
6 |
Part Number:
179579
|
Description:
Pin |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$29.53 |
Index No Ref.:
7 |
Part Number:
35-009613
|
Description:
Retaining Ring |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
8 |
Part Number:
198161
|
Description:
Screw, Hex. Hd. Cap M10-1.5 x 20 |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
9 |
Part Number:
199346
|
Description:
Washer, Lock M10 |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
10 |
Part Number:
198976
|
Description:
Washer, Flat M10 |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
11 |
Part Number:
318127
|
Description:
Bracket |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$56.29 |
Index No Ref.:
12 |
Part Number:
178236
|
Description:
Compression Spring |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$99.87 |
Index No Ref.:
13* |
Part Number:
179577 |
Description:
Threaded Rod 3/4-10NC x 13-1/2 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
14* |
Part Number:
199140
|
Description:
Nut, Hex. Jam 3/4-10NC |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
15* |
Part Number:
4261
|
Description:
Spring Pin |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1.28 |
Index No Ref.:
|
Part Number:
|
Description:
*NOTE: Marked Items are Part of Assembly #326829 - Screw and Lug Assembly. |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
