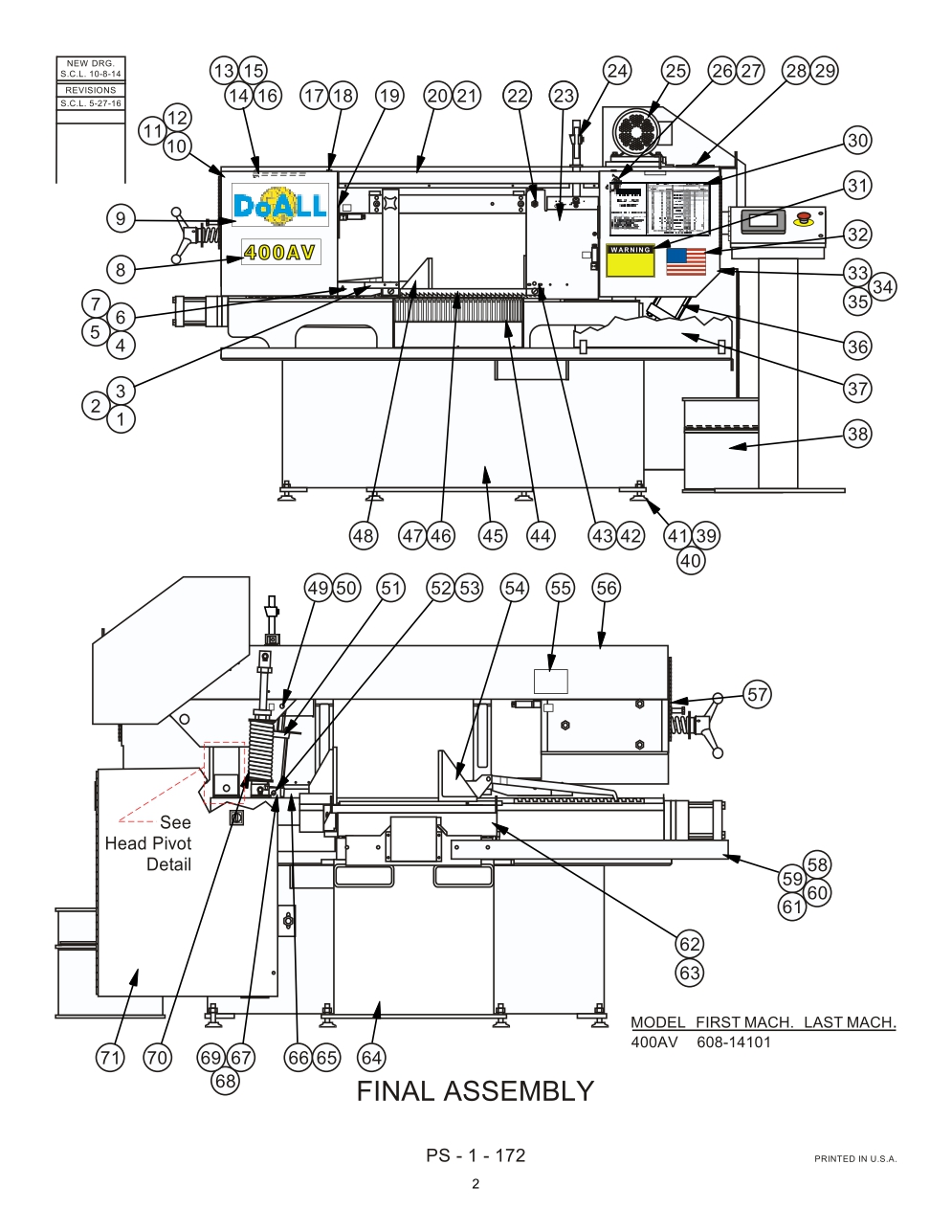

Exploded View Parts Ordering: 400AV_608

400AV 608 Online Parts Manual

Serial No: 608-14101

Download PDF Version

Return to manuals

Page Code: PS-1-172

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 320595 Description: L.H. Blade Guard Weldment Units Per Assembly: 1 Availability: In Stock Price: $58.20
Index No Ref.: 2 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 3 Part Number: 199258 Description: Washer, Flat #10 S.A.E. Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 1008854 Description: Shield Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 6 Part Number: 199258 Description: Washer, Flat #10 S.A.E. Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 7 Part Number: 199530 Description: Nut, Hex. Self-Locking M5-0.8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 1008682 Description: Decal (400AV) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 416163 Description: Label (DoALL) Units Per Assembly: 1 Availability: In Stock Price: $21.47
Index No Ref.: 10 Part Number: 1009128 Description: L.H. Door Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 199299 Description: Self Drilling Fastener M4.8 x 13 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 197022 Description: Nylon Edging Units Per Assembly: A.R. Availability: In Stock Price: $2.09
Index No Ref.: 13 Part Number: 175478 Description: Door Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 199899 Description: Screw, Button Hd. Soc. M6-1.0 x 16 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 15 Part Number: 199245 Description: Locknut M6-1.0 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 316583 Description: Spring Latch (Each Door) Units Per Assembly: 2 Availability: In Stock Price: $15.31
Index No Ref.: 18 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 4 Availability: In Stock Price: $0.20
Index No Ref.: 19 Part Number: 201569 Description: Pull Pocket Units Per Assembly: 2 Availability: In Stock Price: $11.50
Index No Ref.: 20 Part Number: 1008801 Description: Band Cover Weldment (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1008802 Description: Band Cover Weldment (Mist Lubricator Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 4 Availability: In Stock Price: $0.20
Index No Ref.: 22 Part Number: 199222 Description: Nut, Hex. Jam M12-1.75 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 23 Part Number: 1011498 Description: Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 1013087 Description: Work Height Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 1009498 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 207716 Description: Band Wiper Assembly (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $121.97
Index No Ref.: 27 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 28 Part Number: 324759 Description: Bearing Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 30 Part Number: 1008687 Description: Saw Band Selector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 404478 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 32 Part Number: 201469 Description: Decal (American Flag) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 33 Part Number: 1009124 Description: R.H. Door Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 199299 Description: Self Drilling Fastener M4.8 x 13 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 197022 Description: Nylon Edging Units Per Assembly: A.R. Availability: In Stock Price: $2.09
Index No Ref.: 36 Part Number: Description: Pneumatic Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 1011010 Description: Front Spalsh Guard Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 1008849 Description: Flood Coolant Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 214935 Description: Mist Lubricator Assembly (Optional) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1008850 Description: Flood Coolant/Mist Lubricator Assembly (Optional) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 12420 Description: Foot Casting Units Per Assembly: 4 Availability: In Stock Price: $23.92
Index No Ref.: 40 Part Number: 199253 Description: Screw, Hex. Hd. Cap M16-2.0 x 70 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 199955 Description: Nut, Hex. Jam M16-2.0 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 199974 Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 43 Part Number: 199258 Description: Washer, Flat #10 Std. S.A.E Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 44 Part Number: 1011185 Description: Discharge Chute Weldmwent Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 6000057 Description: Base Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 209790 Description: Saw Band (Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 304525 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: Description: Front Vise Detail (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 175144 Description: Pin Units Per Assembly: 1 Availability: In Stock Price: $24.81
Index No Ref.: 50 Part Number: 35-006426 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 51 Part Number: 1013500 Description: Head Feed Control Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 1008305 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 35-006426 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 54 Part Number: 6000225 Description: Index Vise Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 1012541 Description: Label (Machine Data) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 1014426 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 176072 Description: Escutcheon (Band Tension) Units Per Assembly: 1 Availability: In Stock Price: $12.09
Index No Ref.: 58 Part Number: 226555 Description: Index Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 199926 Description: Screw, Soc. Hd. Cap M8-1.25 x 25 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 60 Part Number: 199941 Description: Nut, Hex. M8-1.25 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 61 Part Number: 199967 Description: Washer, Flat M8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 199968 Description: Washer, Lock M8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 62 Part Number: 6000334 Description: Infeed Work Support Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 199923 Description: Screw, Soc. Hd. Cap M6-1.0 x 10 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 64* Part Number: 6000303 Description: Index Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 1009423 Description: R.H. Band Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 199974 Description: Screw, Button Hd. Soc. M5-0.8 x 10 Units Per Assembly: 2 Availability: In Stock Price: $0.20
Index No Ref.: 67 Part Number: 320619 Description: Bracket Units Per Assembly: 1 Availability: In Stock Price: $21.30
Index No Ref.: 68 Part Number: 198161 Description: Screw, Hex. Hd. Cap M10-1.5 x 20 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 79 Part Number: 199346 Description: Washer, Lock M10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 70 Part Number: 517499 Description: Counterbalance Spring Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: Description: Electrical Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #608-15104: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 6000226 Description: Index Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 406872 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 206698 Description: CE Label (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1012466 Description: Shipping Pallet and Hardware Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 416770 Description: Shipping Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 227399 Description: Documentation CD Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207510 Description: Box of Extra Parts Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207513 Description: Hex. Key (10 mm) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 199246 Description: Screw, Button Hd. Soc. M6-1.0 x 12 (For Wear Plate When Shipping Bracket is Removed) Units Per Assembly: 2 Availability: In Stock Price: $4.20
