Exploded View Parts Ordering: 3613-V3_568

3613-V3 568 Online Parts Manual

Serial No: 568-04101

Download PDF Version

Return to manuals

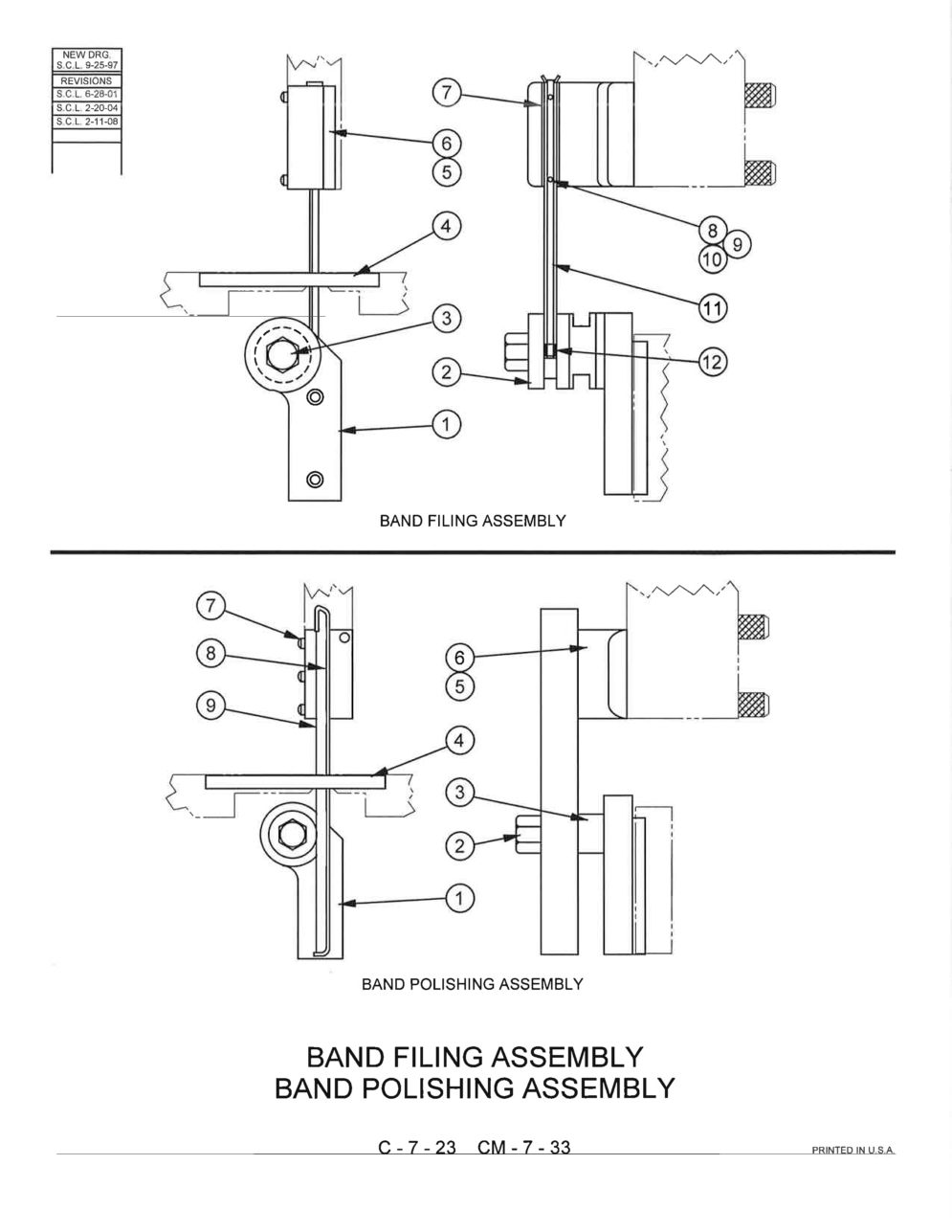

Page Code: C-7-23

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 44780 Description: Band Filing Assembly (Short Guides, 26" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 111948 Description: Band Filing Assembly (Long Guides, 26" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 404994 Description: Band Filing Assembly (Short Guides, 30" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 132773 Description: Band Filing Assembly (Long Guides, 30" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 1371 Description: Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 34-009312 Description: File Guide Back-Up Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 34-009001 Description: File Guide Back-Up Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 317592 Description: Center Plate (Oval) (26" Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 10627 Description: Center Plate (Round) (26" Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 120128 Description: Center Plate (Round) (30" Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 27487 Description: 1/4" File Guide Assembly (Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27490 Description: 1/4" File Guide Assembly (Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27488 Description: 3/8" File Guide Assembly (Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27491 Description: 3/8" File Guide Assembly (Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27489 Description: 1/2" File Guide Assembly (Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27492 Description: 1/2" File Guide Assembly (Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 27417 Description: Bracket (1/4", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27418 Description: Bracket (1/4", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27420 Description: Bracket (3/8", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27421 Description: Bracket (3/8", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27419 Description: Bracket (1/2", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 27422 Description: Bracket (1/2", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 6-009307 Description: (1/4", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009303 Description: Insert (1/4", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009301 Description: Insert (3/8", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009305 Description: Insert (3/8", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009309 Description: Insert (1/2", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009311 Description: Insert (1/2", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 198922 Description: Screw, Rd. Hd. Mach. #4-40NC x 5/8 (1/4" File Guides) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 198699 Description: Screw, Fill. Hd. Mach. #10-24NC x 5/8 (3/8" & 1/2" File Guides) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199315 Description: Washer, Lock #4 Std. (1/4" File Guides) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 199319 Description: Washer, Lock #10 Std. (3/8" & 1/2" File Guides) Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 6-009314 Description: Washer (1/4" File Guides) (Between File Guide & Insert) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009313 Description: Washer (3/8" & 1/2" File Guides) (Between File Guide & Insert) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 6-009308 Description: File Guide (1/4", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009304 Description: File Guide (1/4", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009302 Description: File Guide (3/8", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009306 Description: File Guide (3/8", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009310 Description: File Guide (1/2", Short Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 6-009312 Description: File Guide (1/2", Long Guides) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 34-009313 Description: Guide Plate (1/4", Long Guides Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 34-009402 Description: Pin (1/4", Long Guides Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 201220 Description: Band Polishing Assembly (26" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 106957 Description: Band Polishing Assembly (30" Table) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 1371 Description: Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 34-009001 Description: Back-Up Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 34-010402 Description: Guide Back-Up Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4* Part Number: 318034 Description: Center Plate (Oval) (26" Table) (Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 10570 Description: Center Plate (Round) (30" Table) (Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 16686 Description: Band Polishing Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 27412 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 198696 Description: Screw, Fill. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 34-010504 Description: Back-Up Cloth Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 136889 Description: Adhesive Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 6-010301 Description: Back-Up Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Some 26" Tables will have the Round Center Plate Used on 30" Tables. Units Per Assembly: Availability: Call For Info Price:
