Exploded View Parts Ordering: 3613-V3_568

3613-V3 568 Online Parts Manual

Serial No: 568-04101

Download PDF Version

Return to manuals

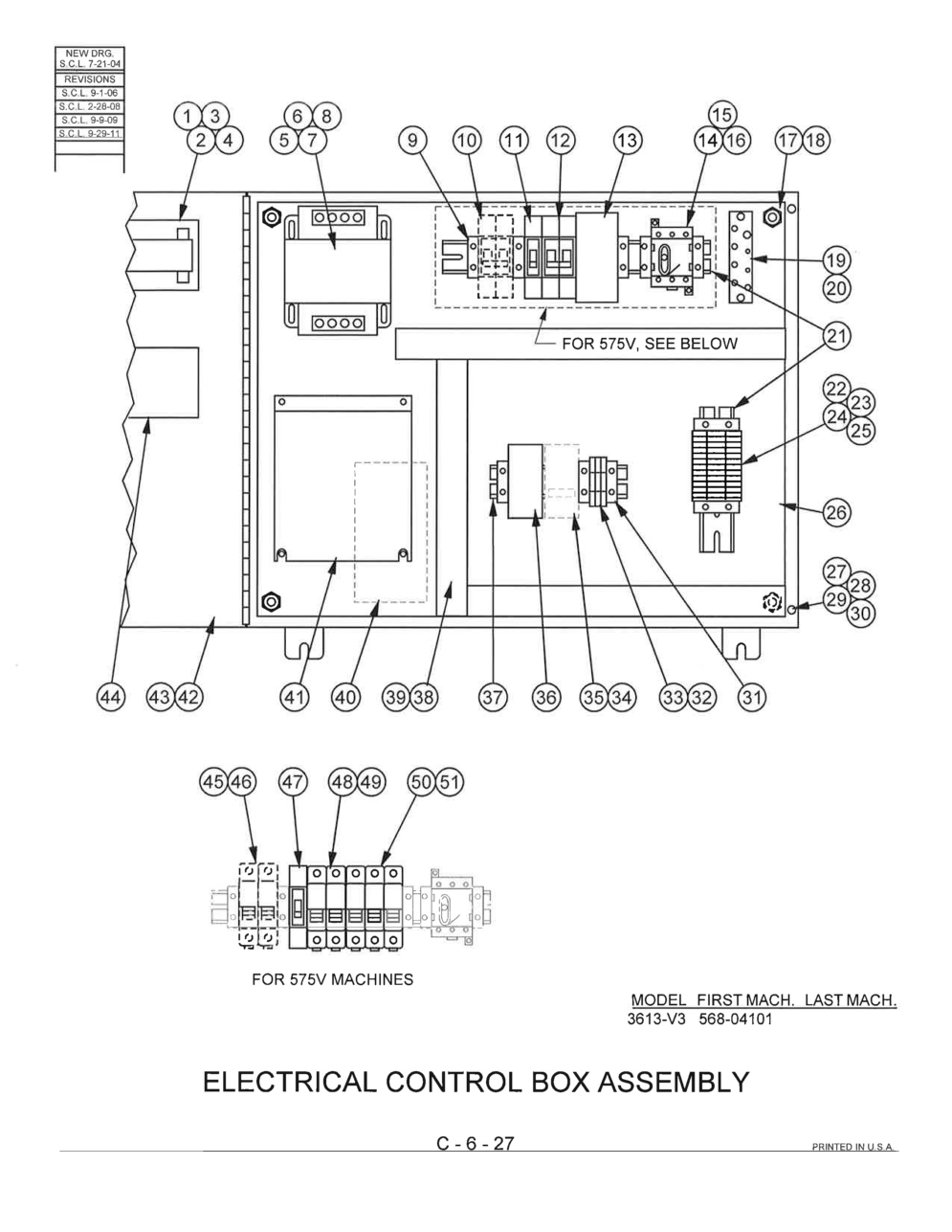

Page Code: C-6-27

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Electrical Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 208728 Description: Mounting Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2* Part Number: 1003545 Description: Resistor (60 Ohm) (208V, 220V, 230V) Units Per Assembly: 1 Availability: In Stock Price: $285.49
Index No Ref.: Part Number: 1003546 Description: Resistor (250 Ohm) (400V, 460V) Units Per Assembly: 1 Availability: In Stock Price: $159.54
Index No Ref.: Part Number: 1003547 Description: Resistor (350 Ohm) (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 208719 Description: Resistor Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 107777 Description: Plastic Push Rivet Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 319088 Description: Transformer (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 319087 Description: Transformer (220V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $250.00
Index No Ref.: Part Number: 217752 Description: Transformer (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199202 Description: Nut, Hex. M5-0.8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 7 Part Number: 199348 Description: Washer, Lock M5 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 9 Part Number: 200618 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 1007405 Description: Circuit Breaker (Buttwelder Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 420355 Description: Circuit Breaker Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 1007398 Description: Circuit Breaker (208V, 220V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1007397 Description: Circuit Breaker (400V) Units Per Assembly: 1 Availability: In Stock Price: $168.00
Index No Ref.: Part Number: 1007572 Description: Circuit Breaker (460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 220648 Description: Motor Starter Protector (208V, 220V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 220647 Description: Motor Starter Protector (400V, 460V) Units Per Assembly: 1 Availability: In Stock Price: $532.44
Index No Ref.: 14** Part Number: 1007434 Description: Disconnect Switch Units Per Assembly: 1 Availability: In Stock Price: $254.37
Index No Ref.: 15** Part Number: 1007441 Description: Disconnect Switch Shaft Units Per Assembly: 1 Availability: In Stock Price: $16.12
Index No Ref.: 16** Part Number: 1007437 Description: Disconnect Switch Handle Units Per Assembly: 1 Availability: In Stock Price: $35.52
Index No Ref.: 17 Part Number: 199126 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 320740 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 141639 Description: Wire Terminal Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 22 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 12 Availability: In Stock Price: $2.66
Index No Ref.: 23 Part Number: 200617 Description: End Section Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 200618 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 200994 Description: Terminal Block Marker Set Units Per Assembly: A.R Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 520141 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 207525 Description: Rivet Nut M6-1.0 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 207523 Description: Screw, Hex. Hd. Slotted M6-1.0 x 20 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 204153 Description: Nylon Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 204151 Description: Retainer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 200618 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 3 Availability: In Stock Price: $2.66
Index No Ref.: 33 Part Number: 200617 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 220233 Description: Control Relay (575V Only) (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 220234 Description: Suppressor (575V Only) (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 207200 Description: Control Relay Units Per Assembly: 1 Availability: In Stock Price: $80.41
Index No Ref.: 37 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 38 Part Number: 197208 Description: 1" Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 197210 Description: 1" Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 221312 Description: Dynamic Brake Module (575V Only) (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 1009580 Description: Variable Speed Controller (208V, 220V,230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1009581 Description: Variable Speed Controller (Mitsubishi) (400V, 460V) Units Per Assembly: 1 Availability: In Stock Price: $2,139.96
Index No Ref.: Part Number: 1001718 Description: Variable Speed Controller (Mitsubishi) (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 222877 Description: Line Reactor (575V Only) (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 517348 Description: Enclosure Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 203925 Description: Gasket Strip Units Per Assembly: A.R. Availability: In Stock Price: $3.20
Index No Ref.: 44 Part Number: 221381 Description: Fuse/Overload Schedule Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: For 575V Machines: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 215212 Description: Fuse Block Units Per Assembly: 2 Availability: In Stock Price: $38.85
Index No Ref.: 46 Part Number: 203614 Description: Fuse (8 Amp) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 420355 Description: Circuit Breaker Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 215212 Description: Fuse Block Units Per Assembly: 2 Availability: In Stock Price: $38.85
Index No Ref.: 49 Part Number: 206701 Description: Fuse (.5 Amp) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 215213 Description: Fuse Block (#220646 - Motor Starter Protector Before Serial #568-04105) Units Per Assembly: 1 Availability: In Stock Price: $175.00
Index No Ref.: 51 Part Number: 203613 Description: Fuse (10 Amp) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 1003427 Description: U.L. Label Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1012541 Description: Label (Machine Specifications) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 197341 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197186 Description: Wire, #12 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197325 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197197 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 197343 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 220945 Description: Wire Terminal Locking Fork Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: Part Number: 203722 Description: Ground I.D. Shrink Tube Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: For Non-Mitsubishi VFDs: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 207786 Description: Resistor (40 Ohm) (208V, 220V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 219330 Description: Resistor (160 Ohm) (400V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: Before Serial #568-09158: Order Disconnect Switch Service Kit - #1007668. Otherwise, Use Part Numbers Listed. Units Per Assembly: Availability: Call For Info Price:
