Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

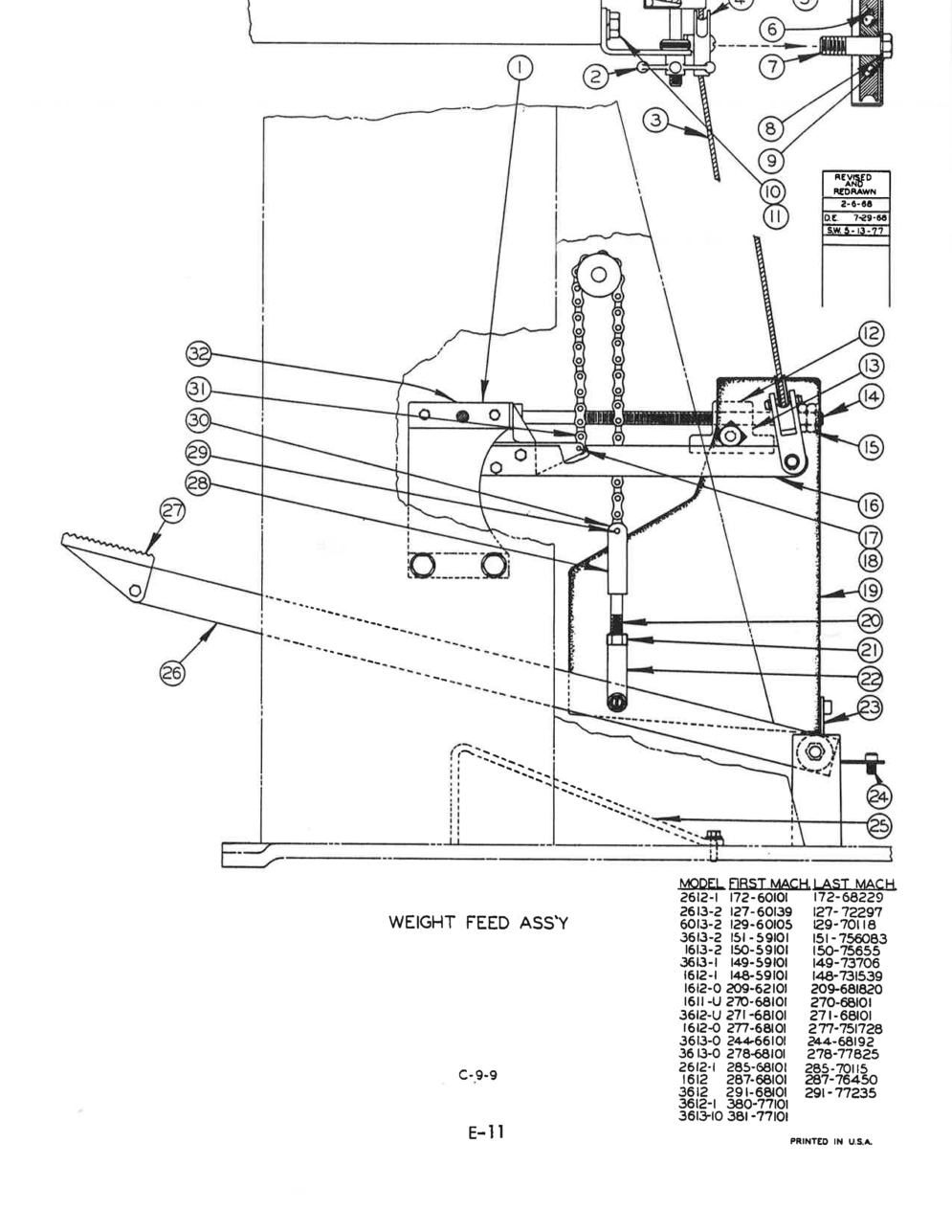

Page Code: C-9-9

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 090-540980 Description: Weight Feed Assembly (1611-U, 3612-U, 1612, 3612, 1612-0, 3613-0, 1612-1, 3613-1, 2612-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 090-593310 Description: Weight Feed Assembly (1613-2, 3613-2, 2613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-447962 Description: Hinge Assembly (Assembly #090-540980) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 094-009487 Description: Hinge Assembly (Assembly #090-593310) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: *2 Part Number: 134-131069 Description: Handwheel Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *3 Part Number: 105-135099 Description: Cord Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *4 Part Number: 135-063964 Description: Vertical Pulley Sub-Assembly Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *5 Part Number: 134-133016 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *6 Part Number: 134-135045 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *7 Part Number: 135-063998 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *8 Part Number: 091-993741 Description: Washer, Shakeproof #1214 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *9 Part Number: 091-980052 Description: Screw, Hex. Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-980441 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993329 Description: Washer, Lock 3/8" Std. Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: **12 Part Number: 090-213448 Description: Weight Bracket Screw Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: **13 Part Number: 105-131056 Description: Weight Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: **14 Part Number: 105-134019 Description: Weight Adjusting. Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: **15 Part Number: 105-134100 Description: Stop Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: **16 Part Number: 090-167966 Description: Cable Beam Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 105-134118 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-046178 Description: Retaining Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 105-131122 Description: Weight Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-980524 Description: Screw, Hex. Hd. Mach. 3/8-16NC x 21/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 105-133169 Description: Chain Anchor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 105-133086 Description: Weight Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-980425 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 094-010352 Description: Weight and Safety Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-275264 Description: Release Lever Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 105-131130 Description: Foot Pedal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 135-050128 Description: Chain Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-995472 Description: Rd. Hd. Rivet 3/16 Dia. x 5/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 105-133144 Description: Chain Anchor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 105-135107 Description: Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: **32 Part Number: 090-275256 Description: Hinge Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Single starred items #2 through #9 are part of Bracket and Cable Assembly #135-053221 Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: Double starred items are part of Hinge Assembly 0090-447962 & 0094-009487. Units Per Assembly: Availability: Call For Info Price:
