Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

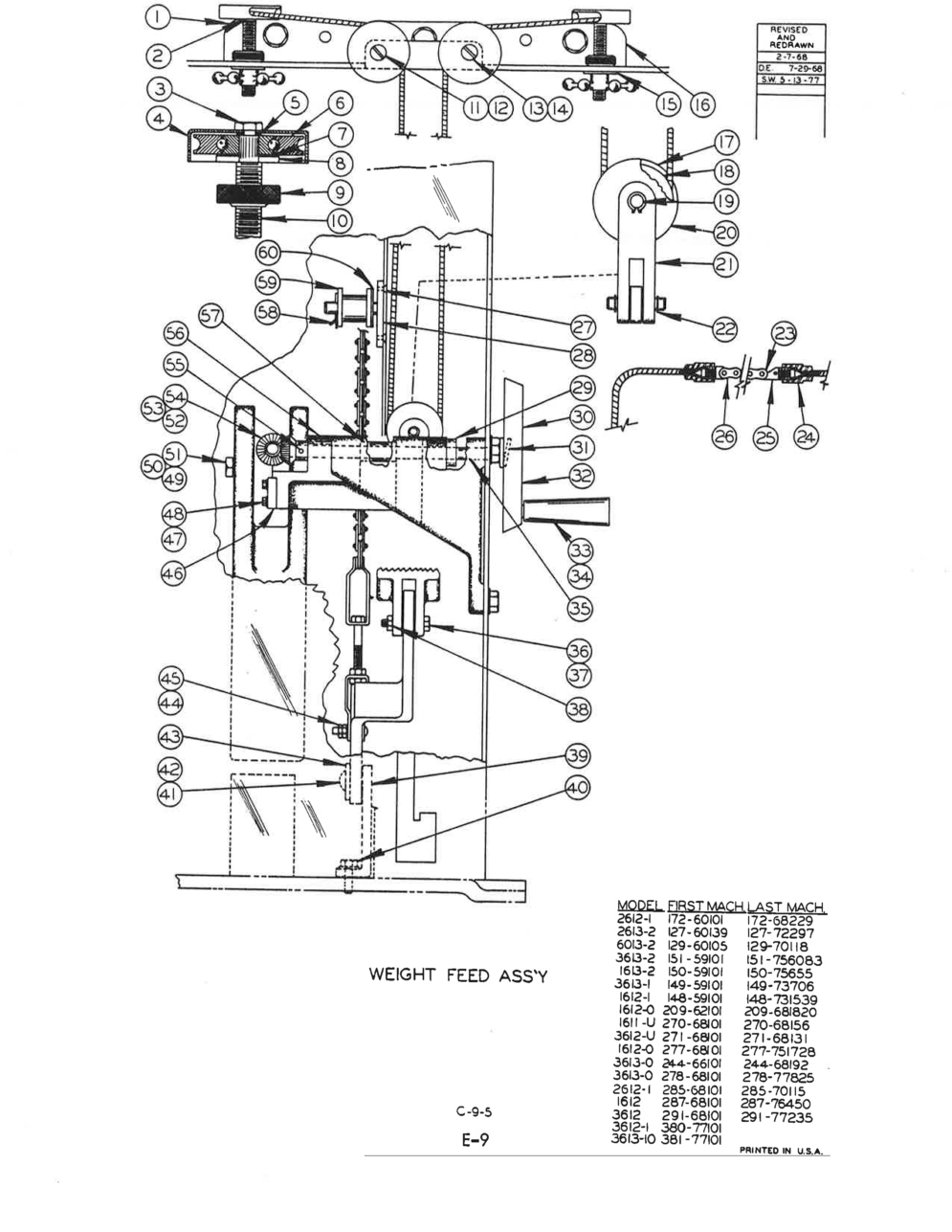

Page Code: C-9-5

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 090-540980 Description: Weight Feed Ass'y (1611-U, 3612-U, 1612, 3612, 1612-0, 3613-0, 1612-1, 3613-1, 2612-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 090-593310 Description: Weight Feed Ass'y (1613-2, 3613-2, 2613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 135-053221 Description: Bracket and Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 135-063956 Description: Horizontal Pulley Assembly Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-980052 Description: Screw, Hex. Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 134-133016 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-993741 Description: Washer, Shakeproof #1214 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 134-135045 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 105-133094 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 134-054147 Description: Washer Units Per Assembly: 1 Availability: In Stock Price: $5.47
Index No Ref.: 9 Part Number: 134-134188 Description: Thumbnut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 135-063980 Description: Pulley Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 134-054147 Description: Washer Units Per Assembly: 2 Availability: In Stock Price: $5.47
Index No Ref.: 12 Part Number: 105-133094 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993329 Description: Washer, Lock 3/8" Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-991273 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992669 Description: Washer, 1/2" Plain Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 135-063972 Description: Cable Carrier Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-074979 Description: Equalizer Pulley Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 134-135045 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-032756 Description: Pulley Axis Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 134-133115 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-032749 Description: Clevis Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-032764 Description: Retaining Ring Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 135-050110 Description: Power Feed Chain Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 105-134175 Description: Housing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 105-134183 Description: Hook Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 106-135015 Description: Feed Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-987677 Description: Screw, Flat Hd. Mach. 5/16-18NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-186957 Description: Roller Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *29 Part Number: 134-054105 Description: Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *30 Part Number: 090-275272 Description: Handwheel Assembly (Assembly #090-540980) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 090-372988 Description: Handwheel Assembly (Assembly #090-593310) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: *31 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: *32 Part Number: 090-425489 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *33 Part Number: 091-181164 Description: Handle (Assembly #090-275272) Units Per Assembly: Use Availability: In Stock Price: $50.38
Index No Ref.: Part Number: 134-055136 Description: Handle (Assembly #090-372988) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: *34 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *35 Part Number: 090-167958 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-980128 Description: Screw, Hex. Hd. Cap 1/4-20NC x 11/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-993212 Description: Washer, Lock 1/4" Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 38 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-188649 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-980458 Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-990200 Description: Screw, Oven Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-992685 Description: Washer 3/4" Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 105-133177 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-990325 Description: Screw, Oven Hd. Mach. 3/8-16NC x 11/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-991273 Description: Nut, Jam 3/8-16NC Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *46 Part Number: 090-168717 Description: Weight Beam Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *47 Part Number: 091-980458 Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: *48 Part Number: 091-993329 Description: Washer, Lock 3/8" Std. Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-991315 Description: Nut, Hex. 1/2-13NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-993279 Description: Washer, Lock 1/2" Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 091-980748 Description: Bolt, Hex. Hd. Mach., 1/2-13NC x 31/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *52 Part Number: 090-099714 Description: Miter Gear Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *53 Part Number: 091-984104 Description: Screw, Soc. Set 10-24NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *54 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: *55 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: *56 Part Number: 090-540998 Description: Power Feed Hinge Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *57 Part Number: 090-168725 Description: Hinge Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 091-995142 Description: Cotter Pin, 3/32 Dia. x 11/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 090-168766 Description: Chain Roller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 091-993048 Description: Washer, Wrought 1/2" Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Starred items are port of Hinge Assembly#090-447962 & 0090-4009487. Units Per Assembly: Availability: Call For Info Price:
