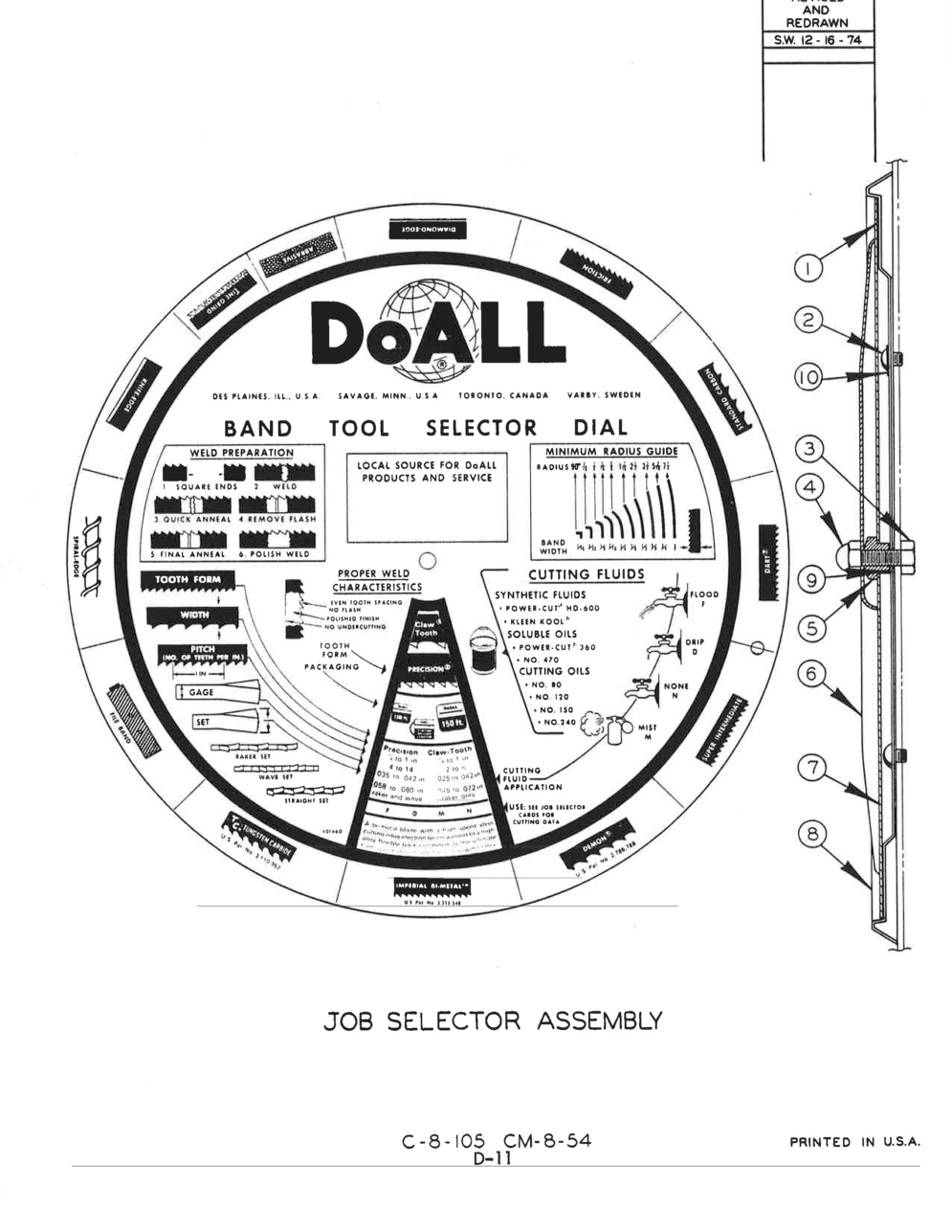

Exploded View Parts Ordering: 3613-2_151
Page Code: C-8-105
| Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
|
Index No Ref.:
Ref. |
Part Number:
094-014610 |
Description:
Job Selector |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
1 |
Part Number:
106-143043 |
Description:
Outer Edge Felt |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
2 |
Part Number:
091-988907 |
Description:
Screw, Rd. Hd. Mach. 1/4-20NC x 1/4 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
3 |
Part Number:
091-980292 |
Description:
Screw, Hex. Hd. Cap 5/16-18NC x 1 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
4 |
Part Number:
090-044496 |
Description:
Cap Nut 5/16-18NC |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
5 |
Part Number:
091-201988 |
Description:
Bushing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
6 |
Part Number:
094-014602 |
Description:
Job Selector Plate |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
7 |
Part Number:
094-014594 |
Description:
Job Selector Dial |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
8 |
Part Number:
090-598665 |
Description:
Job Selector Frame |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
9 |
Part Number:
091-992628 |
Description:
Washer, Flat SAE 5/16" Std |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
10 |
Part Number:
091-992602 |
Description:
Washer, Flat SAE 1/4" Std. |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
