Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

Page Code: C-4-38

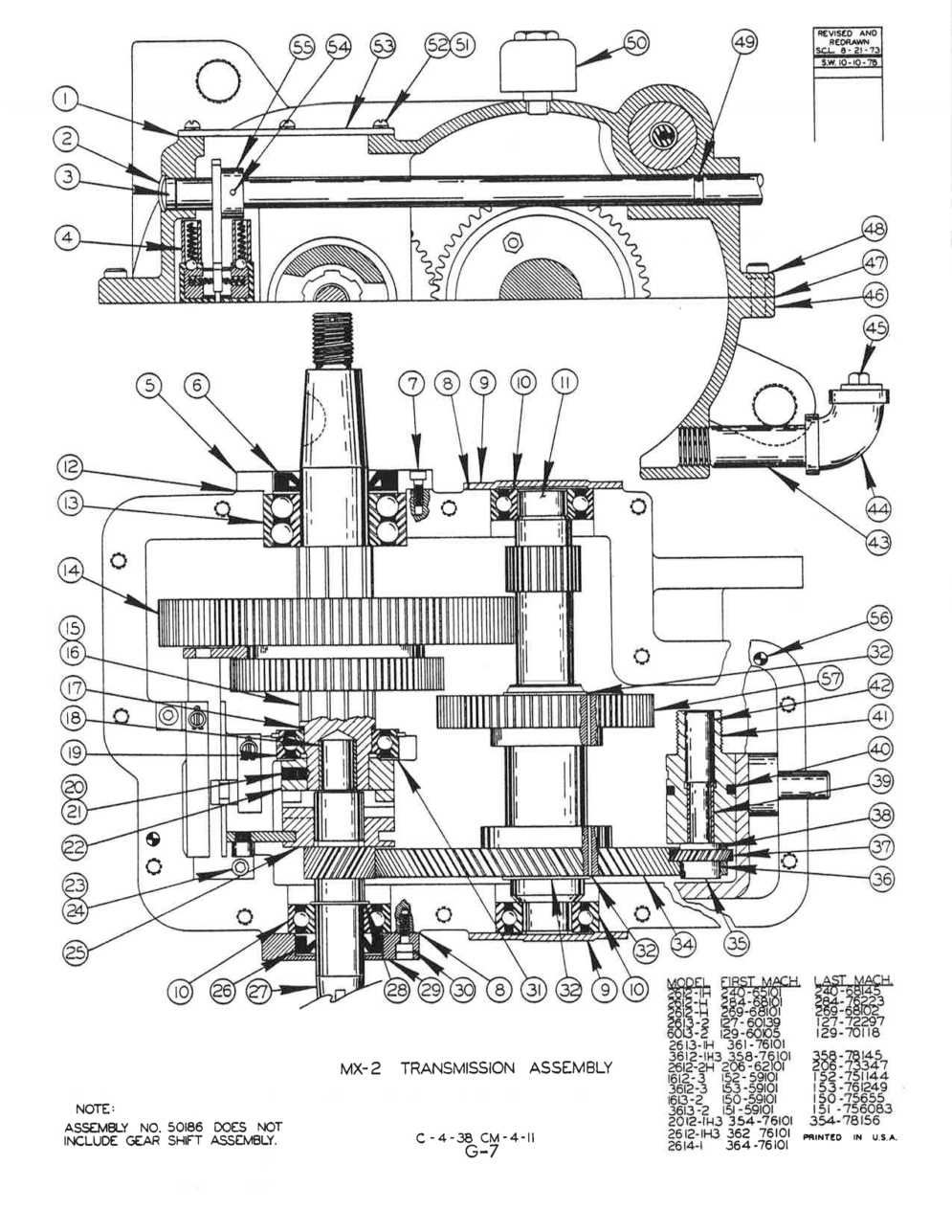

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-501867 Description: MX-2 Transmission Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-025966 Description: Gasket Units Per Assembly: 1 Availability: In Stock Price: $13.42
Index No Ref.: 2 Part Number: 135-034197 Description: Expansion Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-022666 Description: Shifter Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-402801 Description: Shifter Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-050261 Description: Bearing Retainer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-026899 Description: Oil Seal Units Per Assembly: 1 Availability: In Stock Price: $74.98
Index No Ref.: 7 Part Number: 091-982207 Description: Screw, Soc. Hd. Cap 10-24NC x 1/2 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-022633 Description: Gasket Units Per Assembly: 3 Availability: In Stock Price: $5.31
Index No Ref.: 9 Part Number: 090-022641 Description: Bearing Cap Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-022765 Description: Ball Bearing Units Per Assembly: 3 Availability: In Stock Price: $38.85
Index No Ref.: 11 Part Number: 090-246984 Description: Counter Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-038720 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-050279 Description: Ball Bearing Units Per Assembly: 1 Availability: In Stock Price: $313.63
Index No Ref.: 14 Part Number: 090-429747 Description: Cluster Gear Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-212903 Description: Output Shaft Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-209479 Description: Output Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 113-013049 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $11.13
Index No Ref.: 18 Part Number: 090-045758 Description: Bushing Units Per Assembly: 1 Availability: In Stock Price: $999,999.99
Index No Ref.: 19 Part Number: 090-045816 Description: Ball Bearing Units Per Assembly: 1 Availability: In Stock Price: $160.06
Index No Ref.: 20 Part Number: 090-039082 Description: Screw, Soc. Set Dog Pt. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Cut Pt. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-036880 Description: Stationary Clutch Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-982355 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 091-993568 Description: Washer, Lock 1/4 Std. Shakeproof Int. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-034653 Description: Sliding Clutch Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-026907 Description: Oil Seal Units Per Assembly: 1 Availability: In Stock Price: $64.16
Index No Ref.: 27 Part Number: 090-259987 Description: Input Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-136110 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 29 Part Number: 090-022658 Description: Bearing Retainer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-982207 Description: Screw, Soc. Hd. Cap 10-24NC x 1/2 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 135-034361 Description: Spacer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-022773 Description: Retainer Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 135-071926 Description: Woodruff Key Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 34 Part Number: 090-429762 Description: Counter Shaft Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-112731 Description: Tachometer Drive Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-042292 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 090-105404 Description: Helical Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-022716 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 114-065535 Description: Oilite Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-022781 Description: "O"-Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 41 Part Number: 090-022799 Description: Body Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 090-022807 Description: Spindle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 090-029893 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 114-003486 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 090-012766 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 090-501933 Description: Housing Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 090-203993 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 090-019936 Description: Washer, Lock Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 090-041229 Description: "O"-Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 50 Part Number: 091-443549 Description: Breather Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 14 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 091-993196 Description: Washer, Lock #10 Reg. Units Per Assembly: 14 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 090-025958 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 106-044050 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 090-204256 Description: Shifter Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 105-044127 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 090-251232 Description: Intermediate Gear Units Per Assembly: 1 Availability: In Stock Price: $1,812.72
Index No Ref.: Part Number: 105-046122 Description: Pipe Plug (Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-984237 Description: Screw, Soc. Set 1/4-20NC x 5/16" Cup Pt Units Per Assembly: 1 Availability: Call For Info Price:
