Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

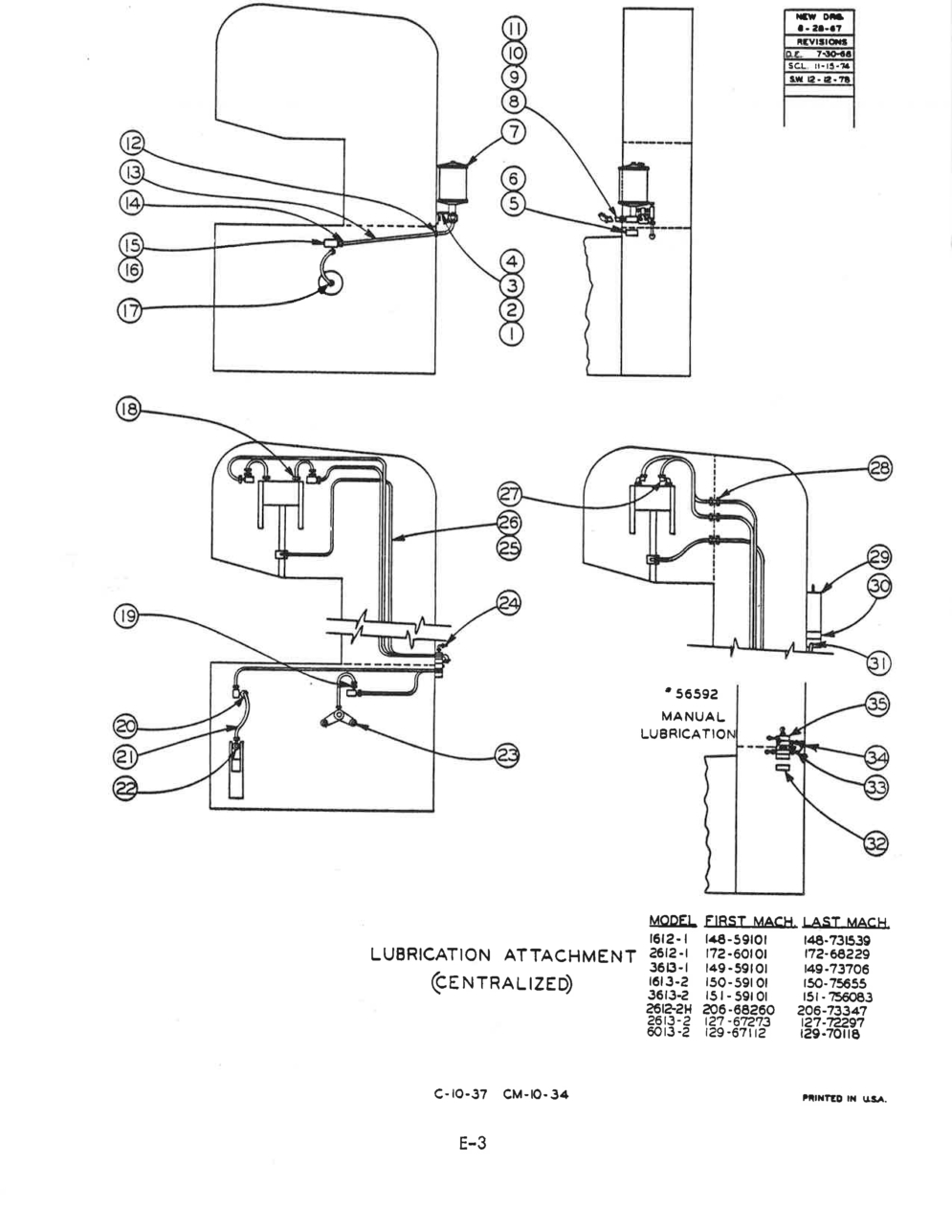

Page Code: C-10-37

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 56591 Description: Centralized Lubrication Attachment Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 56592 Description: Manual Lubrication Attachment Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-082057 Description: Reservoir Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-980086 Description: Screw, Hex. Hd, Cap 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-993212 Description: Washer, Lock 1/4" Std. Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 091-082974 Description: Auto. Oil Res. Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-993964 Description: Screw, Drive #2 x 3/16 Type "U" Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-082040 Description: Oil Reservoir Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-084377 Description: St. Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-084385 Description: 90 Degree Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-971564 Description: Sealtite Conduit 1/2" Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 11 Part Number: 091-971903 Description: Wire, Stranded #14 Red Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-157801 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-971374 Description: Nylon Tubing 1/4" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-014002 Description: Male Connector Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-079673 Description: Manifold Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-980110 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/4 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-024560 Description: Reducer Bushing (#56591 Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-330937 Description: Shaft (456592 Only) (Used on 1612-1 and 3613-1) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-011651 Description: Adaptor (#56591) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-038498 Description: Swivel Adaptor (#56591) Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-171109 Description: 90 Degree Elbow (#56591) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-014028 Description: 90 Degree Elbow (#56592) Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-069691 Description: Hose (#56591) Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971374 Description: Nylon Tubing 1/4" O.D. (#56592) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-070839 Description: Weight Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-477811 Description: Arm (#56592) (Used on 1612-1 AND 3613-1) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-477829 Description: Arm (Used on 2612-1) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-477837 Description: Arm (#56592) (Used on 1613-2 and 3613-1) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-413725 Description: Arm (#56592) (Used on 2613-2, 6013-2 & 2612-2H) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 090-087909 Description: Grease Fitting (#56591) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-169681 Description: Tubing Clamp Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-986919 Description: Screw, Fil. Hd. Mach. #8-32NC x 1/4 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-070821 Description: 90 Degree Elbow Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-095878 Description: Bulkhead Union (#56592) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-070870 Description: Manual Pump (#56592) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-982512 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3- 1/2 (#56592) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-014077 Description: 90 Degree Male Connector (#56592) Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-082966 Description: Grease Instruction Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 105-275069 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: In Stock Price: $6.20
Index No Ref.: 34 Part Number: 090-150301 Description: Grommet Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-245951 Description: Valve Manifold Units Per Assembly: 1 Availability: Call For Info Price:
