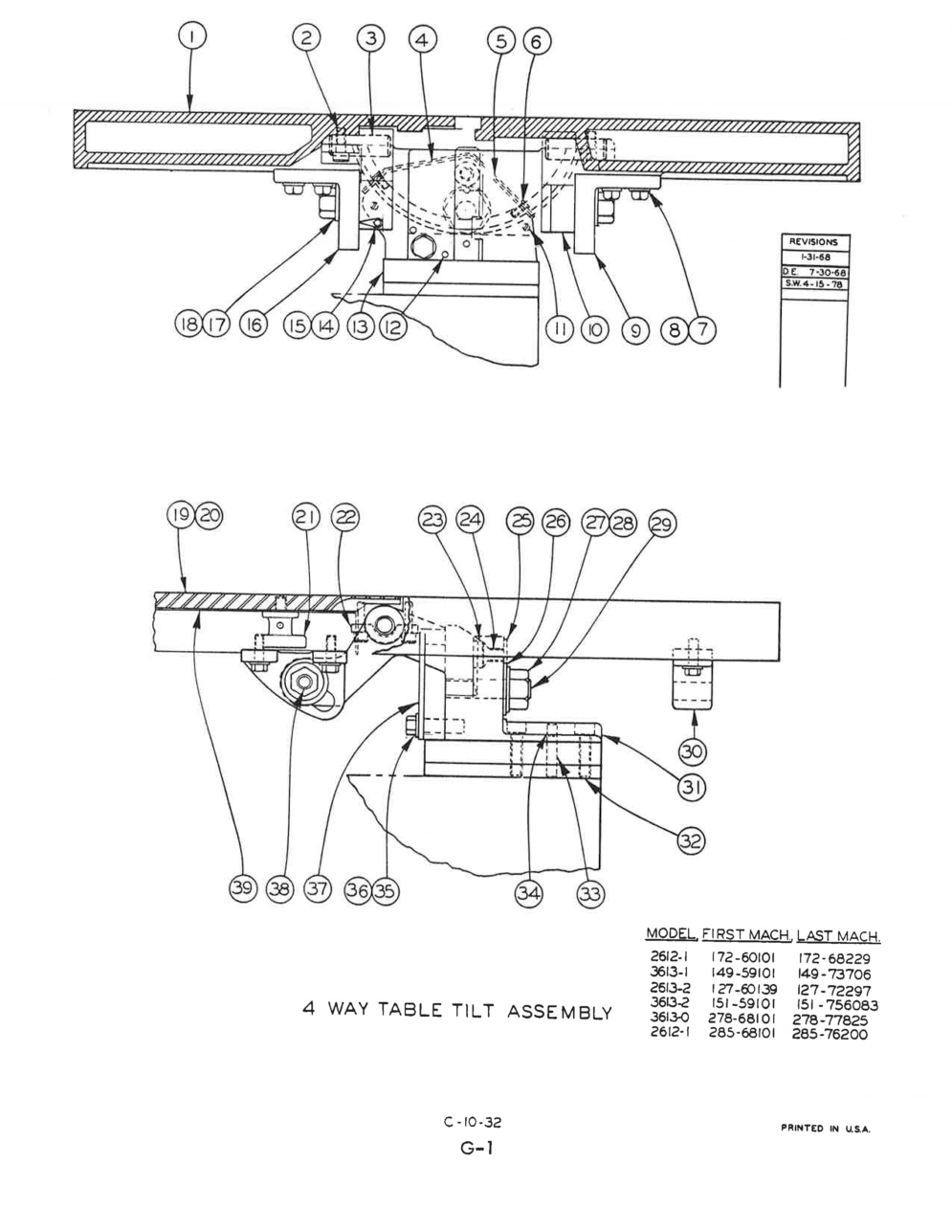

Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

Page Code: C-10-32

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 54592 Description: 4-Way Table Tilt Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 111-031050 Description: Table Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 134-034230 Description: Axis Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 111-033056 Description: Wiper Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 111-033080 Description: Wiper Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-993998 Description: Drive Screw #4 x 1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-992644 Description: Washer 3/8" Std. Units Per Assembly: 10 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 111-031035 Description: Secondary Trunnion Spec. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 111-031100 Description: Trunnion Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-988956 Description: Screw, Rd. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 135-003283 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-279779 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-988386 Description: Screw, Rd. Hd. Cap 6-32NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 134-033158 Description: Tilt Indicator Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 103-031167 Description: Secondary Trunnion Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 134-034065 Description: Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-991356 Description: Nut, Hex. 5/8-11NC Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-367780 Description: Filler Plate Sawing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 135-073211 Description: Filler Plate Filing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 105-030050 Description: Handwheel Assembly Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 134-033059 Description: Bearing Cap Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 111-034054 Description: Adjustment Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 111-035028 Description: Screw, Soc. Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 111-033064 Description: Protractor Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 111-033072 Description: Trunnion Protractor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-991414 Description: Nut, Hex. 3/4-16NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 111-034039 Description: Trunnion Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 111-034021 Description: Stud 3/4" x 3 1/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 111-031118 Description: Wrench Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 111-031092 Description: Trunnion Cradle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-982967 Description: Screw, Soc. Hd. Cap 1/2-13NC x 1 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 135-004455 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-059189 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 134-134022 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-980680 Description: Screw, Hex. Hd. Cap 1/2-13NC x 1 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-001172 Description: Keeper Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 134-034057 Description: Stud Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 134-033166 Description: Filler Plate Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Items Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: 40 Part Number: 091-020115 Description: Trunnion Wrench Socket 1" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 134-035021 Description: Trunnion Wrench Extension Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 134-035021 Description: Trunnion Wrench Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-027391 Description: Trunnion Wrench Socket 1 1/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-027433 Description: Spacer on Secondary Table (3613-1 & 3613-2) Units Per Assembly: 1 Availability: Call For Info Price:
