Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

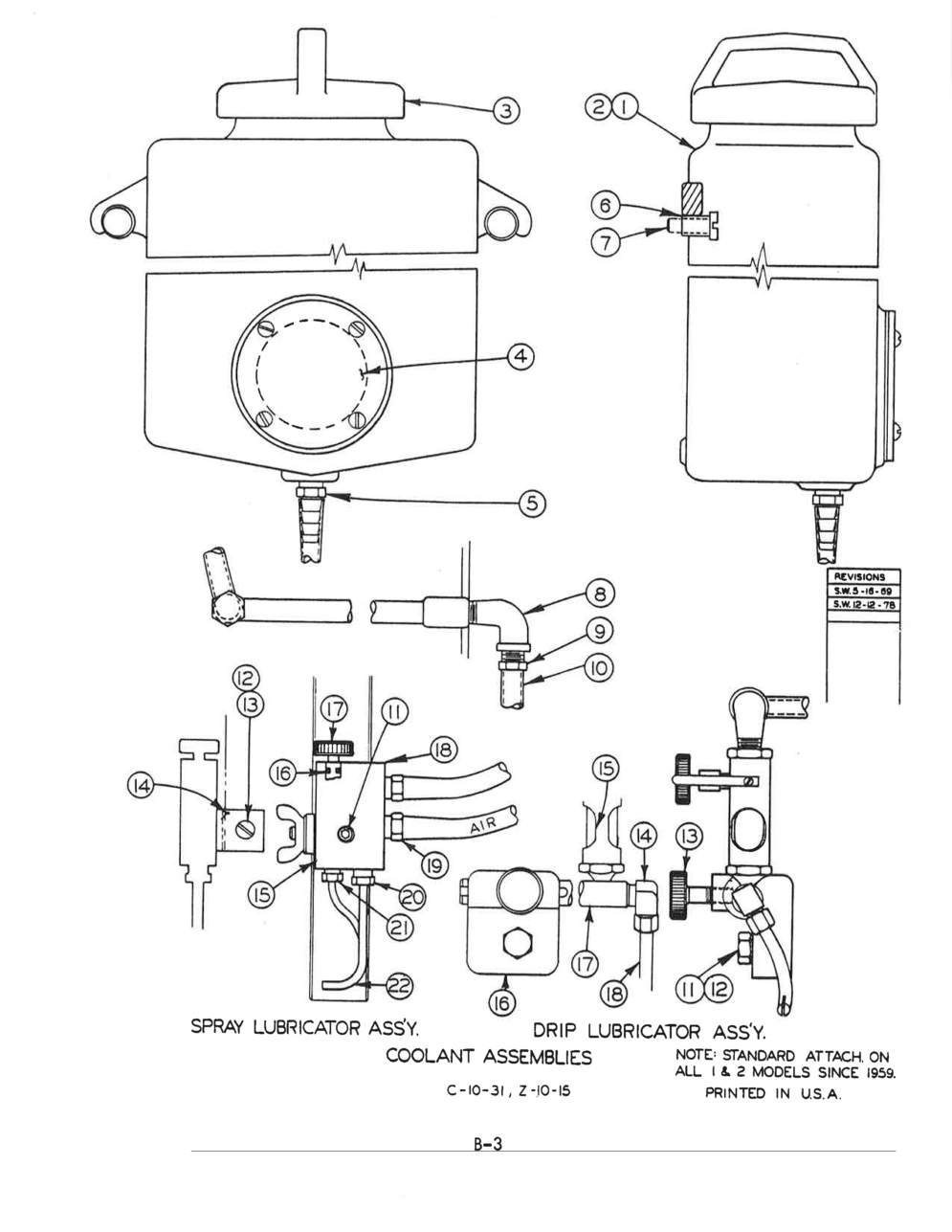

Page Code: C-10-31

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-552282 Description: Spray Lubricator (1612-1, 2612-1 & 3613-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-549551 Description: Spray Lubricator (1613-2, 3613-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-549585 Description: Spray Lubricator (2613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-550344 Description: Spray Lubricator (2613-23 Speed Machines Only) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-598970 Description: Mist Coolant Assembly (1613-2, 3613-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-457078 Description: Coolant Tank Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-548918 Description: Tank Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-295072 Description: Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-086553 Description: Window Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-018762 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-990234 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-045207 Description: Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-971382 Description: Plastic Tube 3/8" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-982215 Description: Screw, Soc. Hd, Cap 10-24NC x 5/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-989038 Description: Screw, Rd. Hd, Mach. 1/4-28NF x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993212 Description: Washer, Lock 1/4" Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 091-024430 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-023309 Description: Bracket (For 2613-2 with 3 Speeds) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024638 Description: Bracket (For 2613-2 with3 Speeds) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-025379 Description: Manifold Assembly (1612-1, 2612-1, 3613-1, 1613-2, 3613-2) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 091-025387 Description: Manifold Assembly (2613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 091-023671 Description: Manifold Assembly (2613-2 3 Speeds) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 090-383035 Description: Coolant Manifold Assembly (Use on #090-598970) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 090-383043 Description: Coolant Manifold Assembly (Use on #090-598970) (Extra Work Height) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-030198 Description: "O"-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-019455 Description: Needle Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-297409 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 135-068971 Description: Compression Bushing (Used on Manifold Assemblys #091-025379 & #091-025387 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-148255 Description: Compression Bushing (Used on Manifold Assembly #091-023671) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-144460 Description: Sleeve(Used on Manifold Assembly's #091-025379 & #091-025387) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-068963 Description: Sleeve(Used on Manifold Assembly #091-023671) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 135-068997 Description: Compression Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-148255 Description: Sleeve (Used on Manifold Assembly #091-025379) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-068989 Description: Sleeve (Used on Manifold Assembly #091-025387 & #091-023671) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-023689 Description: Tube Assembly (Used on Assembly 1091425379) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-023200 Description: Liquid Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024448 Description: Air Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024570 Description: Tube Assembly (Used on Assembly #091-025387) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024596 Description: Liquid Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091.-024588 Description: Air Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024604 Description: Tube Assembly (Used with Assembly #091-023671) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024612 Description: Liquid Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-024620 Description: Air Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-179029 Description: Hose Clamps (Not Shown) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-970962 Description: Air Hose 5/8" O.D. x 3/8" I.D. (Not Shown) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-549528 Description: Sow Lubricator (Drip) (1612-1, 2612-1, 3613-1, 1613-2, 3613-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-549577 Description: Saw Lubricator (Drip) (2613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-457078 Description: Coolant Tank Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-548918 Description: Tank Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-295072 Description: Cop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-086553 Description: Window Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-018762 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-990234 Description: Screw, Truss Hd, Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-045207 Description: Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-160011 Description: Barbed Inserts Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-108960 Description: Plastic Tube Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-980268 Description: Screw, Hex, Hd. Cap 5/16-18NC x 5/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-993238 Description: Washer, Lock 5/16" Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 134-174010 Description: Thumbscrew Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-140632 Description: Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 105-275077 Description: Sight Feed Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 105-271027 Description: Post Holder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 105-274039 Description: Adjustable Slide Rod (Used on Assembly #090-549528) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-109593 Description: Adjustable Slide Rod (Used on Assembly #090-549577) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 105-273015 Description: Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-195090 Description: Jiffy Strap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-296138 Description: Lubricator Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
