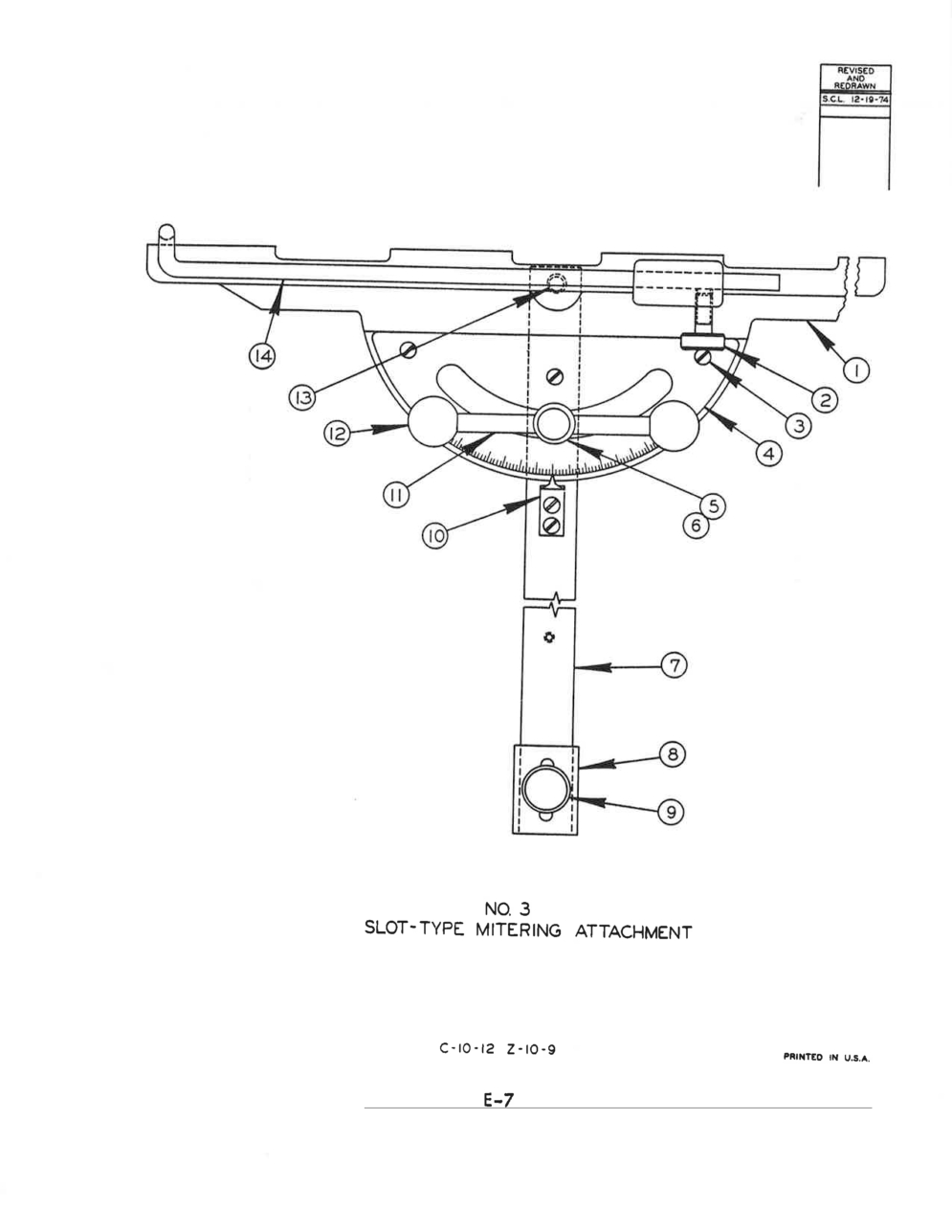

Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

Page Code: C-10-12

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 50663 Description: No. 3 Slot-Type Mitering Attachment Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 51496 Description: Mitre Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 34-17401 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 198867 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 35-1614 Description: Protractor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 11635 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 199265 Description: Washer 7/16 Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 22956 Description: Slide Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 4709 Description: Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 4708 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 11633 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 11634 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 14-115183 Description: Knob Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 14-473 Description: Dowel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 35-1976 Description: Gage Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: NOTE: This Assembly fits all machines with 1 inch filler plate slot. Units Per Assembly: Availability: Call For Info Price:
