Exploded View Parts Ordering: 3613-2_151

3613-2 151 Online Parts Manual

Serial No: 151-59101

Download PDF Version

Return to manuals

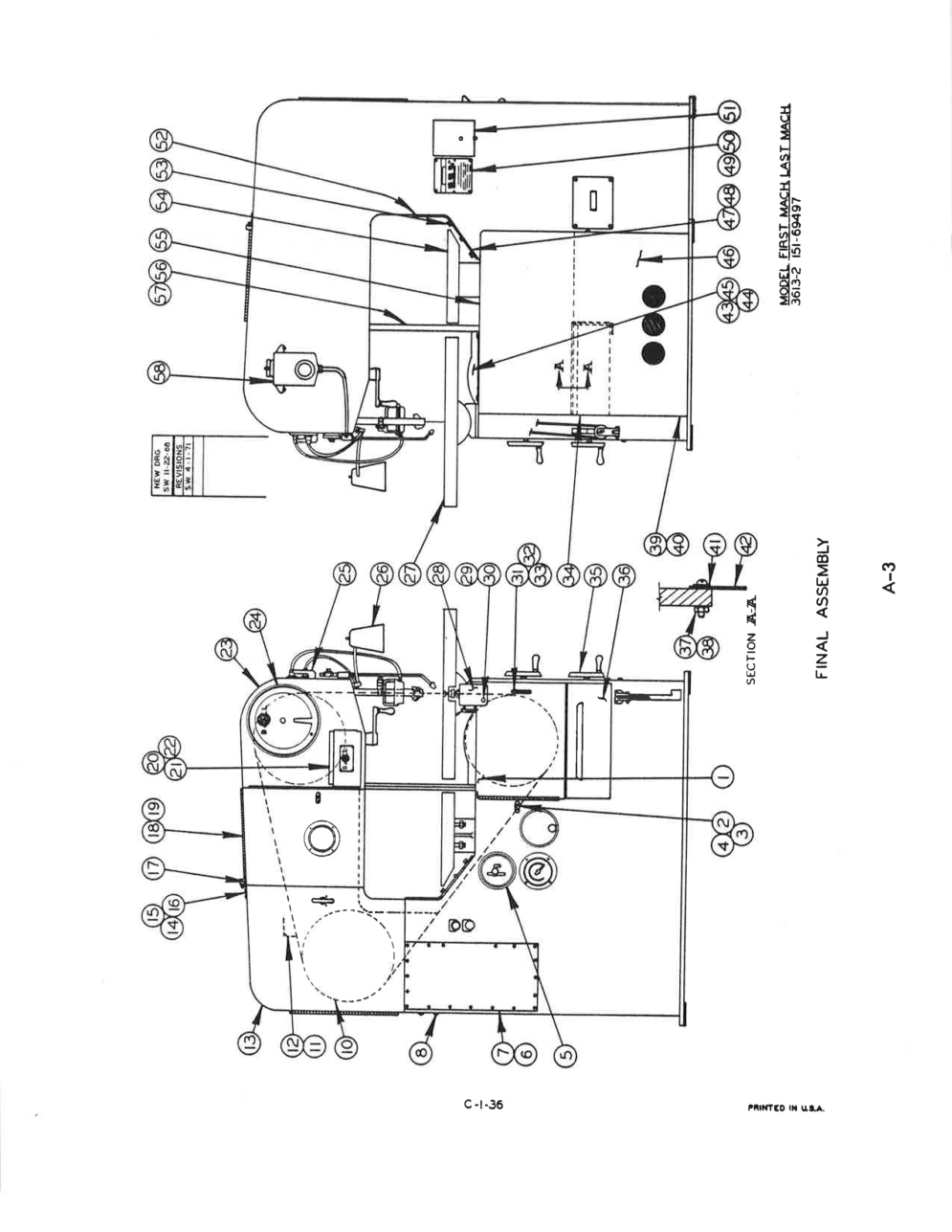

Page Code: C-1-36

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 54555 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 27407 Description: Wheel Brush Assembly Units Per Assembly: 1 Availability: In Stock Price: $352.67
Index No Ref.: 2 Part Number: 6064 Description: Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 12235 Description: Door Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: Comm. Description: Washer, Lock #10 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 49908 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 401003 Description: Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: Comm. Description: Screw, Truss Hd. Mach 1/4-20NC x 3/8 Units Per Assembly: 19 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 7436 Description: Plug Button Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 43164 Description: Third Wheel Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 6180 Description: Cover Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: Comm. Description: Screw, Rd. Hd. Mach #6-32NC x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 54721 Description: Frame Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: Comm. Description: Nut, Hex. #10-24NC Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 120141 Description: Bracket Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: Comm. Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: Stk #.061 Description: Felt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 38222 Description: Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 1019 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: Comm. Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 401519 Description: Card Holder Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: Comm. Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 500390 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 401461 Description: Job Selector Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 23414 Description: Upper Door Latch Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 109068 Description: Lamp Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: Ref. Description: Table and Trunnion Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 41101 Description: Chip Baffle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 5-02401 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: Comm. Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 16842 Description: Lower Door Latch Assembly (See Detail) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 5-02101 Description: Door Latch Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: Comm. Description: Screw, Soc. Hd. Set 1/4-20NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: Comm. Description: Screw, Truss, Hd. Mach 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 59331 Description: Weight Power Feed Ass'y (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 44798 Description: Chip Box Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: Comm. Description: Screw, Rd. Hd. Mach. #8-32NC x3/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: Comm. Description: Nut, Hex #8-32 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 3325 Description: Plug Button Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 40 Part Number: 13552 Description: Plug Button Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 105696 Description: Clamp Strip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 105695 Description: Seal Strip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 41076 Description: Lower Wheel Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: Comm. Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: Comm. Description: Washer, Lock 1/4 Std Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 54720 Description: Rear Cover Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 14184 Description: Cover Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: Comm. Description: Screw, Bdg. Hd. Selftap #4 x 5/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 38890 Description: DoALL Data Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: Comm. Description: Screw, Drive #4 Pk Type U 1/4 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: Ref. Description: Electrical Diagram and Stock List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 8688 Description: Cover Plate Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 11-02401 Description: Thumbscrew Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 50369 Description: Secondary Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 105697 Description: Seal Strip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 28825 Description: Blade Guard Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: Comm. Description: Screw, Oven Hd. Mach 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: Ref. Description: Mist Coolant Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 11-05509 Description: Pipe Plug (Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Ref. Description: Hydraulic Schematic (Hyd. Brakes) Units Per Assembly: Availability: Call For Info Price:
