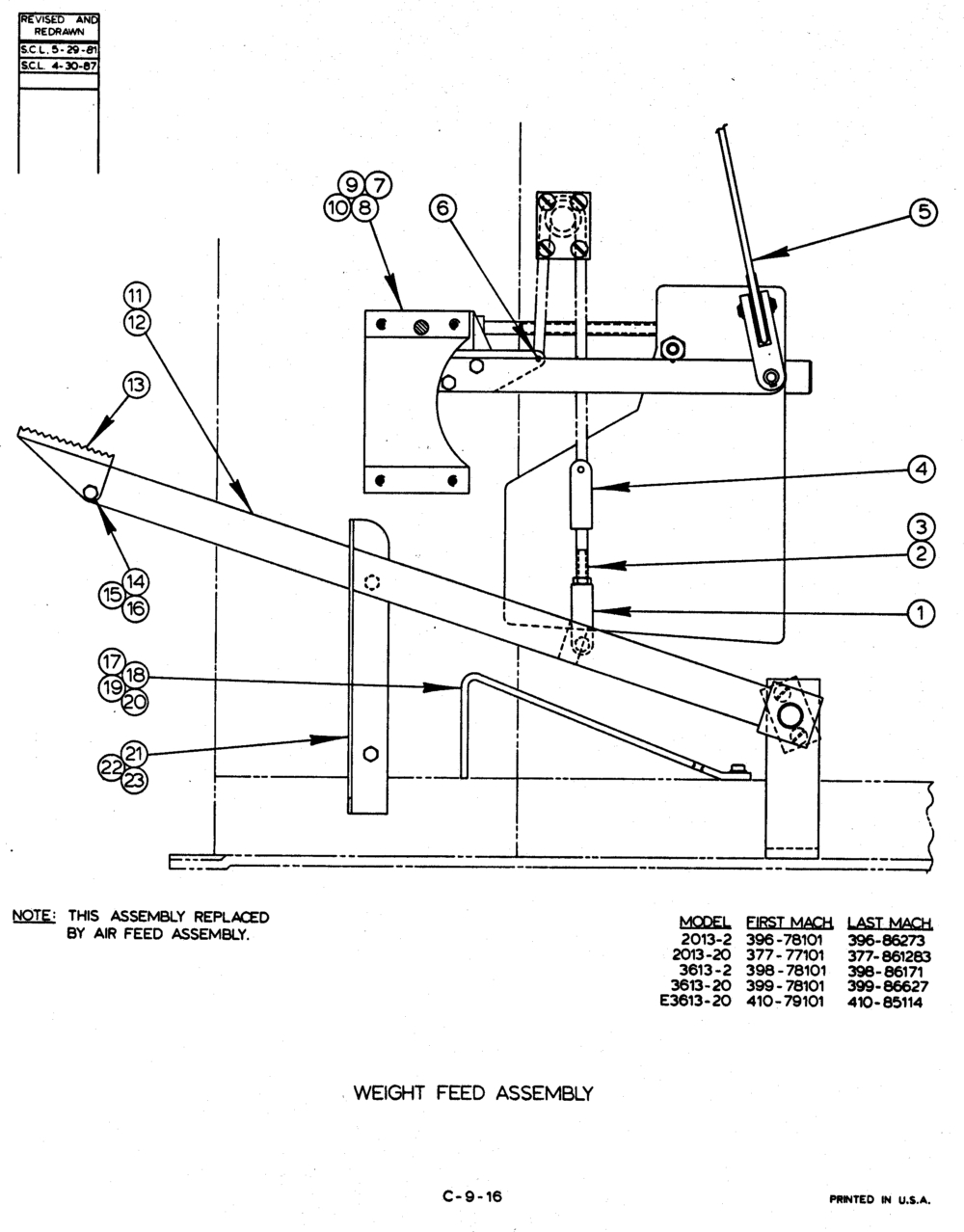

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-9-16
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 085-073476 | Description: Weight Feed Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 105-133169 | Description: Anchor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980508 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 135-050128 | Description: Release Lever Chain Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 105-135107 | Description: Chain | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 105-133144 | Description: Anchor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-995472 | Description: Rivet, Rd. Hd. 3/16 x 5/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 135-053221 | Description: Carrier and Cable Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 105-134118 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-447962 | Description: Power Feed Hinge Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-042599 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 11 | Part Number: 093-028520 | Description: Release Lever Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-139965 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 105-131130 | Description: Foot Pedal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-980128 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-991158 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 17 | Part Number: 094-010352 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-980292 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-992628 | Description: Washer, Flat 5/16 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 093-013423 | Description: Catch Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-980250 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-991224 | Description: Nut, Hex.5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
