Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-7-20
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

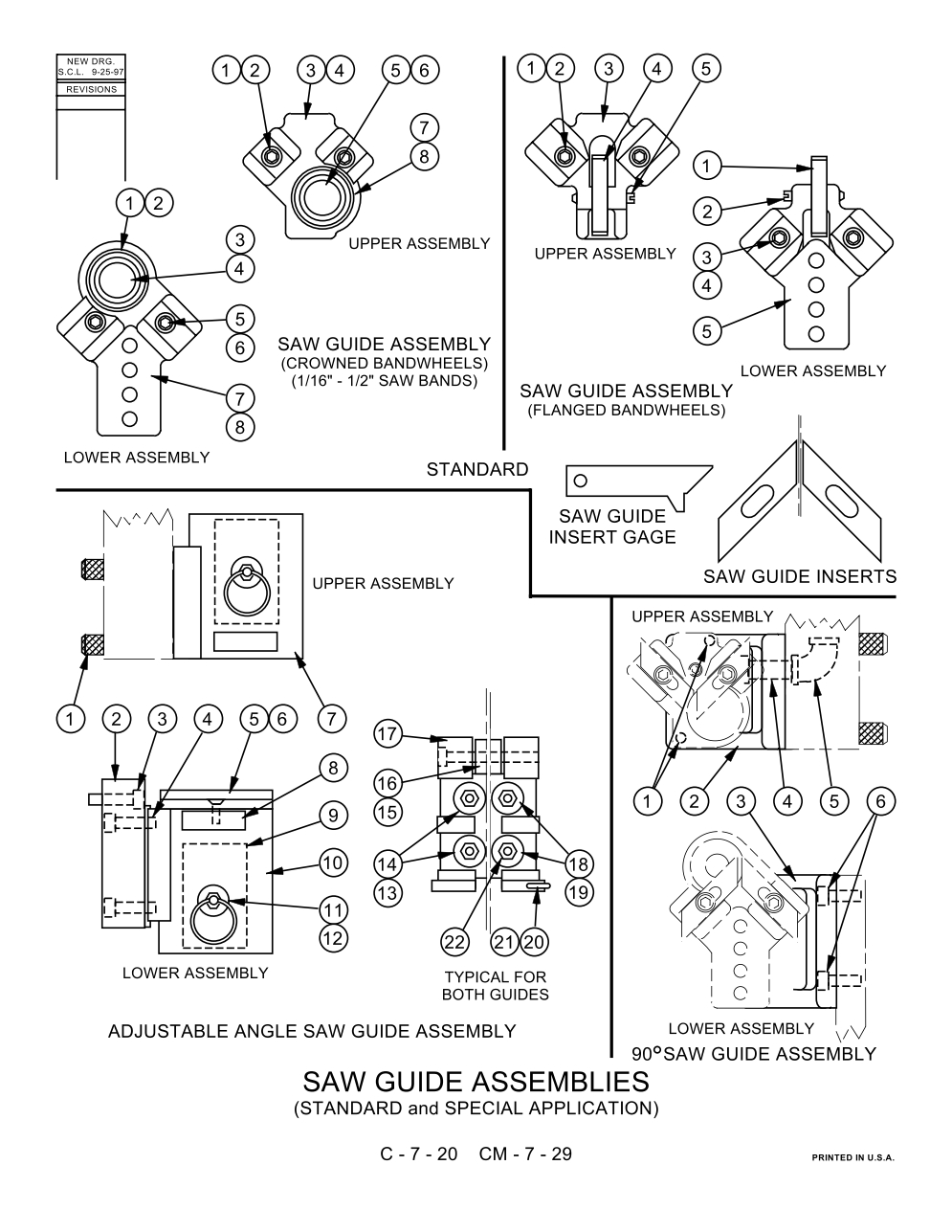

| Index No Ref.: | Part Number: | Description: HIGH SPEED SAW GUIDES (STANDARD FOR CROWNED BANDWHEELS) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-280819 | Description: Upper Saw Guide Assembly (High Speed) (1/16"-1/2") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 090-279811 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-373399 | Description: Hole Plug (If Supplied) | Units Per Assembly: 1 | Availability: In Stock | Price: $9.03 |
| Index No Ref.: 5* | Part Number: 090-184151 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6* | Part Number: 091-768457 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7* | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 8 | Part Number: 090-115411 | Description: Retaining Ring (If Supplied) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: Ref. | Part Number: 090-280827 | Description: Lower Saw Guide Assembly (High Speed) (1/16"-1/2") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1* | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 2 | Part Number: 090-115411 | Description: Retaining Ring (If Supplied) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 3* | Part Number: 090-184151 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4* | Part Number: 091-768457 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 7 | Part Number: 090-279837 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-373399 | Description: Hole Plug (If Supplied) | Units Per Assembly: 1 | Availability: In Stock | Price: $9.03 |
| Index No Ref.: | Part Number: | Description: *NOTE: When ordering any of the marked items, ordering #090-853698 - Bearing Replacement Kit is recommended. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: STANDARD FOR FLANGE BANDWHEELS | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 093-048437 | Description: Upper Saw Guide Assy (Carbide Insert) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 094-064300 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-212100 | Description: Back-Up Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $85.48 |
| Index No Ref.: 5 | Part Number: 091-402040 | Description: Pivot Bolt | Units Per Assembly: 1 | Availability: In Stock | Price: $48.24 |
| Index No Ref.: Ref. | Part Number: 093-048445 | Description: Lower Saw Guide Assy (Carbide Insert) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-212100 | Description: Back-up Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $85.48 |
| Index No Ref.: 2 | Part Number: 091-402040 | Description: Pivot Bolt | Units Per Assembly: 1 | Availability: In Stock | Price: $48.24 |
| Index No Ref.: 3 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 5 | Part Number: 094-067683 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: 90 Degree SAW GUIDE ASSEMBLY | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 094-166519 | Description: 90 Degree Saw Guide Assy (26" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-448044 | Description: 90 Degree Saw Guide Assy (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 090-275975 | Description: 90 Degree Upper Angle Saw Guide Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-275966 | Description: 90 Degree Lower Angle Saw Guide Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-116583 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 135-036473 | Description: 90 Degree Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-982397 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-178531 | Description: Center Plate (Oval) (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-292616 | Description: Center Plate (Round) (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-163714 | Description: Chip Baffle (If Supplied) (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333724 | Description: Thumb Screw (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: ADJUSTABLE SAW GUIDE ASSEMBLIES | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 082-050253 | Description: Adjustable Angle Saw Guide Set (26" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 082-051145 | Description: Adjustable Angle Saw Guide Set (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-185000 | Description: Upper Saw Guide Holding Screw. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 093-197044 | Description: Adaptor Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 091-982413 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 092-050244 | Description: Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-987396 | Description: Screw, Flat Hd. Mach. #6-32NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 094-175254 | Description: Upper Saw Guide Housing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 092-058189 | Description: Label (Logo) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 092-058023 | Description: Label (Warning) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 094-175221 | Description: Lower Saw Guide Housing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-050202 | Description: Spring Plunger | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 092-053990 | Description: Split Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-050228 | Description: Roller Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 093-199792 | Description: Eccentric Stud | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 092-050228 | Description: Roller Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 135-003283 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 094-175247 | Description: Upper Saw Guide | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-175239 | Description: Lower Saw Guide | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-050228 | Description: Roller Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 093-201739 | Description: Concentric Stud | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 092-058171 | Description: Sleeve Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-042193 | Description: Spring Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-176553 | Description: Locknut #10-24NC | Units Per Assembly: 4 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 092-049097 | Description: Gage | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-199396 | Description: Saw Band Guard Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-199308 | Description: Guard Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-169340 | Description: Sliding Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333724 | Description: Thumb Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-175925 | Description: Center Plate (26" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-201285 | Description: Center Plate (30" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT GAGE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-083203 | Description: Insert Gage (.025) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: 113-083034 | Description: Insert Gage (.032) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: 113-093075 | Description: Insert Gage (.035) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-085067 | Description: Box (For Inserts and Gages) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT SELECTION | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: STEEL | Description: SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044991 | Description: 1/16" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044983 | Description: 3/32" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044975 | Description: 1/8" | Units Per Assembly: | Availability: In Stock | Price: $66.37 |
| Index No Ref.: | Part Number: 090-044967 | Description: 3/16" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-044959 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-039603 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039595 | Description: 1/2" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039587 | Description: 5/8" | Units Per Assembly: | Availability: In Stock | Price: $20.14 |
| Index No Ref.: | Part Number: 090-039579 | Description: 3/4" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: 090-039561 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: CARBIDE | Description: SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-417593 | Description: 1/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-161688 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $188.60 |
| Index No Ref.: | Part Number: 090-161704 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $186.26 |
| Index No Ref.: | Part Number: 090-132911 | Description: 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-058941 | Description: 5/8" | Units Per Assembly: | Availability: In Stock | Price: $269.22 |
| Index No Ref.: | Part Number: 090-132929 | Description: 3/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-089822 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $224.32 |
